TBTGZQ-MC Automatic Consolidometer is an advanced geotechnical testing apparatus designed to determine critical soil mechanics parameters, including the coefficient of compressibility (av), modulus of resilience (ES), coefficient of consolidation (CV), and preconsolidation pressure (PC).

1.Test controlled by integrated microcomputer controller;

2.Built-in multi-channel acquisition device;

3.Various size consolidation cells are available;

4.4 sets of LED status indicator lights to display the instrument's working status.

Consolidated cell	Ø50mm, optional Ø63.5, Ø100mm or Ø150mm
Shear speed	0.00001~9.99999mm/min
Maximum axial force	10kN
Load cell capacity	10kN
Load cell accuracy	+/-0.1%F.S
Data acquisition instrument	Dual channels
Communication interface	usb3.0
Displacement sensor maximum range	12.7mm
Displacement sensor resolution	0.001mm
Acquisition & processing software	It automatically obtains consolidation test parameters such as soil compressibility coefficient av, resilient modulus ES, consolidation coefficient Cv, and preconsolidation pressure Pc. Post-processing functions can generate time square root curves, time logarithmic curves, e-p curves, e-lgp curves, CV-P(T90) curves, CV-P(T50) curves, and H-P curves.
Size	394x290x515mm
Weight	29kg
Power supply	220VAC, 50Hz

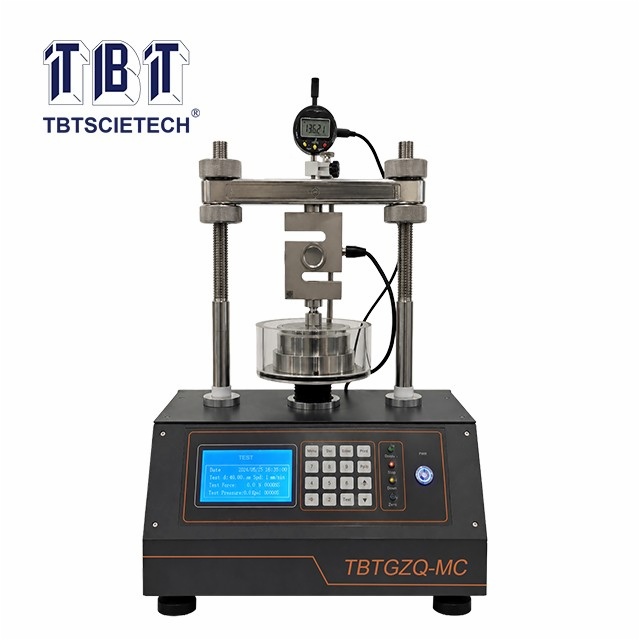

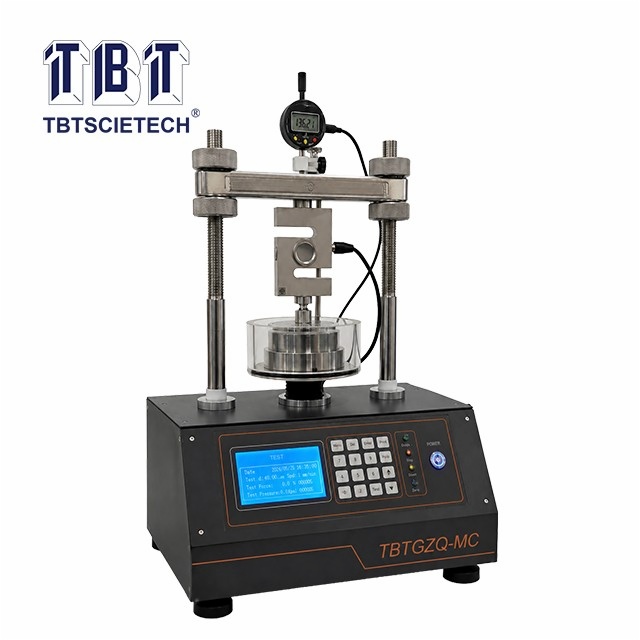

Automatic Consolidometer TBTGZQ-MC
