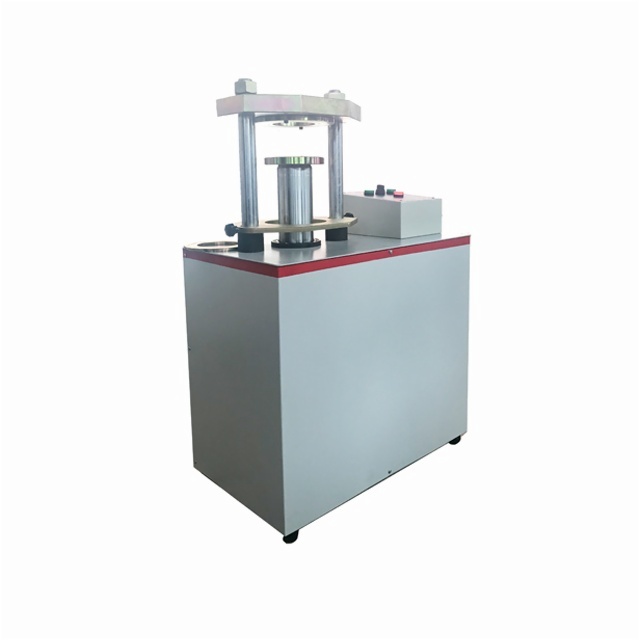

    Electric hydraulic Multi-function specimen Demolding Ejector CH-300C (20T)

    Electric hydraulic Multi-function specimen Demolding Ejector
    Item Code:CH-300C (20T) Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Application range:
    CH-300C multifunctional hydraulic demolding machine is suitable for ejection of geotechnical compaction specimens, Marshall compaction specimens, and unconfined compression specimens.

    The hydraulic power unit adopts G-gear-pump integrating design, configuring with rigid frame structure improves the safety performance.

    The machine features in compact structure, large ejecting force, easy operation, stability and reliability.



    Technical Specification:



    1. Rated voltage:

    AC  220V 50Hz

    2. Electric motor:

    AC 380V/ Single-phase 2.2kW

    3. Design pressure:

    16MPa

    4. Electric magnetic valve:

    AC 220V two-way solenoid valve

    5. Fuel tank capacity:

    rated capacity 8L

    6. Lifting rate:

    90—150mm/min

    7. Demoulding specifications:

        Φ50 (mainly used for lime soil and unconfined specimens)

        Φ100, Φ150 (mainly used for soil compaction and unconfined specimens)

        Φ101.6, Φ152.4 (mainly used for Marshall compaction test piece)

        Other special specifications can be customized

    8. Maximum demoulding height:

     240mm

    9. Dimensions:

    690mm×410mm×1020mm
