Electric Soil Compactor with Touch Screen Controller Manufacturer

TBTSJS-3SH is new design electric soil compactor with touch screen controller and servo motor.

It is updated on the basis of chain transmission and gear transmission is adopted to avoid the phenomenon of lost hammer and failure to lift the hammer. It provides automatic counting, control, shutdown, cycle work, etc.

ASTM D698, ASTM D1577, ASTM D1883, AASHTO T99, AASHTO T180, AASHTO T193, BS 1377-4, BS 1990,

BS 1994, NF P94-093, NF P94-066

1. Device equips with touch screen controller for setting compaction & per cycle times;

2. Support to make different size specimen in one machine via changing different mould and rammer;

3. Soundproof lining to reduce noise(optional configuration).

Type	Referring standard	Rammer bottom diameter (mm)	Rammer weight (kg)	Drop height (mm)	Size
Type	Referring standard	Rammer bottom diameter (mm)	Rammer weight (kg)	Drop height (mm)	Mould diameter (mm)	Mould height (mm)	Mould volume (cm³)	Collar height (mm)
Light	ASTM AASHTO	51	2.5	305	102	116	947.4	50
Heavy	ASTM AASHTO	51	4.5	457	152	116	2103.9	50
Light	BS	50	2.5	300	100	127	997	50
Heavy	BS	50	4.5	450	152	127	2303	50
Light	FR	51	2.5	305	102	116	947.4	50
Heavy	FR	51	4.5	457	152	152	2756	50
Compaction Speed		10~30 times/minute, 8 compactions per circle, one compaction in the middle (the number of compaction per circle is adjustable)
Compaction Time		0~99 times
Product Size		530x400x1470mm
Power Supply		220V, 50/60Hz

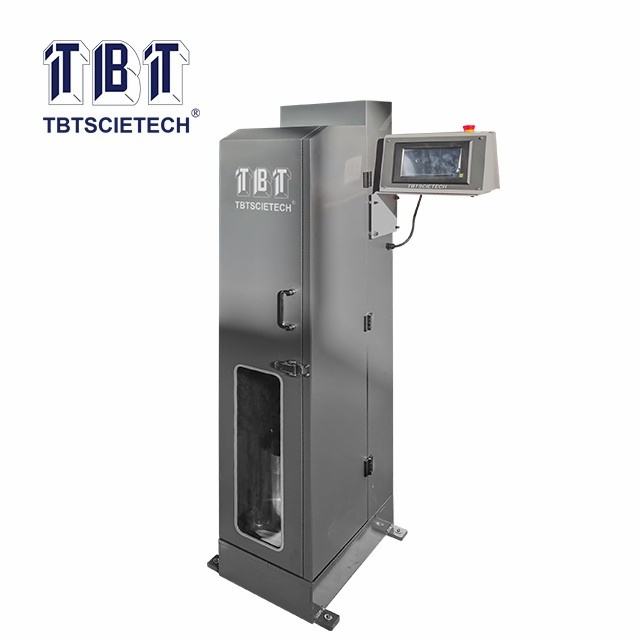

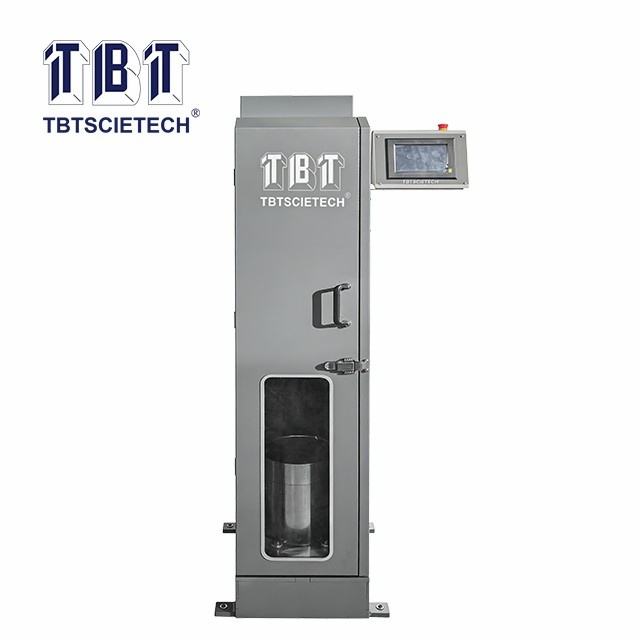

Electric Soil Compactor with Touch Screen Controller TBTSJS-3SH
