Automatic Softening Point Tester (Ring and Ball Tester) Manufacturer

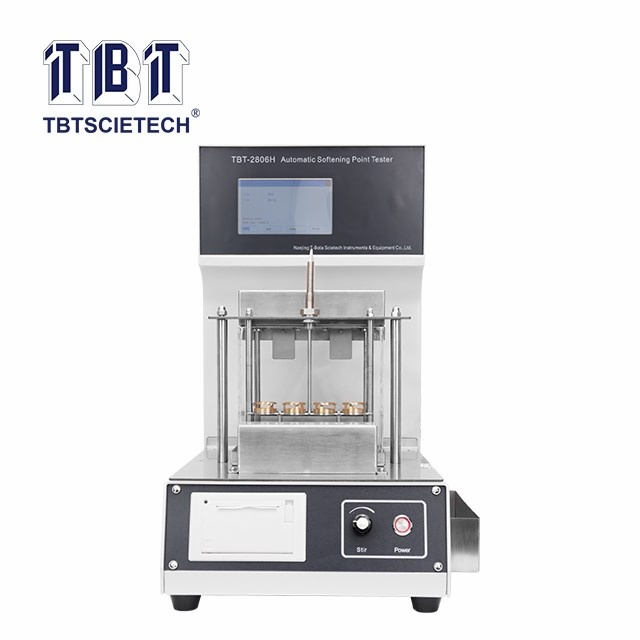

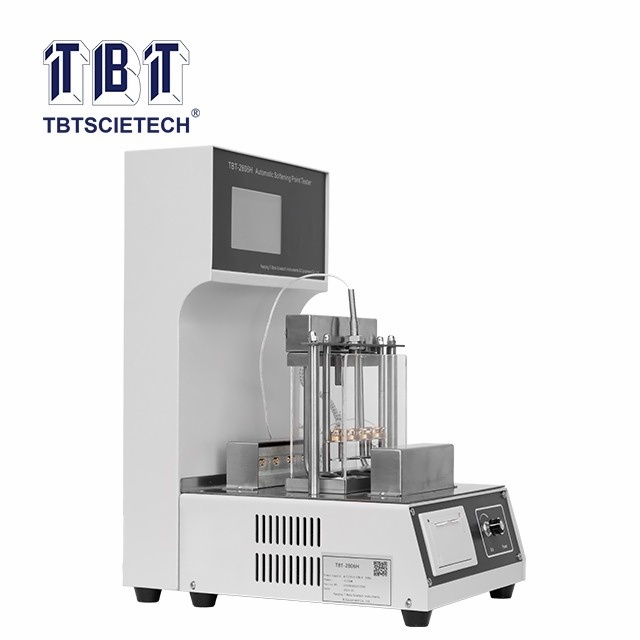

Automatic Softening Point Tester (Ring and Ball Tester) TBT-2806H

Enlarge

Item Code:TBT-2806H Features:TBT-2806H is used to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various of asphalts.

Description
Referring Standard
Features
Technical Specification

TBT-2806H is used to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various of asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

ASTM D36

1.Adopts advanced technologies such as computer intelligent control, laser automatic detection, LCD touch screen and micro printer;

2.It has linear temperature heating, uniform bath stirring and accurate test results;

3.It can do four samples or two samples at a time;

4.It has functions of automatic completion of sample testing and automatic printing of test results, it is an automatic and intelligent testing instrument for asphalt softening point with high degree of automation, fast and convenient testing, accurate and reliable testing results.

Power supply	AC(220V±10%)V, 50Hz
Measurement range	Heating medium: distilled water(softening point ≦80℃) +5℃~+80℃ Heating medium: glycerin (softening point > 80℃) 32℃~160℃
Temperature resolution	0.1℃
Test sample quantity	Two or four samples
Heating rate	It will be adjusted to (5.0±0.5)℃/min automatically after three minutes
Heating power	600W
Computer port	RS 232C communication port
Cubage of beaker	1000ml

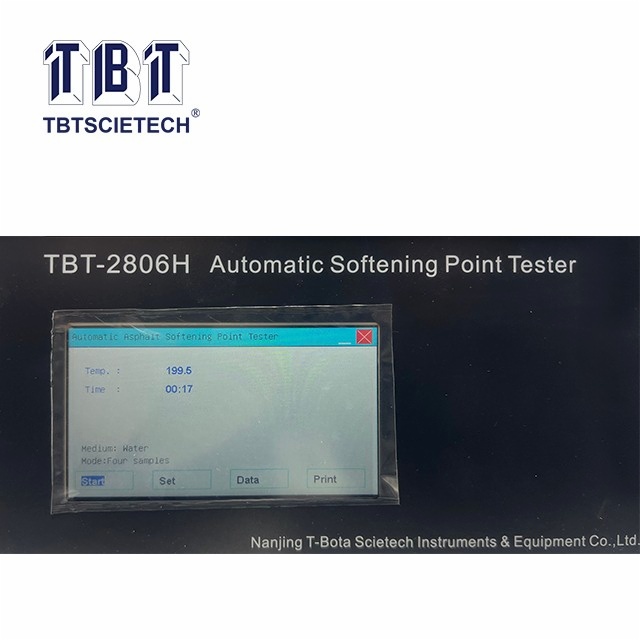

Test result	Touch LCD screen shows results and printer to print
Ambient temperature	15℃~35℃
Relative humidity	≤85%
Maximum power consumption	700W
Dimension	400mm×300mm×490mm (LWH)

Automatic Softening Point Tester (Ring and Ball Tester) TBT-2806H
