Semi-auto Softening Point Tester (Ring and Ball softening) Manufacturer

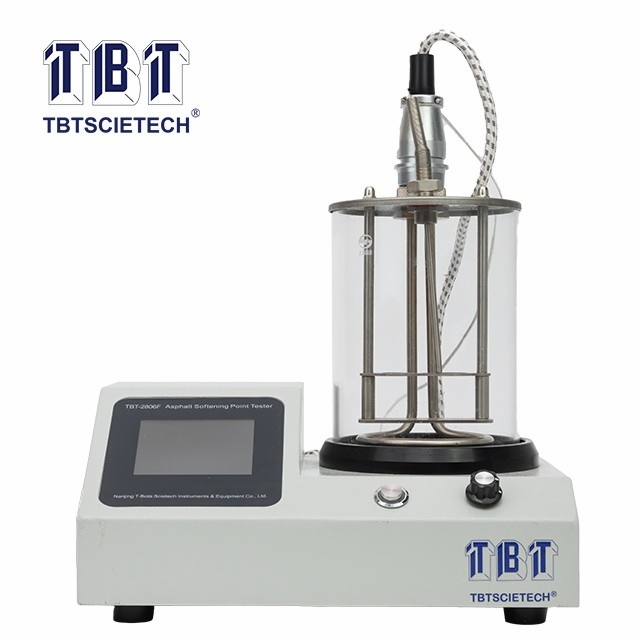

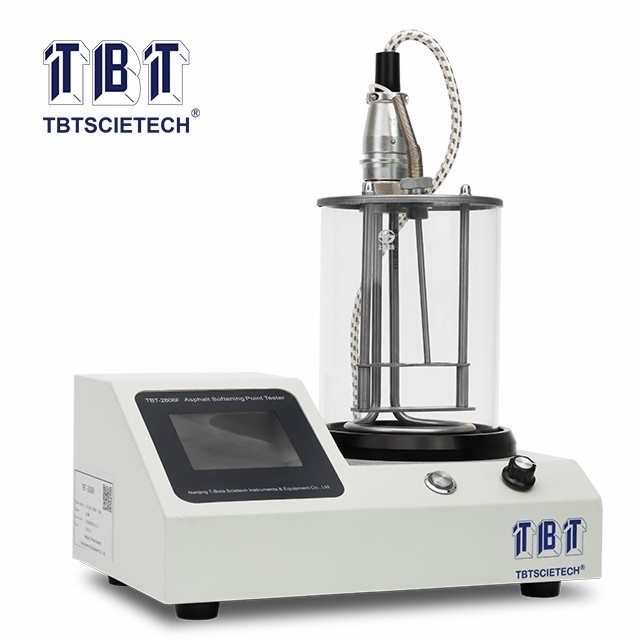

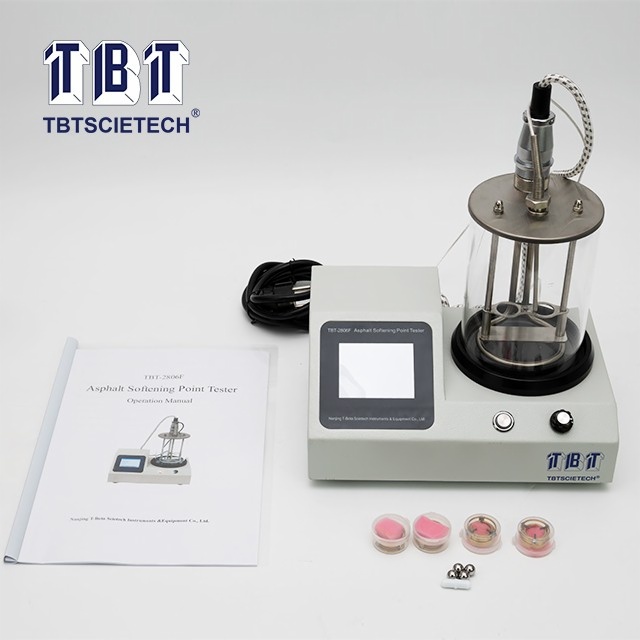

Semi-auto Softening Point Tester (Ring and Ball softening) TBT-2806F

Enlarge

Item Code:TBT-2806F Features:TBT-2806F is made as per Standard Test Method for Softening Point of Petroleum Asphalt, also accords to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

Description
Referring Standard
Features
Technical Specification

TBT-2806F is made as per Standard Test Method for Softening Point of Petroleum Asphalt, also accords to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

ASTM D36

1. Adopts microcomputer control, true color touch screen, Linear heating and automatic stirring. Easy to operate.

2. Can test two samples at the same time. After the test, the average value is automatically generated.

The instrument buzzes and automatically tests the results. The results are stable and reliable.

Power supply	220VAC 50HZ
Measurement range	32 ℃～160 ℃ glycerin (softening point >80 ℃)
Measurement range	5 ℃～80 ℃ distilled water(softening point ≤80 ℃)
Stirrer	the stirring speed can be adjusted continuously
Heating power	600W
Beaker cubage	1000ml
Heating rate	It will be adjusted to (5.0±0.5)℃/ min automatically after 3minutes
Maximum power consumption	850W
Test sample	2 samples
Dimension	270mm×200mm×330mm(LWH)

Semi-auto Softening Point Tester (Ring and Ball softening) TBT-2806F
