Automatic Softening Point Tester (Ring and Ball Tester) Manufacturer

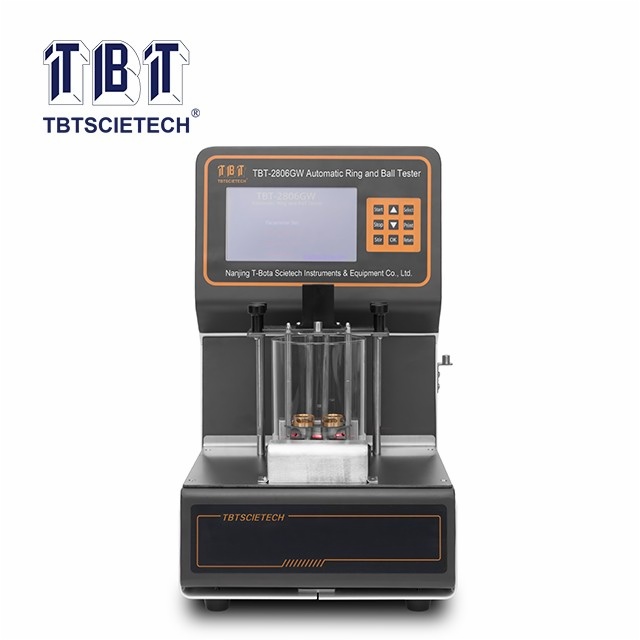

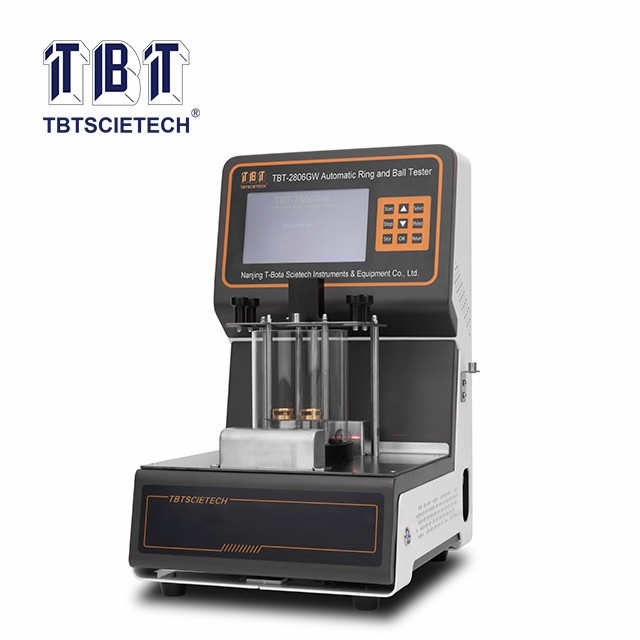

Automatic Softening Point Tester (Ring and Ball Tester) TBT-2806GW

Enlarge

Item Code:TBT-2806GW Features:TBT-2806GW is designed and made referring to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

Description
Referring Standard
Features
Technical Specification

TBT-2806GW is designed and made referring to ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

It is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt and various asphalts.

ASTM D36, EN 1427

1. The heating rate is in accuracy for 5±0.5℃/min;

2. Good temperature uniformity via magnetic stirring;

3. Fully automatic measurement and record test data;

4. Two samples can be tested simultaneously without affecting each other;

5. Temperature correction and temperature compensation parameters are set to ensure that the temperature display is consistent with the temperature measurement of the thermometer during the heating process;

6. It can be used for softening point detection in both low and high temperature sections;

7. Build in printer for printing test report.

Heating rate	5±0.5℃/min
Heating power	1kW
Steel ball mass	3.5±0.05g
Steel ball diameter	Ø9.53mm
Ambient temperature & relative humidity	5~35℃, ≤80%
Temperature range	5~180℃
Power supply voltage	220V, 50Hz
Rated total power	0.8kW
Dimensions	360×370×560mm

Automatic Softening Point Tester (Ring and Ball Tester) TBT-2806GW
