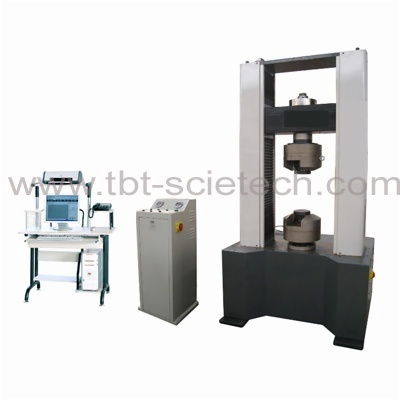

Computer Control Electronic Universal Testing Machine Manufacturer

Description
Referring Standard
Features
Technical Specification

Mainly used to test mechanical properties for metals, nonmetals and composites;

Adopting precise auto control and data acquisition system to realize fully digital adjustment to data acquisition and control process. During tensile test, it can test max. bearing tensile, compression, tensile strength, deformation, elongation and other technical specifications

After tensile test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be connected with printer to print test reports.

Max. load	500/600KN
Effective measuring range	0.4%-100% of max. load
Load precision and resolution	1/500000 within±1% of indicating value
Deformation precision	within±1% of indicating value
Test speed	0.001mm/min-200mm/min, stepless speed regulation (speed ratio 1/500000)
Speed precision	within±1% of indicating value
Moving stroke of cross head	1200mm
Effective span	660mm
Clamping range of round specimen	Φ4-Φ20mm
Clamping range of flat specimen	0-14mm
Measuring precision of displacement	within±1% of indicating value
Power supply	AC 380V±10%, 2KW
Dimension	126011502560mm
N.W.	Approx. 3100KG

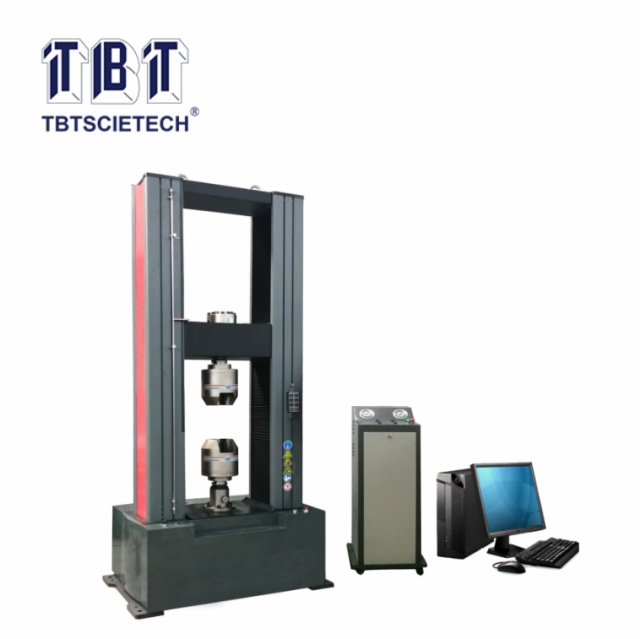

Computer Control Electronic Universal Testing Machine WDW-500/600
