Computerized Electronic Testing Machine for Geotextile Manufacturer

Computerized Electronic Testing Machine for Geotextile TBTWDW-5/10/20/30/50/100T

Item Code:TBTWDW-5/10/20/30/50/100T Features:

Description
Main Specifications

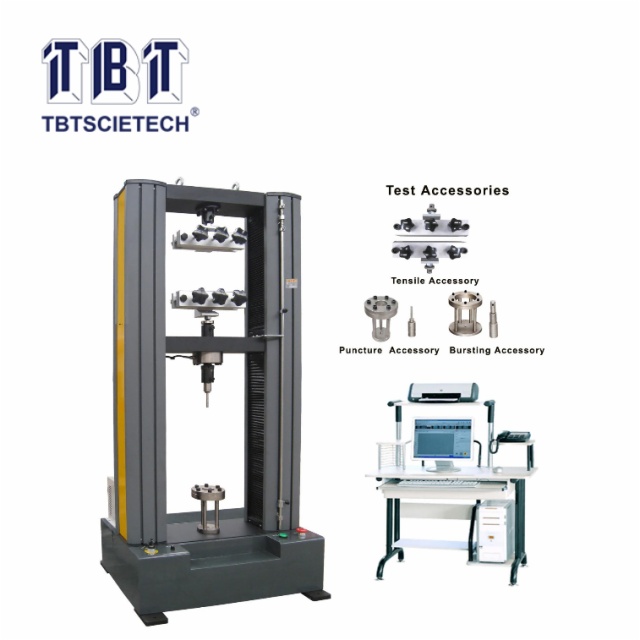

Accessories

Adopting aluminum alloy cover, with attractive streamline structure, mainly used to test puncture, bursting, tensile, tear, grad tests and other mechanical properties for geotextile, geogrid, geomembranes and related products.

With precise automatic control and data acquisition system to realize full digitalization adjustment to data acquisition and control process.

During test, the bearing load, compression deformation and other technical indexes can be measured.

After tensile test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be connected with printer to print test reports.

Max. Test force	5/10/20/30/50/100KN
Load class	Class 0.5
Measuring range of load	0.4%-100%
Relative error of indicating value	Within ±1.0%
Load resolution	1/±300000F.S (with unchanged resolution during the whole test)
Measuring range of deformation	0.2%-100%
Adjusting range of load rate	0.005%-5%FS/S
Control precision of load rate	Within ±1%
Adjusting range of deformation rate	0.005-5%FS/S
Control precision of deformation rate	Within ±1%
Adjusting range of displacement rate	0.005-500mm/min
Control precision of displacement rate	Within ±0.2% of the set value
Stroke of cross head	1000mm
Span between columns	400mm		500mm
Control mode	Computer control
Power supply	1ph, 220V, 50Hz
Power (W)	400W	750W		1500W
Dimension (LWH) (mm)	7305501650	7807001750		8806601950
Weight (Kg)	Approx.240kg	Approx.380kg		Approx.240kg
