Concrete Rheometer Manufacturer

TBTPCR-300 concrete rheometer measures the fundamental rheological (flow) properties of fresh concrete. It provides a scientific method to evaluate concrete workability, making it ideal for use across all stages of concrete production and construction.

1. Robust frame design for extended service life;

2. Multi-functional testing capabilities;

3. Rapid and high-precision testing;

4. User-friendly operation with automated workflows;

5. Enhanced accuracy in determining material workability;

6. Optimized concrete quality and performance stability;

7. Increased testing productivity and accelerated adoption of innovative high-efficiency materials.

Minimum slump	The concrete has to have a slump not lower 50mm, greater than 75 mm, otherwise the concrete is too stiff for testing by the apparatus, the result is not good
Nominal maximum size of aggregate	5-35mm (maximum 45mm can be customized)
Vane rotation speed	0.001 to 1.0 rps
Vane size	φ125mm X H 125mm
Motor type	Servo Motor
Range of Torque	0.01Nm - 50Nm
Peak Torque	90Nm for not more than 2 seconds
Minimum Torque	0.001Nm
Continuous Maximum Torque	32Nm
Function	Performs static stress growth test and dynamic flow curve tests Automatic data acquisition, calculation of Bingham rheological parameters - yield stress and plastic viscosity, drawing curves, storage test results
Test time	1 minute
Computer system	Windows 7 or higher
Power Supply	220V, 50Hz

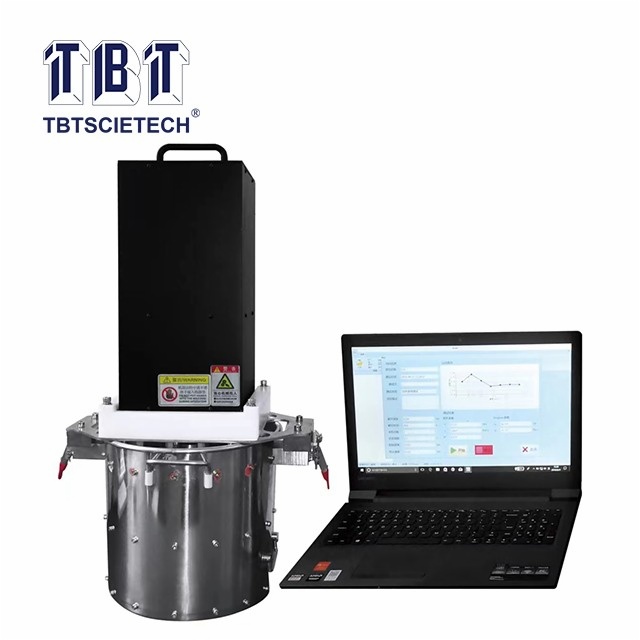

Concrete Rheometer TBTPCR-300
