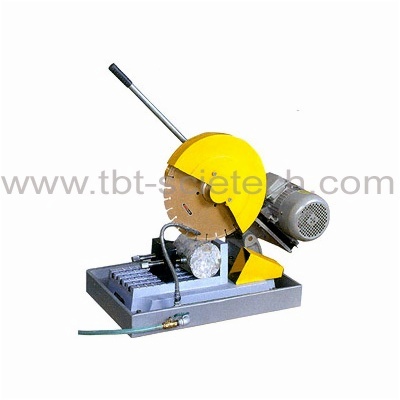

    Concrete Specimen Slicer HQ-7

    Concrete Specimen Slicer
    Item Code:HQ-7 Features:TBTHQ-7 is a compact and highly portable cutting machine designed for concrete, asphalt concrete, and stone core samples or block specimens.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTHQ-7 is a compact and highly portable cutting machine designed for concrete, asphalt concrete, and stone core samples or block specimens. It features a high-precision spindle with sealed, lubricated bearings and is equipped with a high-precision diamond blade, ensuring processed sample surfaces are smooth and perfectly perpendicular.

    Saw blade diameter

    Ø50, Ø70, Ø75, Ø100, Ø150mm

    Max. specimen length

    400mm

    Saw blade rotating speed

    2300r/min

    Motor Rated Power

    3KW

    Size

    Approx. 900x460x830mm

    Weight

    Approx. 95kg

    Power supply

    380V, 50Hz
