Full Automatic Triaxial Test Apparatus Manufacturer

Description
Referring Standard
Features
Technical Specification

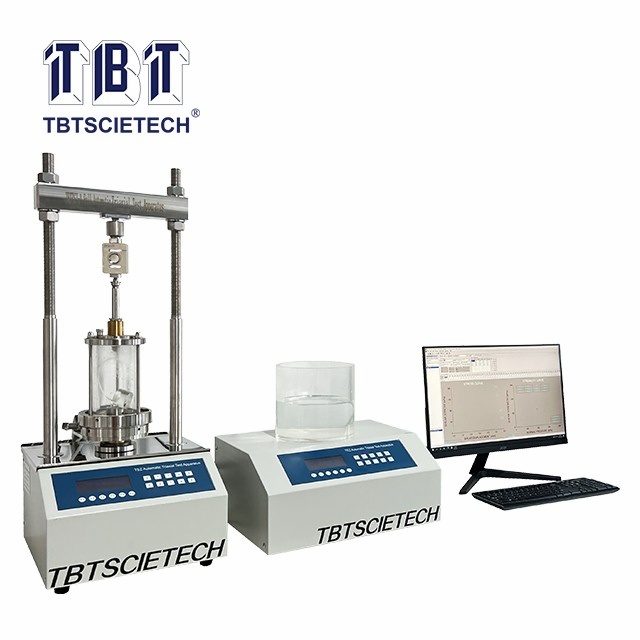

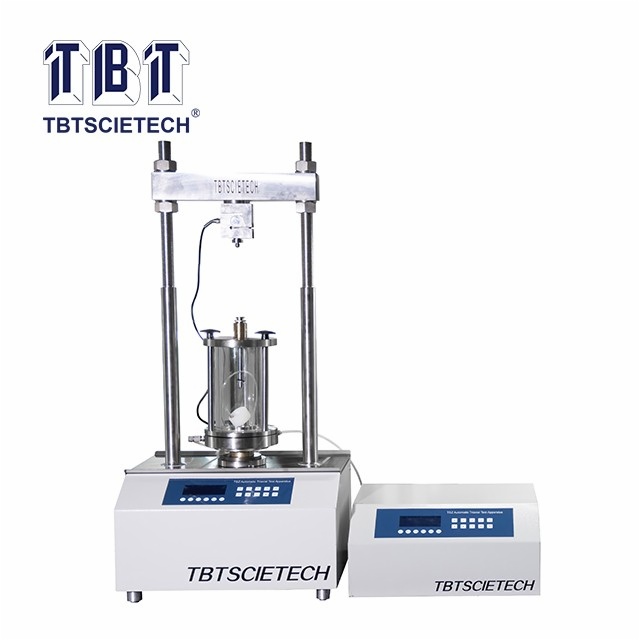

TBTTSZ-6 automatic triaxial apparatus with latest modern technology set the machinery, electronics, automatic control technology, automatic sensor detection technology and computer technology in one.

It could do strain unconfined test and UU, CU, CD, as well as shear test. If with different containers and control module it also can carry out Ko consolidation, static side pressure coefficient, a variety of stress paths tri-axial testing, tensile test, elastic modulus test and load test. If equipped with consolidation module, can load in grades and continually.

If equipped with vibration module, the system can do automatic vibration tri-axial test and fully over the domestic performance of similar instruments, reach and close to the international similar products.

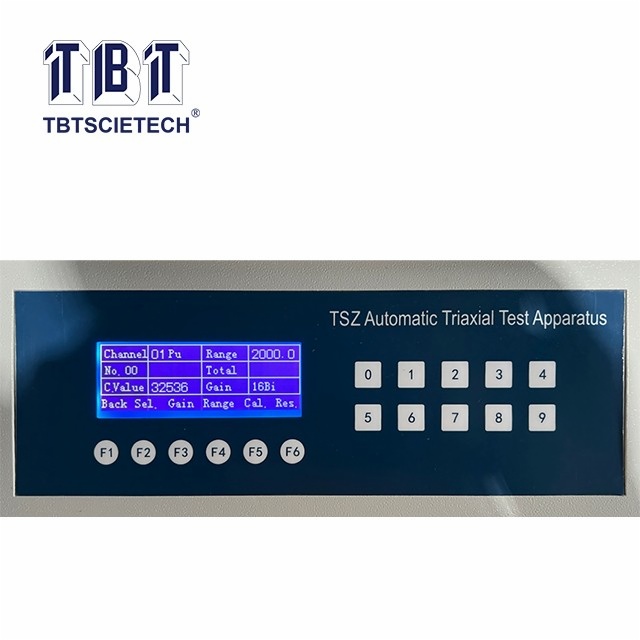

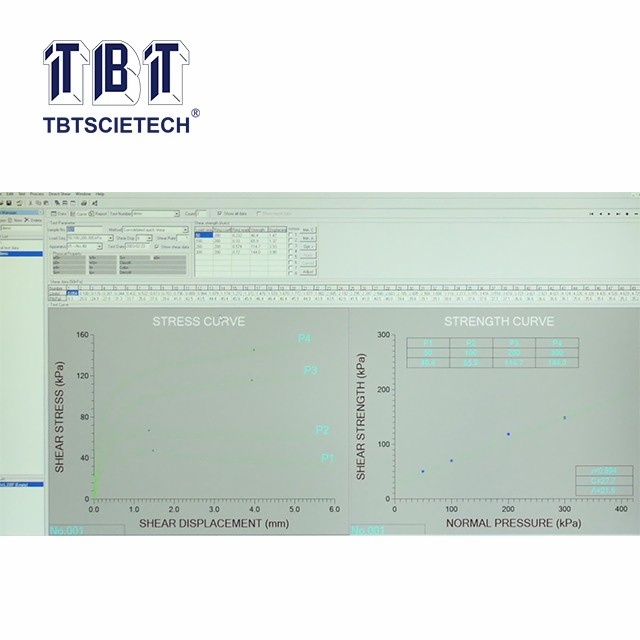

1.Test is controlled and displayed parameters by computer;

2.Easy operation software to reduce operator learning period;

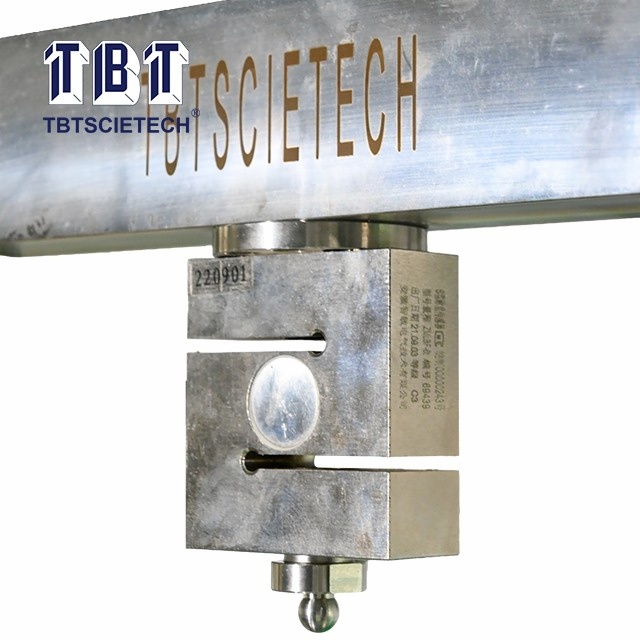

3.High accuracy load cell to ensure reliable test result;

4.Rigid frame for long term stable running;

5.Customizable pressure chamber and related accessories for various demand.

Specimen size	Ø101.1mm
Axial force	0~60kN
Pore pressure	0MPa~2MPa
Volume deformation	0ml~120ml
Shear speed	0~1.2mm/minute

Full Automatic Triaxial Test Apparatus TBTTSZ-6
