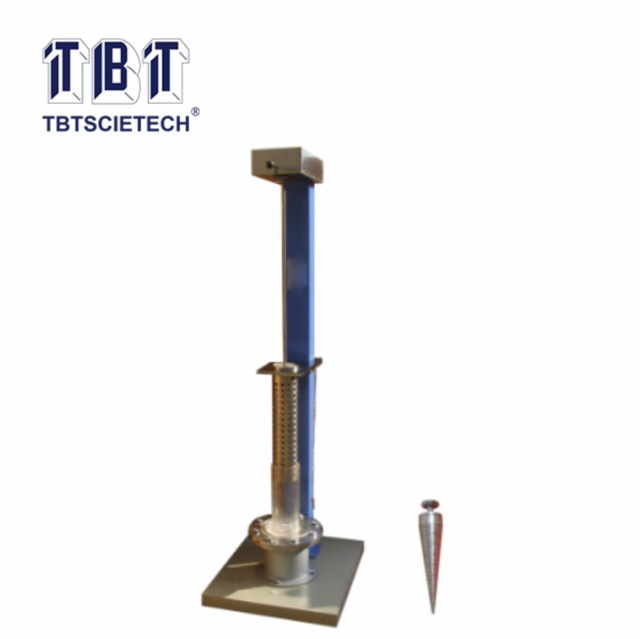

    Geotextile Cone-Drop Punch Tester TBTYT-040N

    Geotextile Cone-Drop Punch Tester
    Item Code:TBTYT-040N Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Used to measure punctured and destroyed degree of geotextile and related products by steel cone fallen from the fixed height.The insertion depth of cone-drop character the destroy degree of dropping stone on geotextile.





    Test height: 500±2mm
    Inner diameter of clamp fastener: 150±0.5mm
    Falling Cone: cone angle 45°, maximum diameter: 50mm，weight: 1000g±5g
    Volume of cone: measurement range:5~50mm±0.1mm，weight: 600g±5g
    Dimension: 480×560×1540mm(L×W×H)
    weight: 55kg
