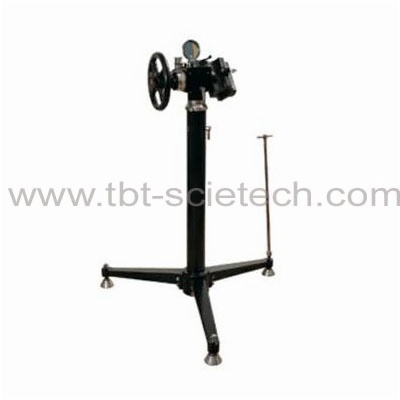

Inclinometer Calibrator Manufacturer

1. All parts of the apparatus, fasteners, components, parts, etc. are made of non-magnetic material.

2. The instrument is well made, advanced technology, high detection precision, fully meet the requirements of the technical indicators.

3. The clamping diameter isΦ62㎜～Φ76㎜, using a special clamping block, which can be applied to various diameter inclinometer calibration.

Each scale division of dip angle dial	1°
error among scale divisions	not more than ±3′
measurement error using a vernier	＜±6′
Each scale division of azimuth angle dial	2°
error among scale divisions	not more than ±3
measurement error using a vernier	＜±12′
Sensitivity of water level bubble	4′; c: ＜±20%
It can clamp inclinometer with a diameter of φ62-φ76 mm
The non-verticality error between the horizontal axle and central axle and between the vertical axle and the central axle is less than 12′
Dimension Diameter	1 m
Height	1.18m
