Laser Crack Detecting System (3D) TBTCDS-2

  • Laser Crack Detecting System (3D)
  • Laser Crack Detecting System (3D)
  • Laser Crack Detecting System (3D)
  • Laser Crack Detecting System (3D)
  • Laser Crack Detecting System (3D)
Item Code:TBTCDS-2 Features:Pavement cracks, pits and other diseases that cause road surface technical conditions or road surface performance degradation are generally called as road surface damage. The severity of road damage seriously affects the speed of the vehicle and road.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
Pavement cracks, pits and other diseases that cause road surface technical conditions or road surface performance degradation are generally called as road surface damage. The severity of road damage seriously affects the speed of the vehicle and road.

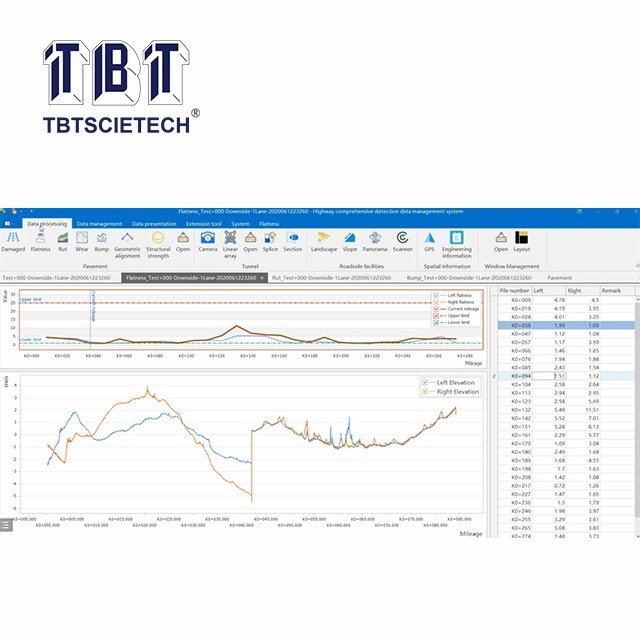

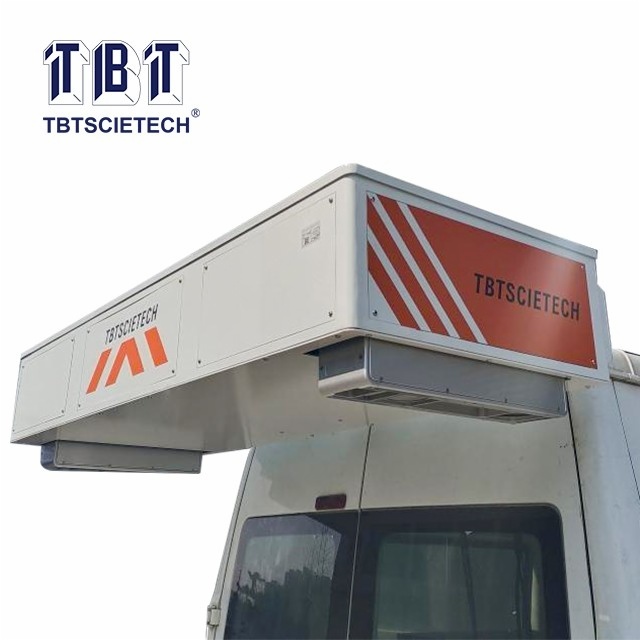

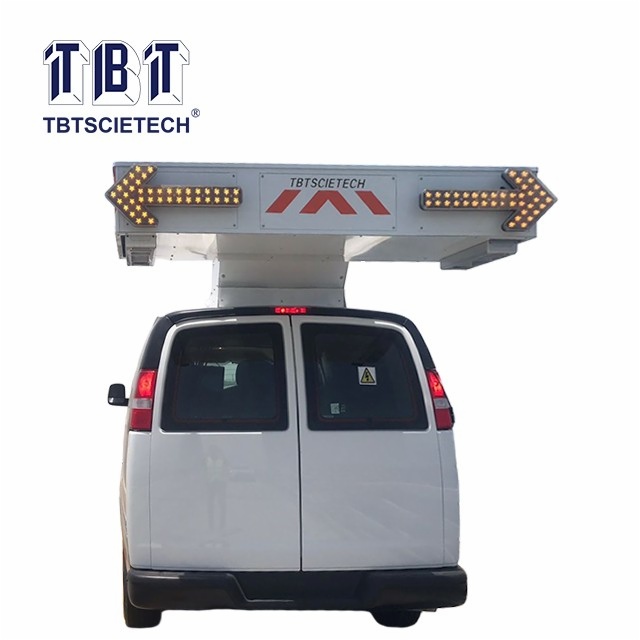

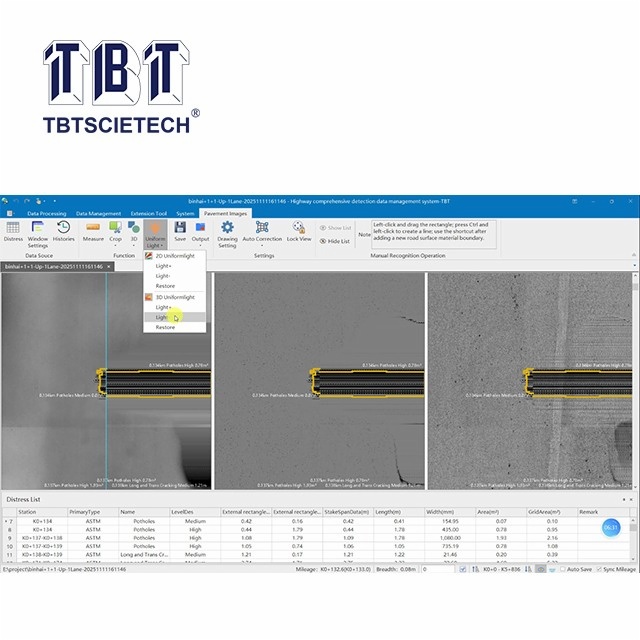

TBTCDS-2 Laser Crack Detecting System is advanced instrument to detect these damages, equip with 3D high frequency camera together with high power infrared laser, TBTCDS-2 can collect the data and distinguish types of distress;
TBTCDS-2 adopt C2-2040-HS-GIGE senor camera which made in Germany; C2 Series are high speed sensors for three-dimensional measuring tasks with high precision; (see following C2-2040-HS-GIGE details).

Item

Description

Specification

Camera

(country of origin: Germany)

Resolution

2560x832

Laser device

Power

>6W





Distresses



Detecting speed

0~80km/hour

Transverse effective detecting width

≧3.75m

Longitudinal sampling interval

1mm

Crack recognizing accuracy

1mm





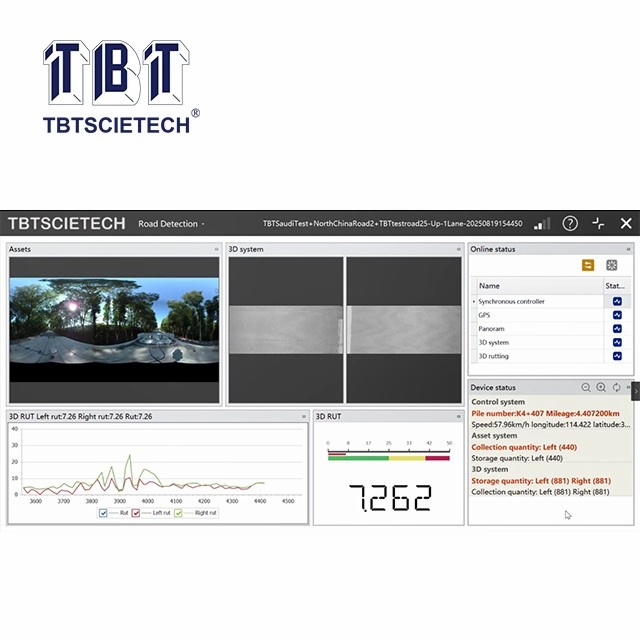

Rut

Rut measuring range

+/-150mm

Transverse effective measuring error

<15%

Measuring repeatability

<5%

Transverse collecting point

>2000
