    Road Asset Management System
    Road Asset Management System

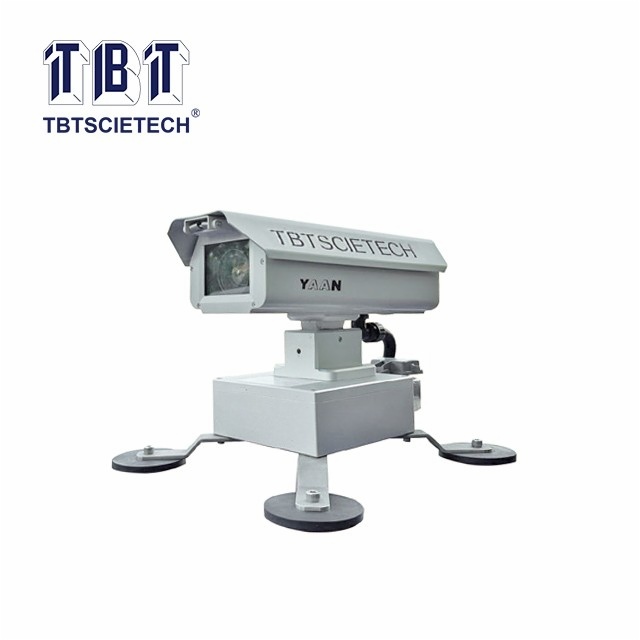

    Item Code:TBTLC-1 Features:TBTLC-1 system is used for collecting the road assets which get the pictures by single camera(standard config, can be extended to more cameras as per customer request), the pictures saved in .jpg format, very convenient for further checking and review.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTLC-1 system is used for collecting the road assets which get the pictures by single camera(standard config, can be extended to more cameras as per customer request), the pictures saved in .jpg format, very convenient for further checking and review.

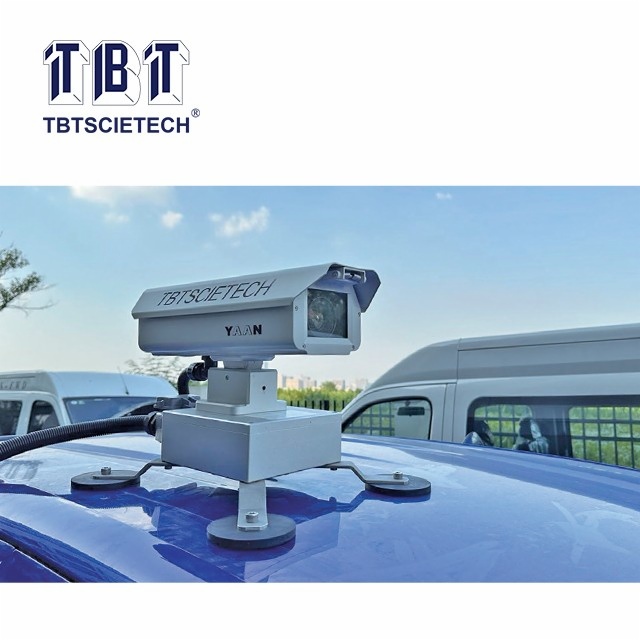

    The camera is installed at the top of vehicle at front part, set the interval and take pictures during high speed driving. The connecting with laptop is connected via ethernet.

    Resolution

    1628*1236

    Sensor type

    CCD

    Optical size

    1/1.8" Sony ICX274

    Frames per second

    20fps

    Shutter speed

    20μs~1s

    Working temperature

    0~60℃

    Working humidity

    10%~80%RH

    Testing interval

    2meter or more than 2meter

    Testing speed

    0~120km/h

    DMI measuring accuracy

    0.1%
