multi-channel GPR Ground Penetrating Radar TBTGPR-40

  • multi-channel GPR Ground Penetrating Radar
  • multi-channel GPR Ground Penetrating Radar
Item Code:TBTGPR-40 Features:
  • Description
  • Main Specifications
  • Accessories

TBTGPR-40 multi-channel GPR system is mainly used for highway related detection, the controller with channel-parallel designing allows each channel to work independent and simultaneously, and collects 4 channels data (Max.up to ~12 channels) to achieve the best detection performance and efficiency.

The controller is compatible with all TBTGPR series antennas with center frequency range from 35MHz to 2500MHz. The system can be flexibly configured to maximumly meet the actual needs of engineering inspection and detection.


TBTGPR-40 system Application:

City road and airport runway quality inspection

City road subsurface cavities and disease detection

Utility pipeline detection

Tunnel and railway inspection

Pavement asphalt layer thickness, structural layer thickness and disease detection

Highway structural layer thickness and roadbed disease detection



1, Channels work independent and simultaneously without mutual interference. It means several single-channel radars working at the same time (upper time-sharing control), which greatly improves the  detection efficiency.

2, Good flexibility and compatibility, channel numbers and antenna frequency can be freely selected.

3, The system automatically identify antenna and make parameter configuration.

4, The system saves both original data and in-field data.

5, Vehicle encoder and antenna encoder are optional.

6, Controller 2U structure designed with external terminals connection by serial port (RS232), RJ45, USB etc.

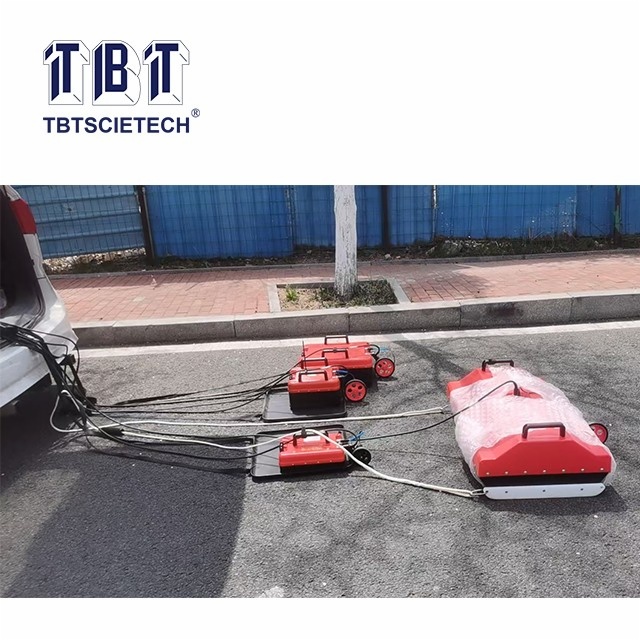

7, The antenna trailer is integrate designed with tire wheels, it can go forward, backward or turn other directions. The trailer is made with wear-resistance cover and bottom fully ensures the radars working safely at speed around 70KM/h.  The compact designed trailer size is 1960x1155x530mm.

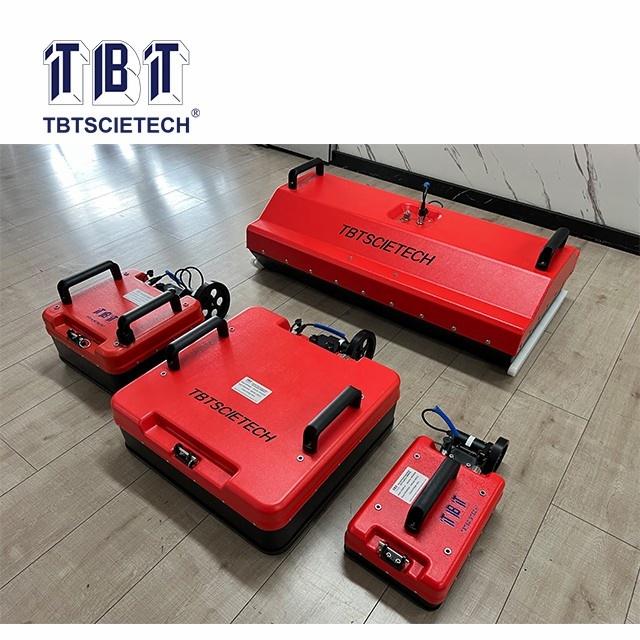

Compatible Antenna

GPR series antennas

working Channel

4 channels (can be customized Max. up to 12 channels)

accept GPS

By Serial Port RS232, accepts GPGGA data format

Display mode

False color, gray level, stacking waves and color stacking wave

Power supply

External power supply, 18V~27V

Power consume






Working temperature


Storage temperature


Working humidity

<95%, not condensate

waterproof level


Data collecting

Data format


ADC bits

16 bit

The max scanning speed

512 scanning/s  (sampling points number is 512)

Sampling points number

256, 512, 1024, 2048, 4096, 8192

Max transmitting frequency


Collecting mode

Time mode, distance mode and point measurement mode

Time-window range


Gain range


Number of gain adjustment points

9 pieces

Real time processing functions

Correction zero deviation, FIR filtering, IIR filtering, background removal, average among ways, data overlying

Exterior installing terminals

Data transmission

USB 3.0


Serial port (RS232)


RJ45 network port

Main control

8-pin aviation socket


GPR-40 Software Functions and features:

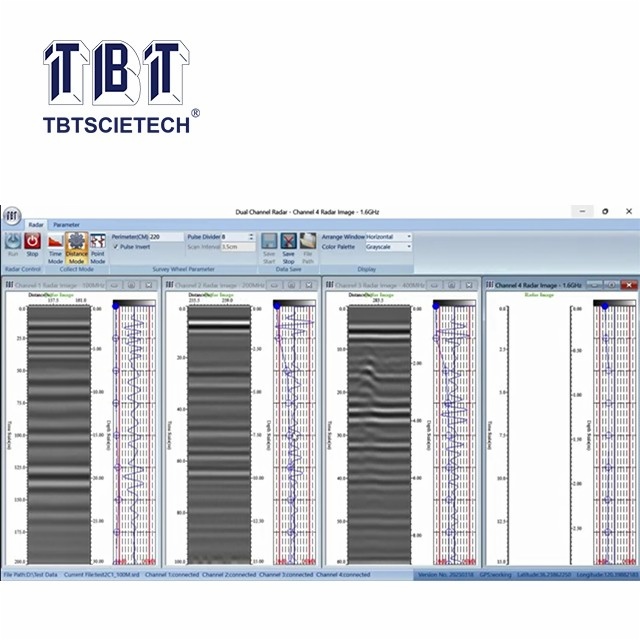

1) The 4-channel simultaneously acquisition and display in various optional modes such as tiling, cascading or one channel individually.

2) Various detecting methods available such as continuous measuring or distance trigger detecting methods.

3) Various data processing methods can be selected to highlight the signal characteristics of the detected target.

4) Original data and in-field data are saved at the same time to avoid data invalidation caused by misoperation.

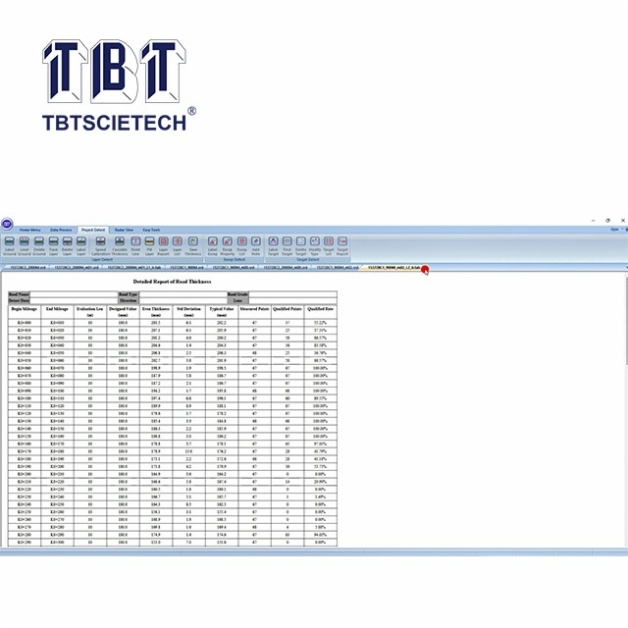

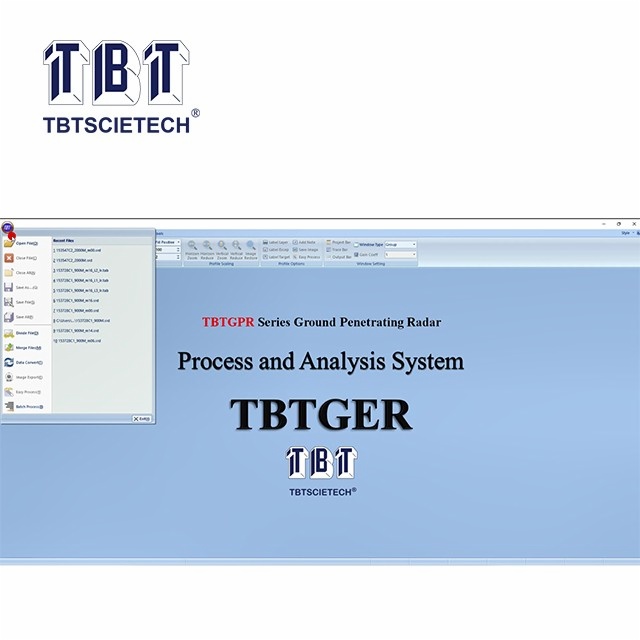

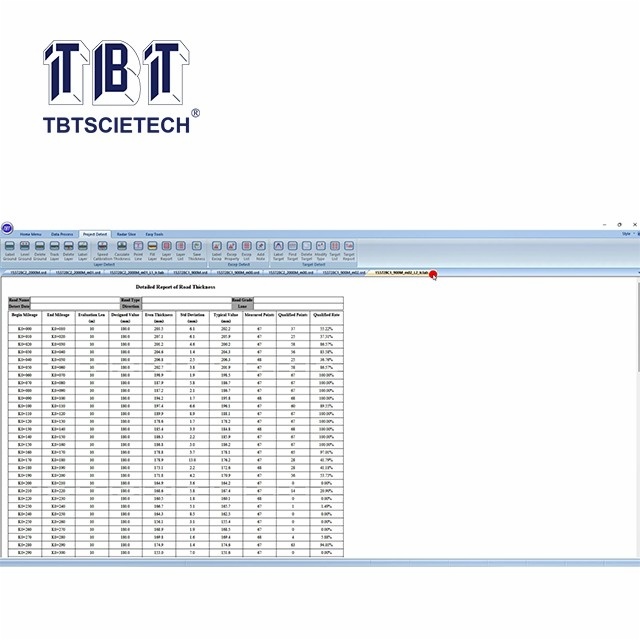

5) The data format is fully compatible with GER general radar data format, GER2.0 software is used for data processing with powerful functions and friendly interface.

6) The real-time acquisition software can be installed on laptops or other handheld terminals for convenient carry.

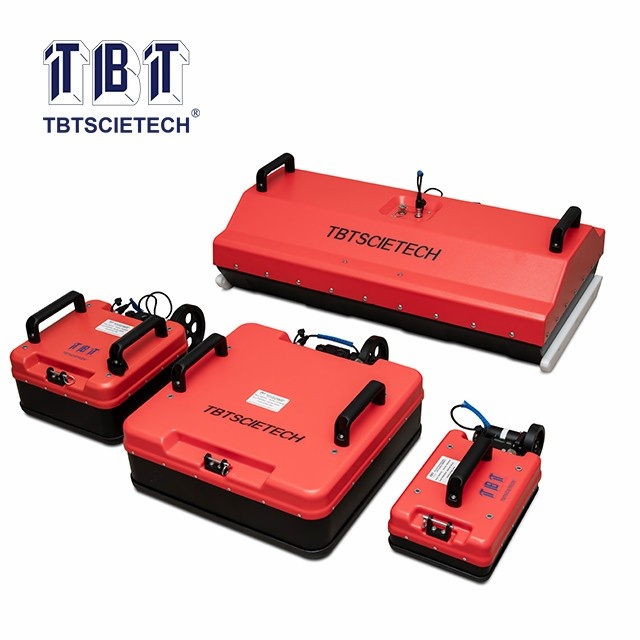

TBTGPR series antenna selections:


Other Products

Product Name:

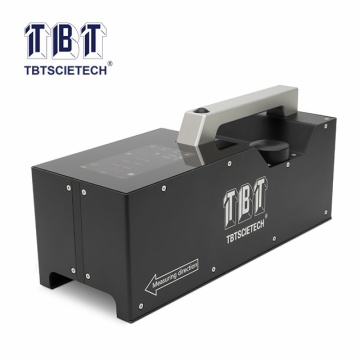

Road Marking Retroreflectometer
