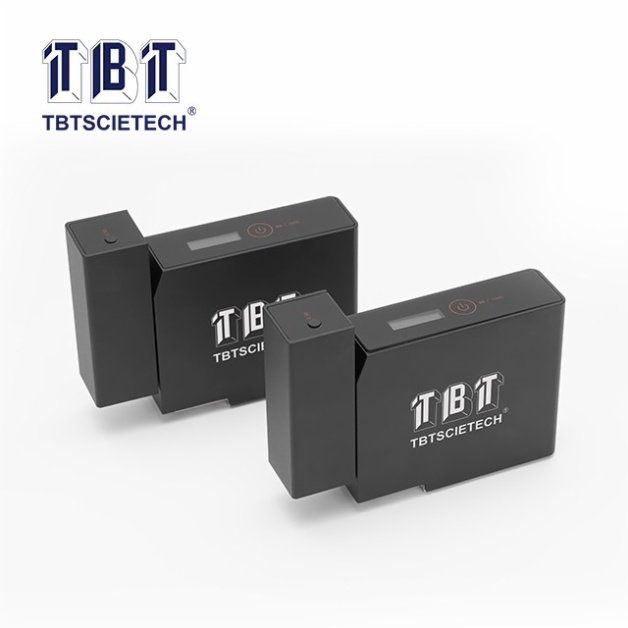

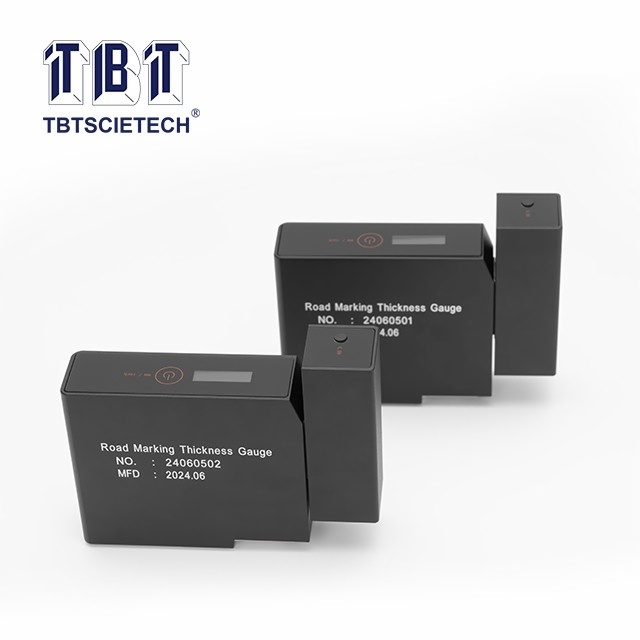

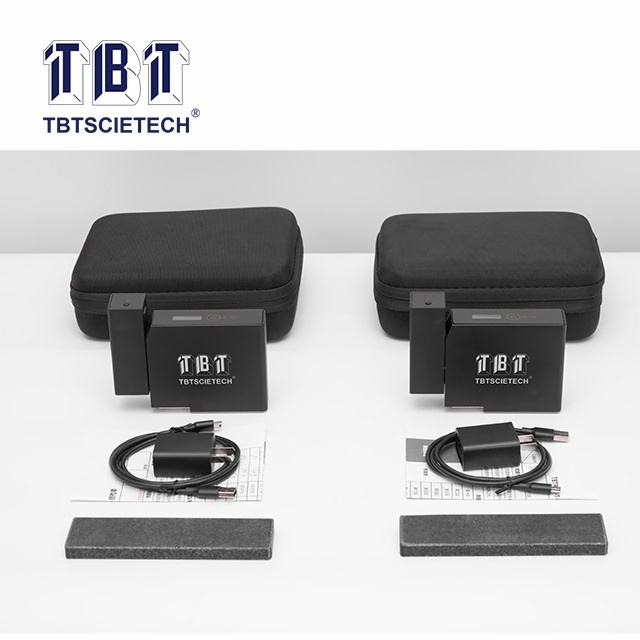

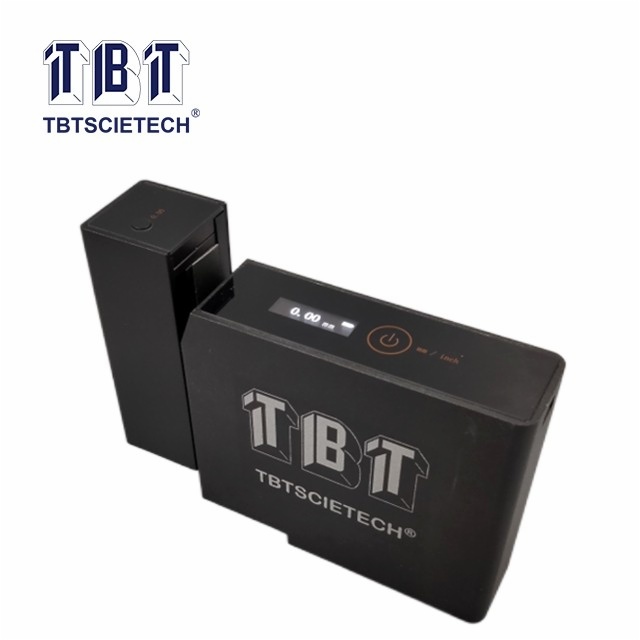

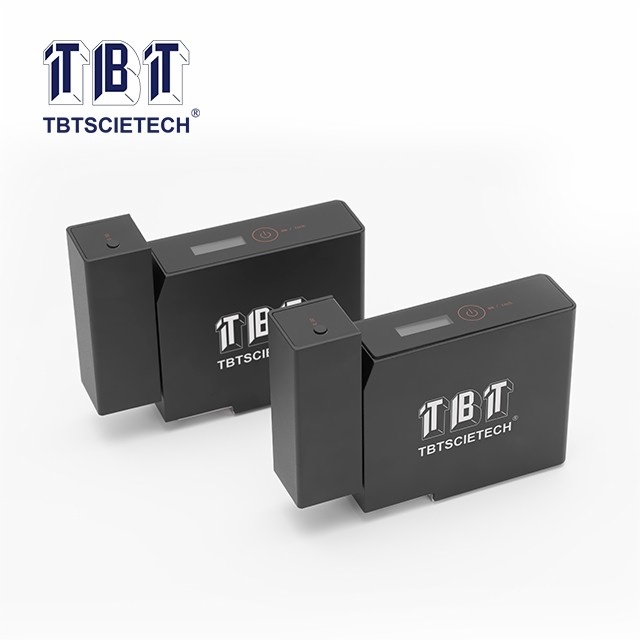

Road Marking Thickness Gauge TBTRMT-1

  • Road Marking Thickness Gauge
  • Road Marking Thickness Gauge
  • Road Marking Thickness Gauge
  • Road Marking Thickness Gauge
Item Code:TBTRMT-1 Features:TBTRMT-1 is a digital device for measuring the thickness of dry pavement markings with OLED screen.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTRMT-1 is a digital device for measuring the thickness of dry pavement markings with OLED screen.
It ensures a simple but efficient metric for measurement and apply to quality control and inspection of marking coating thickness for road maintenance units, road marking lacquer manufacturers, construction companies, quality supervision department.

EN 13197

1.Portable design, easy to carry, single hand operation;
2.OLED screen display test data;
3.Built-in large capacity lithium battery for long standby time;
4.High accuracy in 0.02mm;
5.00 level marble demarcation board, make sure calibration accuracy;
6.Rigid aluminum alloy housing.

Measuring range

±12.7mm

Measuring resolution

0.01mm

Accuracy

0.02mm

Calibration block accuracy

Grade 00

Display

OLED

Li-battery working time

>30hr

Power supply

12V 5.2Ah

Working temp. & humidity

-15C ~ 60C / <98%

Size

Around 140x110x30mm

New weight

Around 0.45KG
