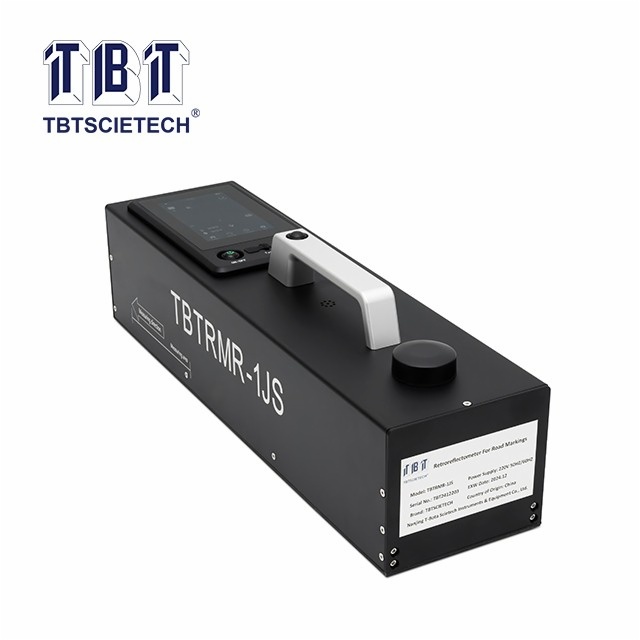

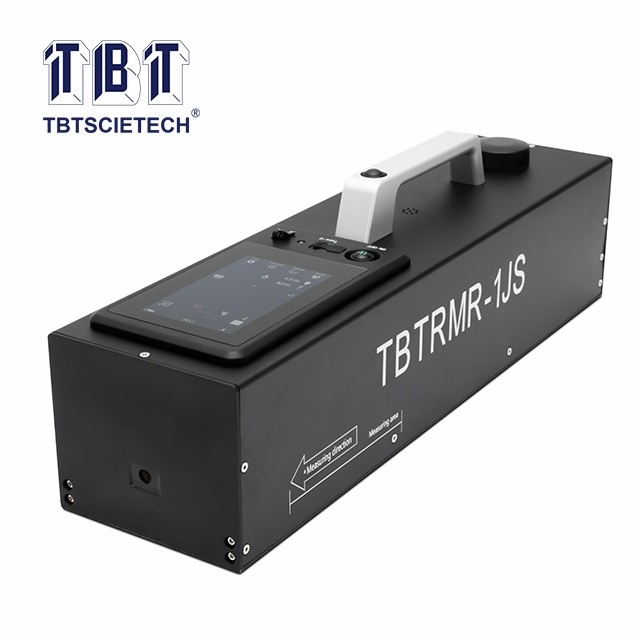

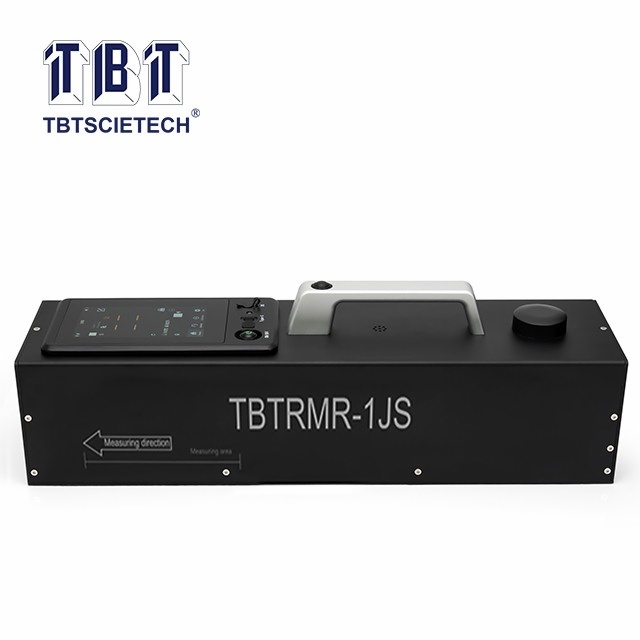

Retroreflectometer for Road Marking with RL & Qd Value TBTRMR-1JS

  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
  • Retroreflectometer for Road Marking with RL & Qd Value
Item Code:TBTRMR-1JS Features:TBTRMR-1JS adopts compact size design for enhanced portability, it is used to determine the retroreflective properties by simulating the process in which vehicle headlamps illuminate the road/airport markings and then reflect light back to the driver.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

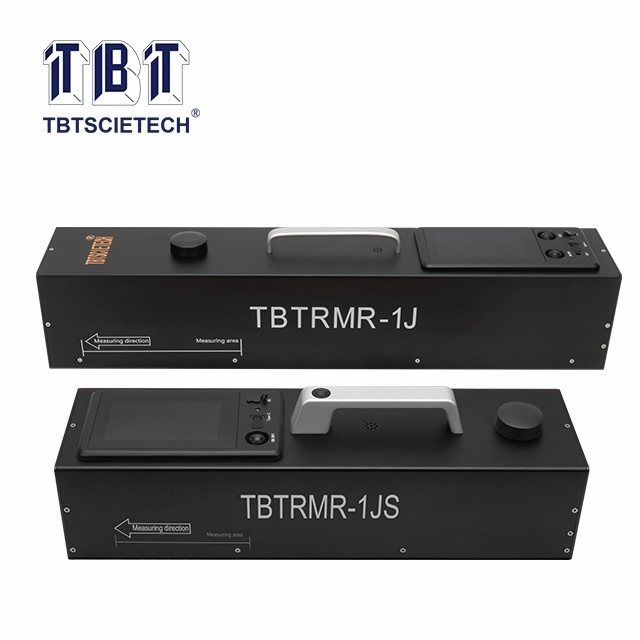

TBTRMR-1JS adopts compact size design for enhanced portability, it is used to determine the retroreflective properties by simulating the process in which vehicle headlamps illuminate the road/airport markings and then reflect light back to the driver.
It supports the comprehensive measurement of daytime visibility (Qd), nighttime visibility (RL) and RL under standard conditions of wetness.

EN 1436(RL & Qd), ASTM E1710(RL), ASTM E2177(RL wetness), ASTM E2302(Qd)

1.Equipped with an imported sensor to ensure measurement accuracy;

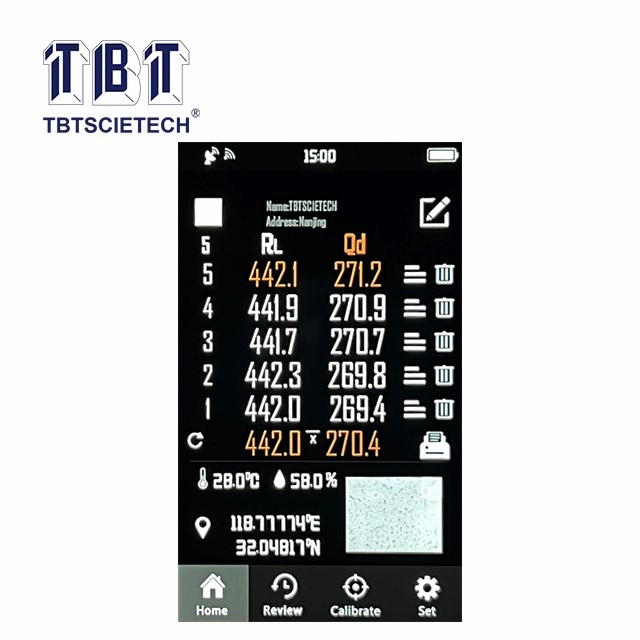

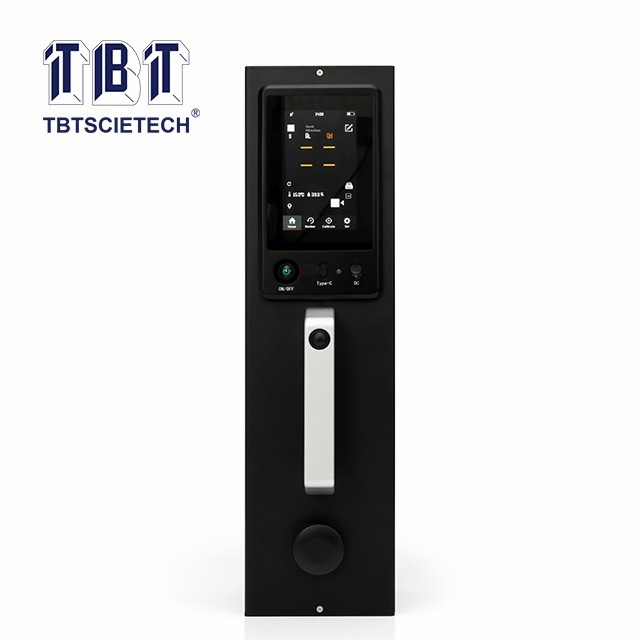

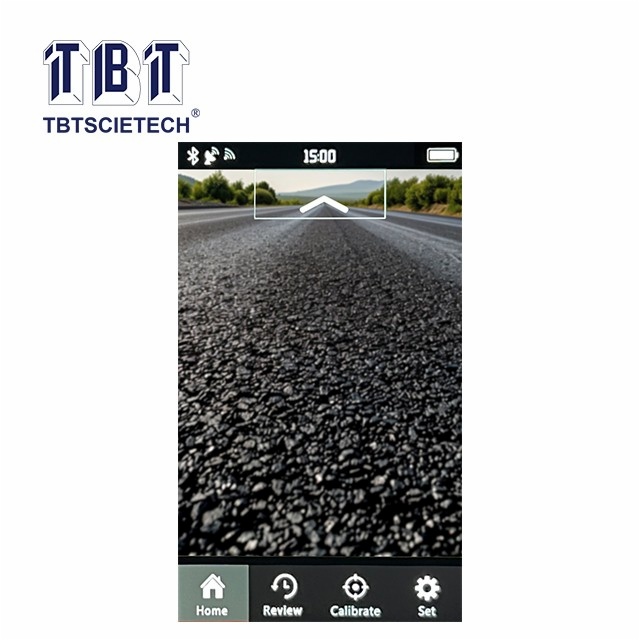

2.Color touch screen for real-time information display;
3.Average calculation & data assessment for measurement results;
4.Real-time voice broadcast for test data;

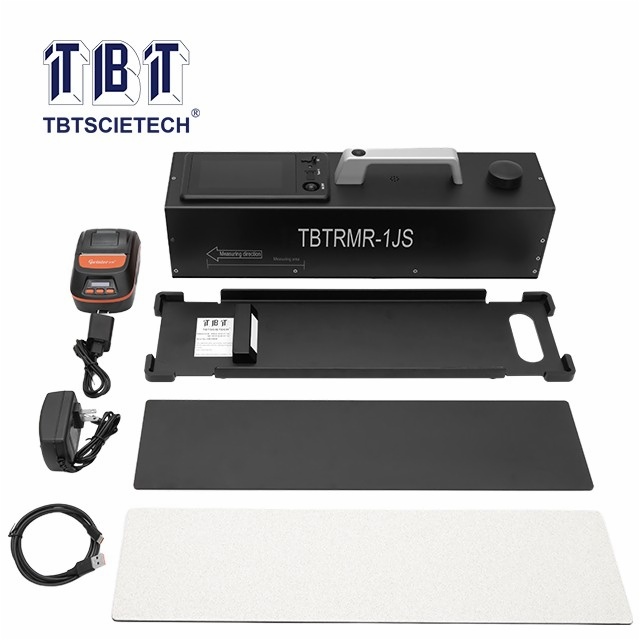

5.Bluetooth printer, USB port for exporting test data to PC and displaying measurements on Google Earth;
6.GPS(longitude & latitude), level meter(across & along) and compass(heading) for each test;

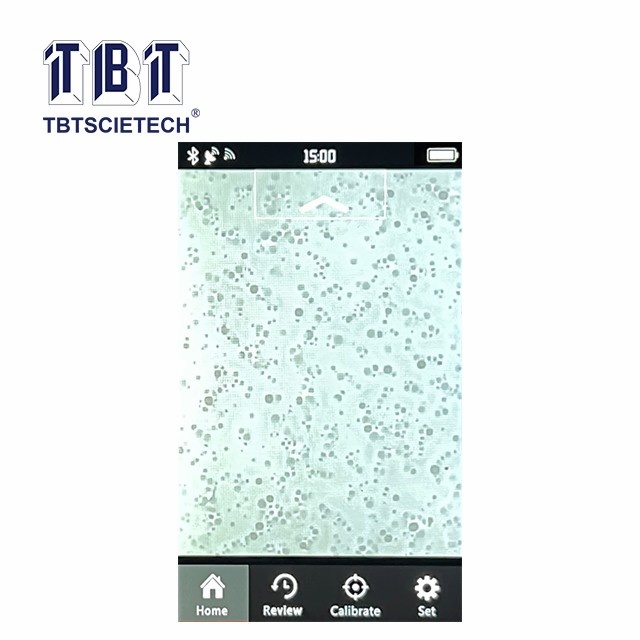

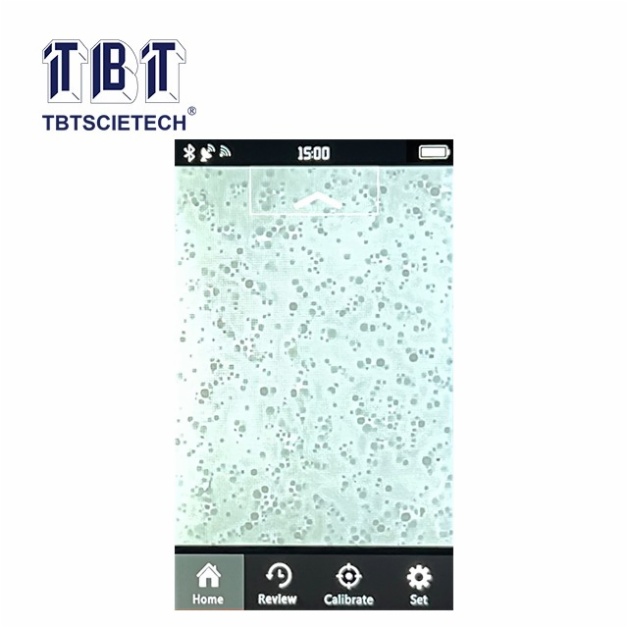

7.Equipped with front & bottom cameras for specimen status record;
8.Night-time chromaticity(optional function);
9.Multi-language interface available.

Measurement range

RL(mcd•m-2•lx-1): 0~4000

Qd(mcd•m-2•lx-1): 0~400

Equivalent observation distance

30m

Measurement area

200 x 95mm

Illumination angle Qd

Diffuse

Illumination angle RL

ASTM E1710: 88.76°

EN 1436: 1.24°

Observation angle RL

ASTM E1710: 1.05°

EN 1436: 2.29°

Light source color temperature

2856±50K(CIE A light source)

Error of repeatable measurement

≤2%

Continuous working time of battery

>30h

Data storage space

28GB, more than 100,000 data

Screen

5 inch colorful touch screen

Built-in battery capacity

12V/5.2Ah

Charger

DC 15V

Working temperature & humidity

-15℃~+60℃; <98%RH, no frost

Size

Approx. 500x135x155mm

Weight

Approx. 4.4kg
