Retroreflectometer for Road Marking with RL & Qd Value (Optional Camera Function) Manufacturer

Description
Referring Standard
Features
Technical Specification

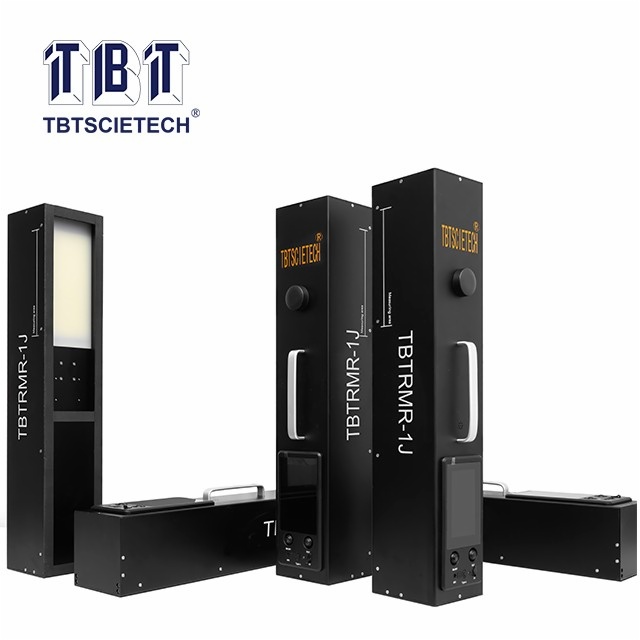

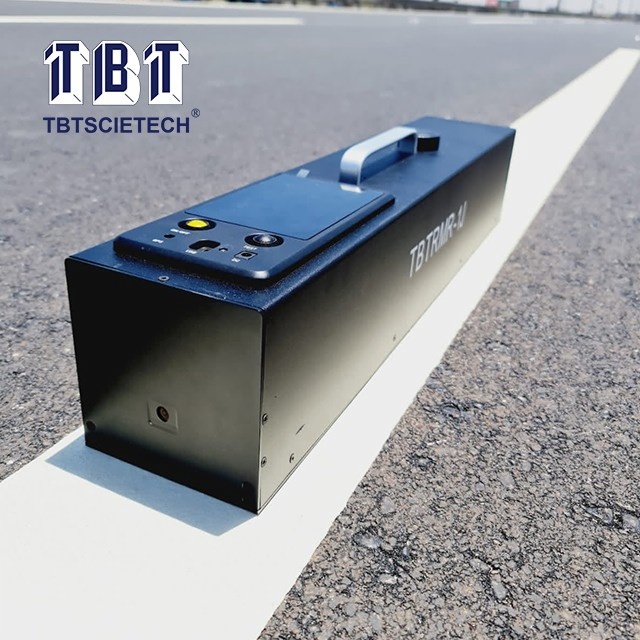

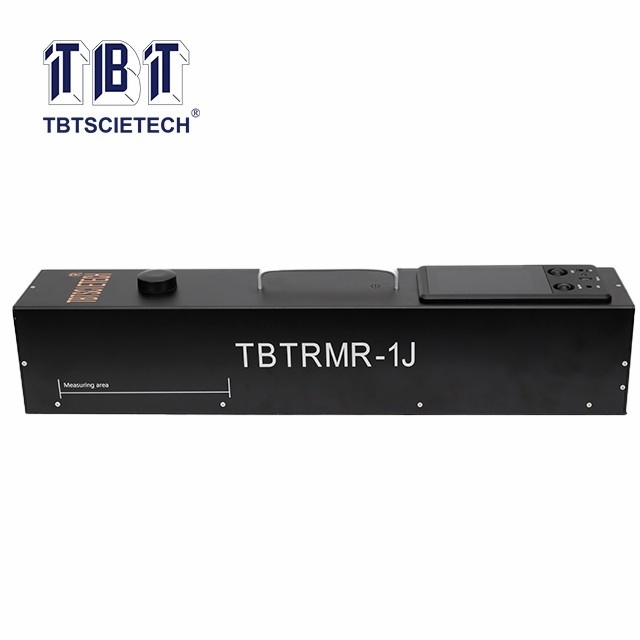

TBTRMR-1J is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic.

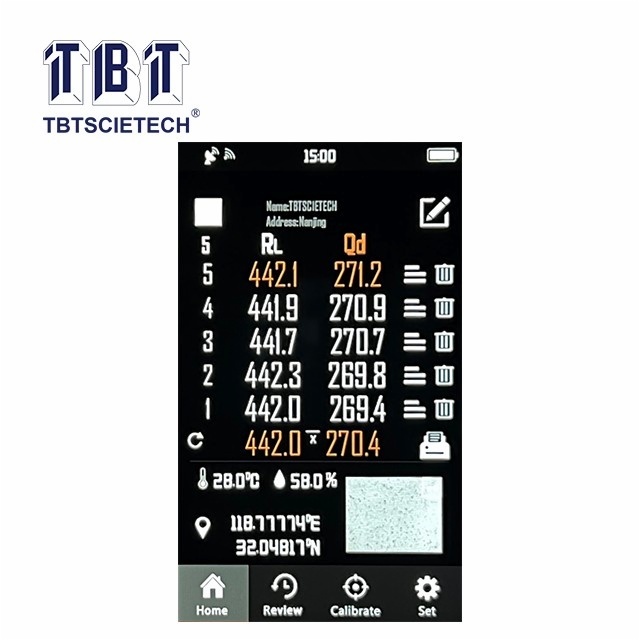

It supports simultaneously measure index of day visibility(Qd), night visibility(RL), temperature and humidity efficiently. The latest optional function is cameras for recording.

EN 1436(RL & Qd), ASTM E1710(RL), ASTM E2177(RL wet), ASTM E2302(Qd)

1.Equip with imported sensor to ensure accuracy of measurement;

2.Colour touch screen real-time display temperature and humidity;

3.Ultrafast retroreflectometer measurement;

4.Average calculation function;

5.Real-time voice broadcast for test data;

6.USB port for test data exporting to computer;

7.Mini Bluetooth printer;

8.GPS for longitude and latitude for each test data;

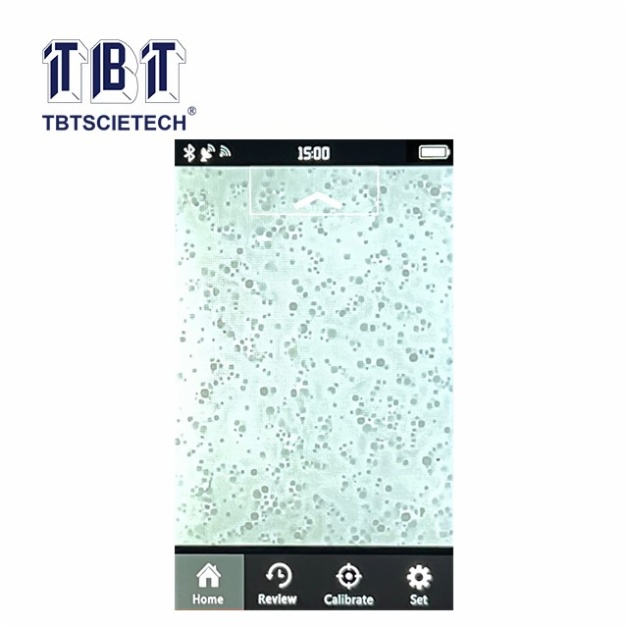

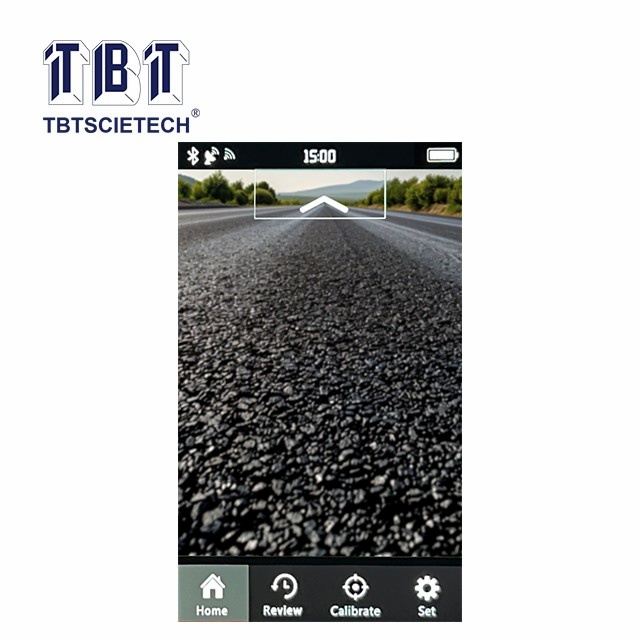

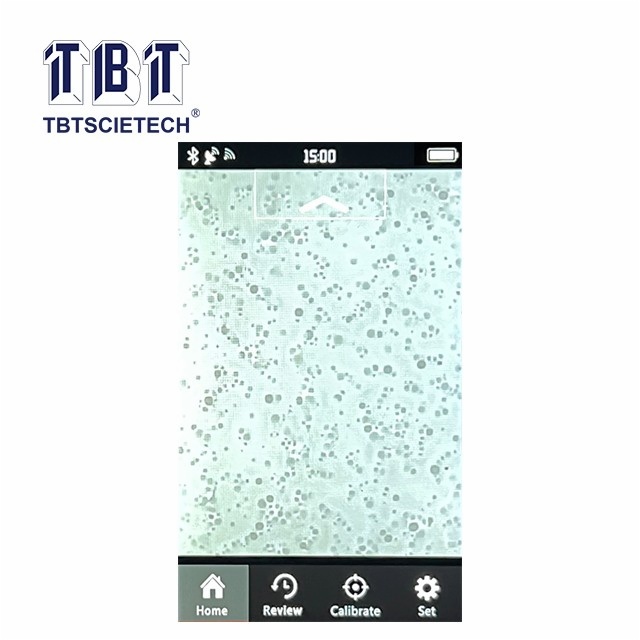

9.Equip with front & bottom cameras(optional camera function);

10.Multi-languages are available.

Measurement items	Retroreflective coefficient (mcd•m^-2•lx^-1)
Measurement range	Qd(mcd•m^-2•lx^-1): 0~400; RL(mcd•m^-2•lx^-1): 0~4000
Equivalent observation distance	30m
Measurement area	200X95mm
Illumination angle Qd	Diffuse
Illumination angle RL	ASTM E1710: 88.76° EN 1436: 1.24°
Observation angle RL	ASTM E1710: 1.05° EN 1436: 2.29°
Light source color temperature	2856±50K(CIE A light source)
Error of repeatable measurement	≤2%
Continuous working time of battery	＞30h
Data storage space	4.9GB, more than 100,000 data

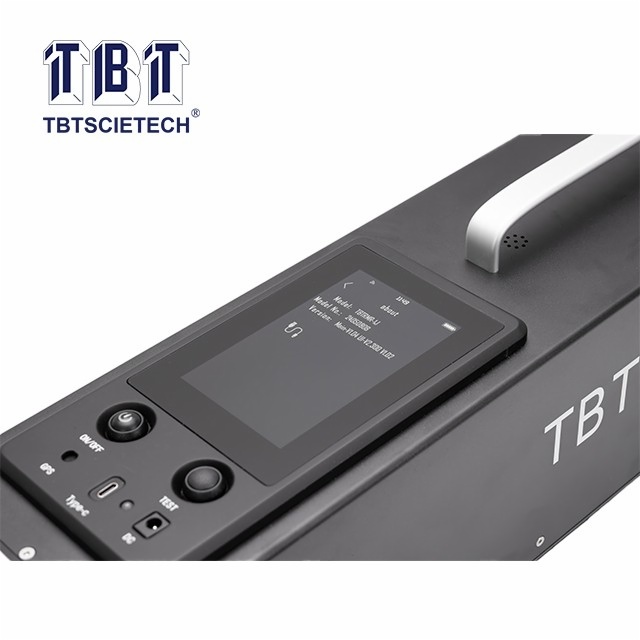

Screen	5 inch colorful touch screen
Built-in battery capacity	12V / 5.2Ah
Charger	DC 15V
Ambient temperature	-15℃~+60℃
Ambient humidity	＜98%, no frost
Size	Around 705x140x140mm
Weight	Around 5KG

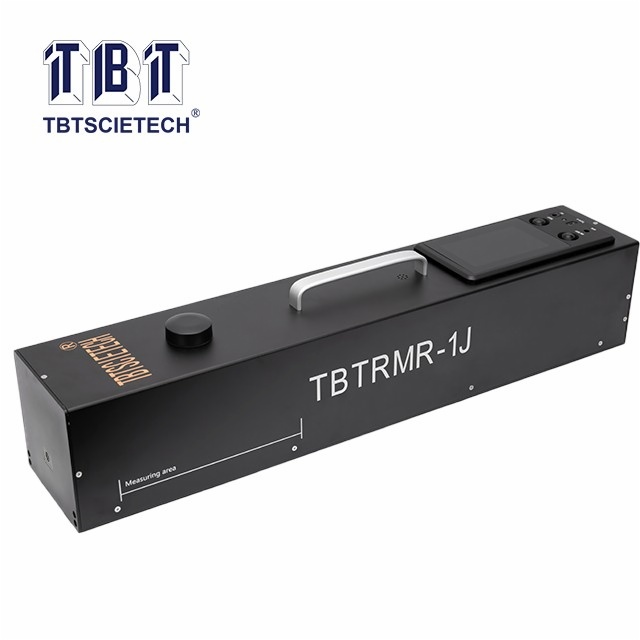

Retroreflectometer for Road Marking with RL & Qd Value (Optional Camera Function) TBTRMR-1J
