    Road Marking Thickness Gauge TBTRMT-3

    • Road Marking Thickness Gauge
    • Road Marking Thickness Gauge
    • Road Marking Thickness Gauge
    Road Marking Thickness Gauge
    Road Marking Thickness Gauge
    Road Marking Thickness Gauge
    Item Code:TBTRMT-3 Features:TBTRMT-3 is a digital device for measuring the thickness of dry road markings via Mitutoyo dial indicator.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

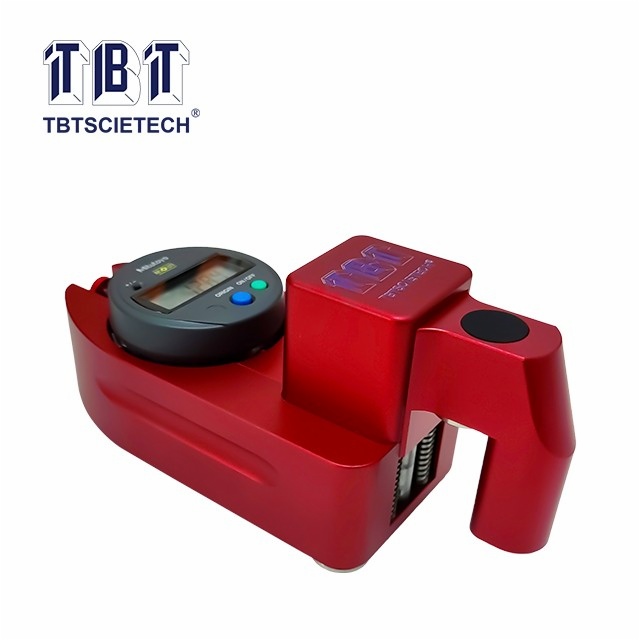

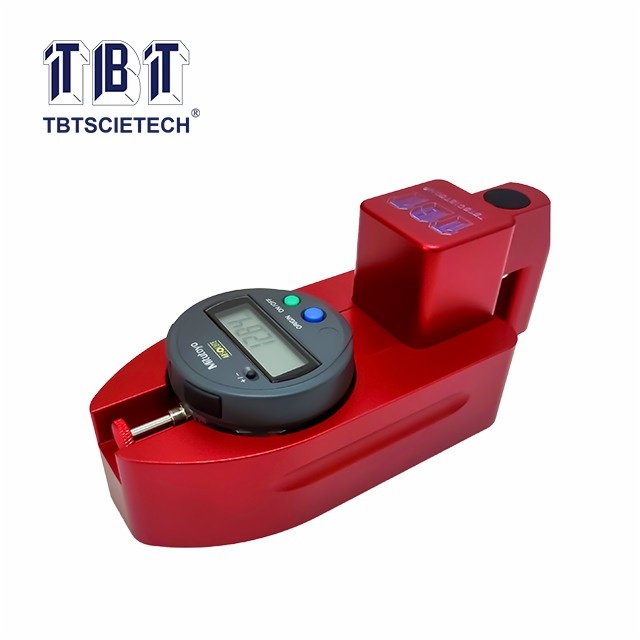

    TBTRMT-3 is a digital device for measuring the thickness of dry road markings via Mitutoyo dial indicator.
    It ensures a simple but efficient metric for measurement and apply to quality control and inspection of marking coating thickness for road maintenance units, road marking lacquer manufacturers, construction companies, quality supervision department.

    EN 13197

    1. Portable design, easy to carry;
    2. Mitutoyo dial indicator for high accuracy measurement;
    3. High accuracy in 0.02mm.

    Measuring range

    +/-12.7mm

    Measuring resolution

    0.01mm

    Accuracy

    0.02mm

    Display

    OLED

    Button battery working time

    >100hr

    Power supply

    1.5V

    Working temperature & humidity

    -10~ 50℃, <98%RH

    Net weight

    Around 0.9KG
