Continuous Friction Coefficient Tester TBTCFT-1

  • Continuous Friction Coefficient Tester
  • Continuous Friction Coefficient Tester
  • Continuous Friction Coefficient Tester
  • Continuous Friction Coefficient Tester
Item Code:TBTCFT-1 Features:TBTCFT-1 is used to measure friction characteristics on road surfaces, airport runways under self-wetted condition, in order to ensure the pavement safety, especially for landing aircraft;
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTCFT-1 is used to measure friction characteristics on road surfaces, airport runways under self-wetted condition, in order to ensure the pavement safety, especially for landing aircraft;

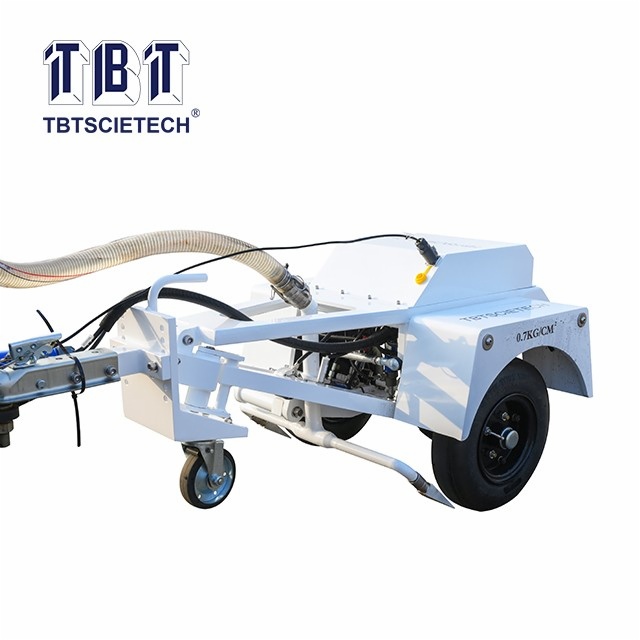

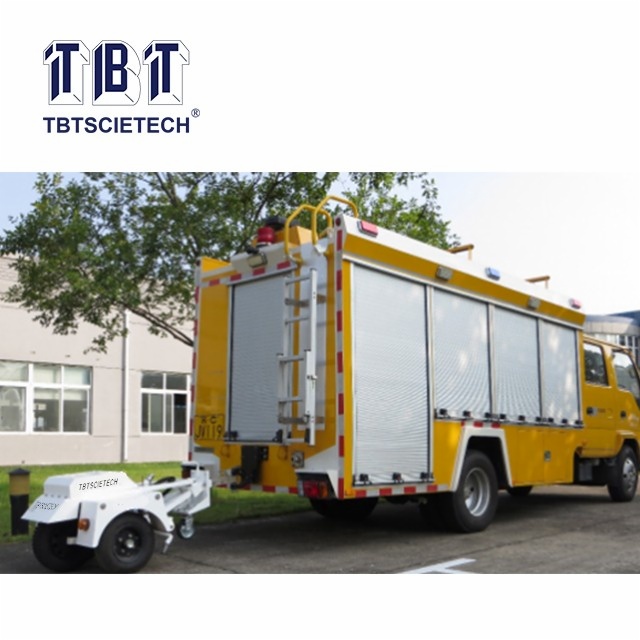

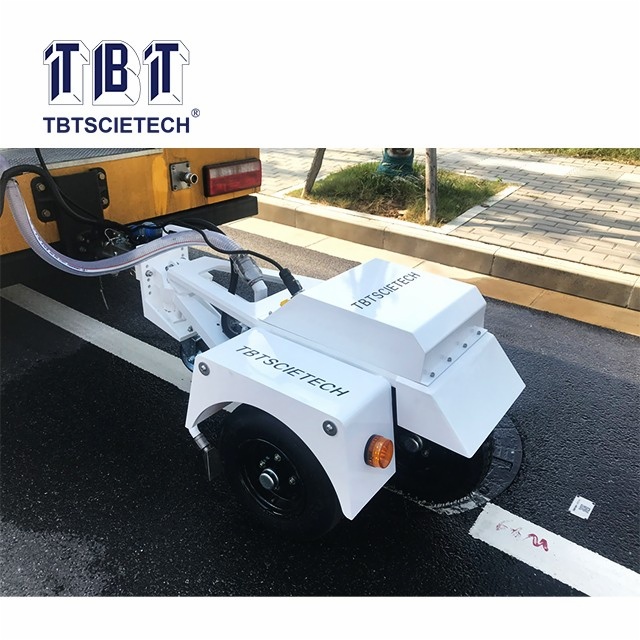

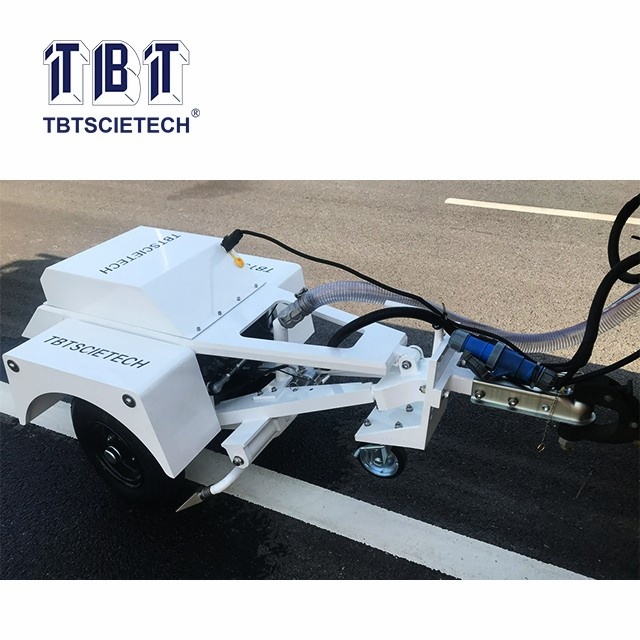

TBTCFT-1 is trailer mounted type which connected with a water spray vehicle to perform the testing.
Machine adopts transducer to measure the load and force, with DMI sensor to record the distance, with temperature sensor to record the pavement surface temperature.

ASTM E670, AASHTO T268, ASTM E1551

Trailer size

L: 1553mm W: 960mm H: 570mm

Trailer connector height

350 ±12mm

Trailer weight

Around 254kg

(include weight, but without the support wheel)

Weight distribute

Left wheel--at calibrated height position 77.5±1kg

Weight distribute

Right wheel--at calibrated height position 77.5±1kg

Testing wheel adjustment

Double wheel adjustment;

Left/right Wheel 7.5° each wheel

Rear wheel

53.5kg

Testing tyre

(specially for friction coefficient test)

ASTM E1551

Testing wheel for distance

Standard tyre

Tyre pressure

Testing wheel for friction coefficient: 0.7±0.035kg/cm2

Testing wheel for distance: 2.1±0.137kg/cm2

Speed

0~100km/h

Testing speed for international airport

65km/h & 96km/h

Testing speed for China standard pavement

50km/h

Working voltage

9-36V DC(12V & 24V vehicle power can be used)

Electronic components

Internet interface, laptop

Friction coefficient testing accuracy

Average value ±0.01

(each pavement length for each not less than 15m)

Distance testing accuracy

±0.1%(plus tyre abrasion)

Temperature measurement

Pavement surface temperature sensor

Testing accuracy

±1%

Software

English version or customized language
