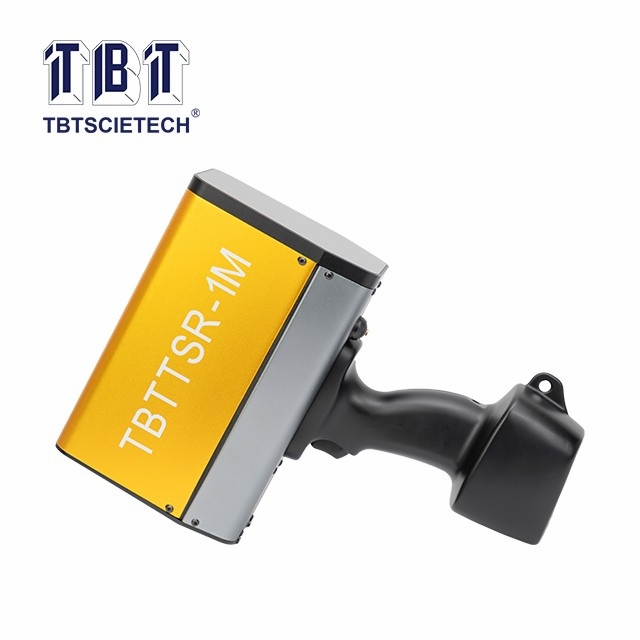

Multi-angle Retroreflectometer for Traffic Signs TBTTSR-1M

  • Multi-angle Retroreflectometer for Traffic Signs
  • Multi-angle Retroreflectometer for Traffic Signs
  • Multi-angle Retroreflectometer for Traffic Signs
  • Multi-angle Retroreflectometer for Traffic Signs
  • Multi-angle Retroreflectometer for Traffic Signs
  • Multi-angle Retroreflectometer for Traffic Signs
Item Code:TBTTSR-1M Features:TBTTSR-1M retroreflectometer is an instrument for measuring RA (nighttime retroreflection) on traffic sign, high visibility clothing, conspicuity tape and license plate.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

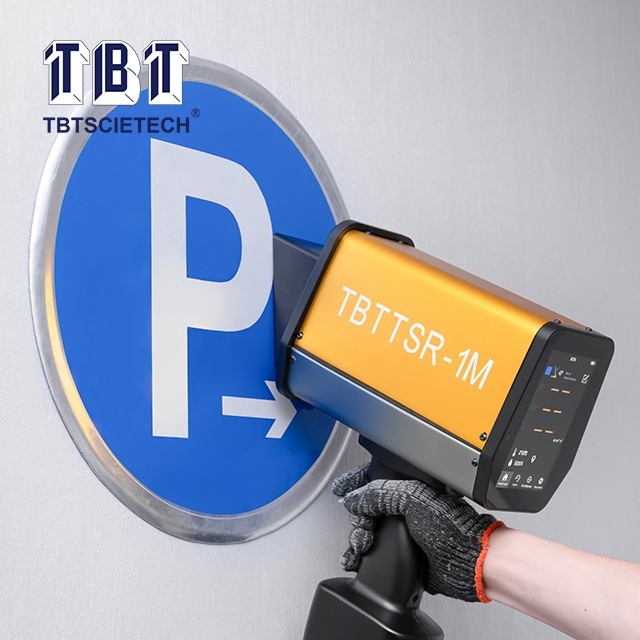

TBTTSR-1M retroreflectometer is an instrument for measuring RA (nighttime retroreflection) on traffic sign, high visibility clothing, conspicuity tape and license plate.
The advanced optical system can measure up to 5 (five) simultaneous observation angles.

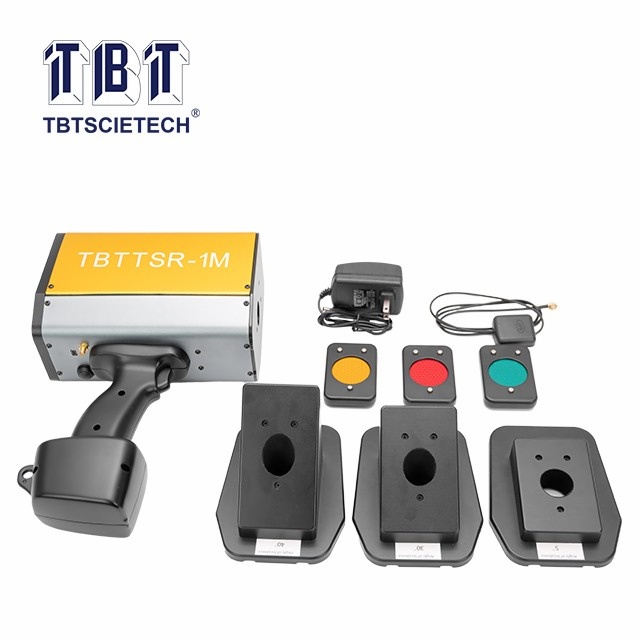

The basic illumination angle (β) can be −4° or 5°, can change different illumination angle via angle adapter and combine with the observation angles simultaneously, thus allows precise determination of retroreflection according to international standards.

ASTM E1709, ASTM E2540, ASTM E1809, EN 12899, EN ISO 20471, GOST 52290, GOST 32945, GOST 50577

1.Equipped with an imported sensor to ensure measurement accuracy;

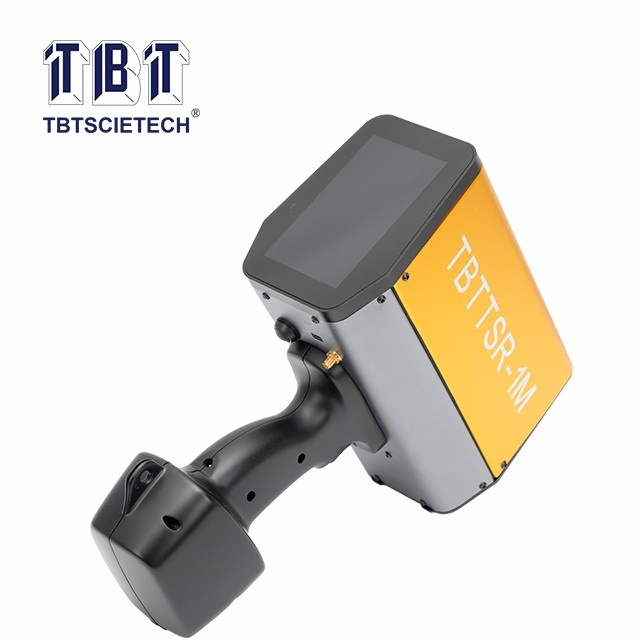

2.Color touch screen for real-time information display;
3.Real-time voice broadcast for test data;
4.Multi angle selection for observation angle and illumination angle;

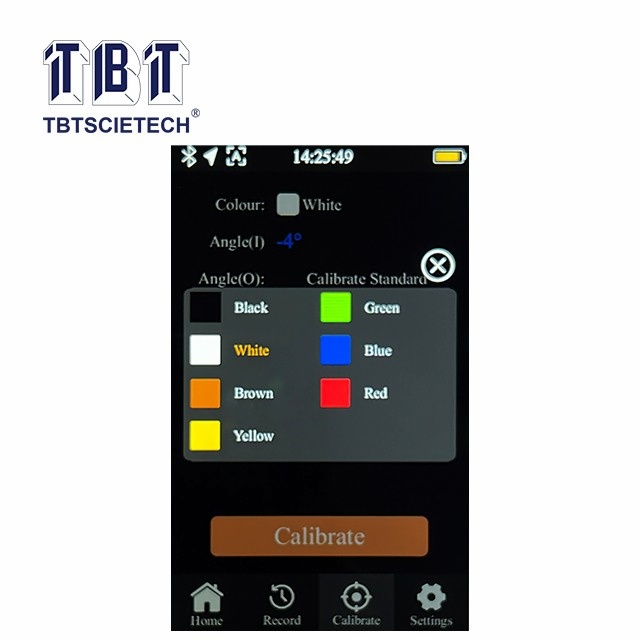

5.Auto angle recognition and auto color recognition functions;

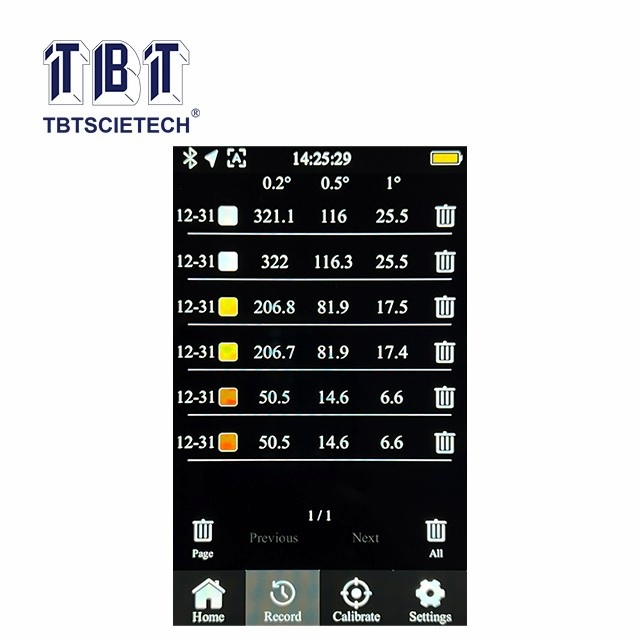

6.Average calculation function;
7.Bluetooth printer, USB port for exporting test data to PC
8.Multi-language interface available.

Measurement range

0~4000 (cd•lx-1•m-2)

Observation angle

Standard 3pcs angles of 0.2°, 0.33°, 0.5°, 1°, 1.5°, 2°

Customized 4/5pcs angles of 0.2°, 0.33°, 0.5°, 1°, 1.5°, 2°

Illumination angle

Standard 3pcs angle of -4°, 5°, 10°, 15°, 20°, 30°, 40°, 45°

Customized 4/5/6/7pcs angles of -4°, 5°, 10°, 15°, 20°, 30°, 40°, 45°

Measuring area

Diameter 25mm

Light source color temperature

2856K±50K(standard A light source)

Data storage

28GB

Screen

5 inch colorful touch screen

Battery working time

>30h

Battery capacity

12V/5.2Ah

Charger

DC 15V

Working temperature & humidity

-15℃~+60℃; <98%RH, no frost

Size

Approx. 230x110x330mm

Weight

Approx. 2kg
