Retroreflectometer for Road Marking TBTRMR-1C

  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking

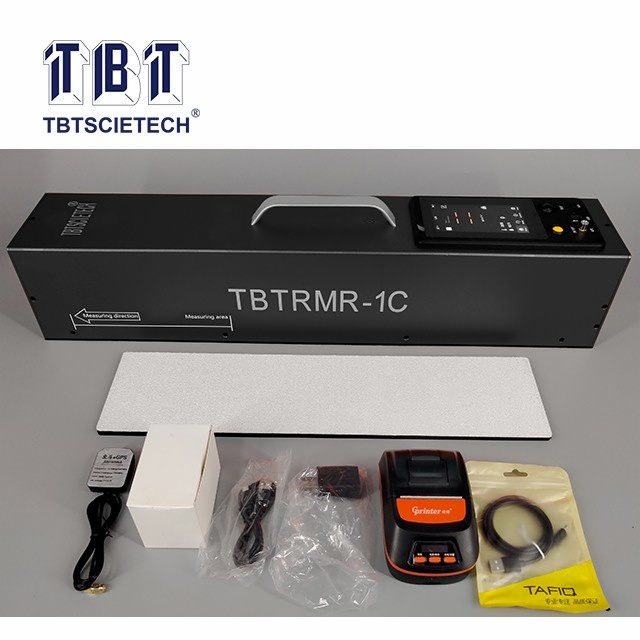

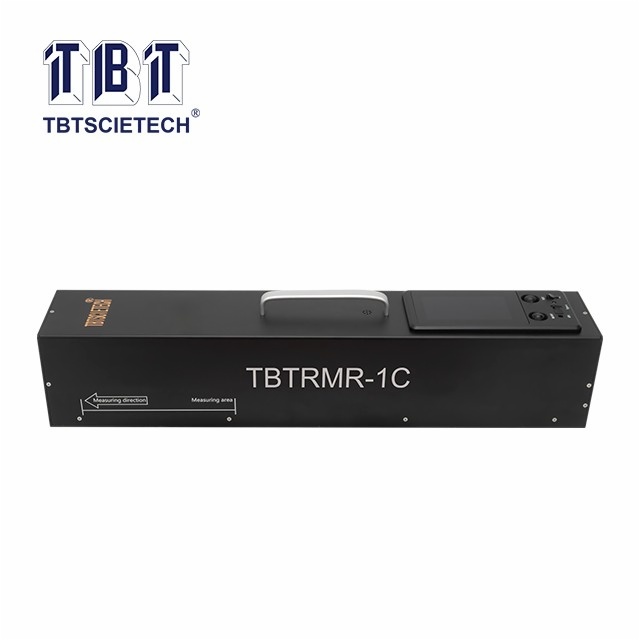

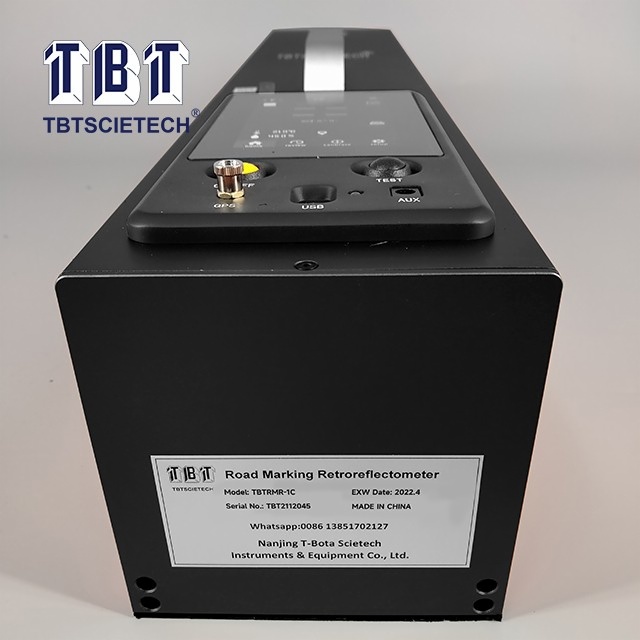

Item Code:TBTRMR-1C Features:TBTRMR-1C is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic. It supports simultaneously measure index of night visibility(RL), temperature and humidity efficiently.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTRMR-1C is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic.

It supports simultaneously measure index of night visibility(RL), temperature and humidity efficiently.

ASTM E1710, EN 1436

1.Equip with imported sensor;
2.Touch screen real-time display temperature and humidity;
3.Ultrafast retroreflectometer measurement;
4.Real-time broadcasting of test data;
5.USB port for test data exporting to computer;
6.Mini Bluetooth printer;
7.GPS for longitude and latitude for each test data;
8.English software or customized language are available.

Measurement items

Retroreflective coefficient (mcd•m-2•lx-1)

Measurement range

RL(mcd•m-2•lx-1): 0~4000

Illumination angle RL

ASTM E1710: 88.76°

EN 1436: 1.24°

Observation angle RL

ASTM E1710: 1.05°

EN 1436: 2.29°

Light source color temperature

2856±50K

Error of repeatable measurement

≤2%

Continuous working time of battery

>30h

Data storage space

More than 100,000 data

Built-in battery capacity

12V / 5.2Ah

Charger

DC 15V

Ambient temperature

-15℃~+60℃

Ambient humidity

<98%, no frost

Measurement

Around 700mm x 140mm x 140mm

Weight

Around 5KG
