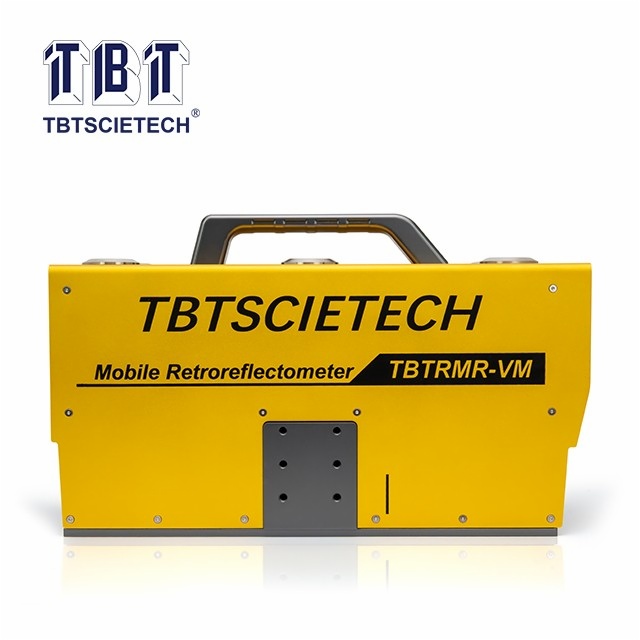

Item Code:TBTRMR-VM Features:TBTRMR-VM Mobile Retroreflectometer for Road Marking provides continuous and efficient assessment and full overview of the condition of the road markings at traffic speed without blocking traffic. The detection efficiency is much higher than the traditional handheld retroreflective measurements.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTRMR-VM Mobile Retroreflectometer for Road Marking provides continuous and efficient assessment and full overview of the condition of the road markings at traffic speed without blocking traffic. The detection efficiency is much higher than the traditional handheld retroreflective measurements.

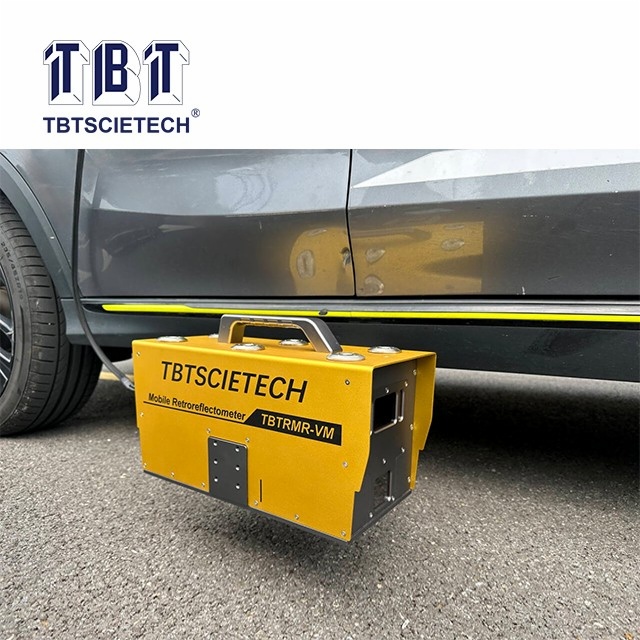

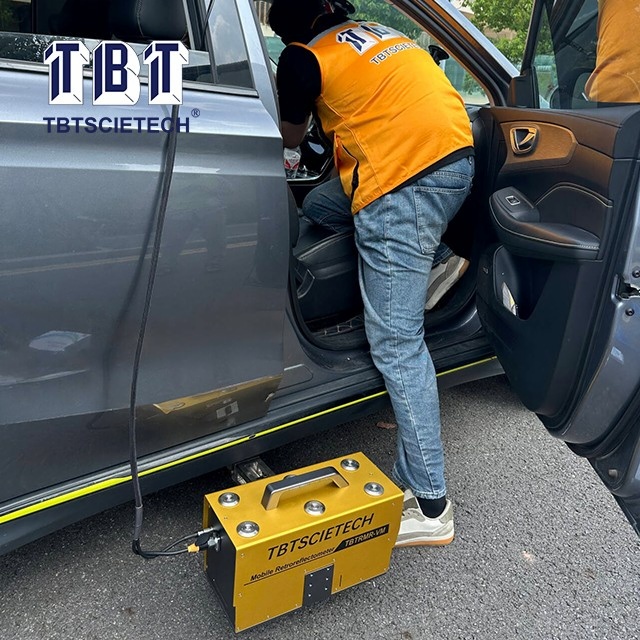

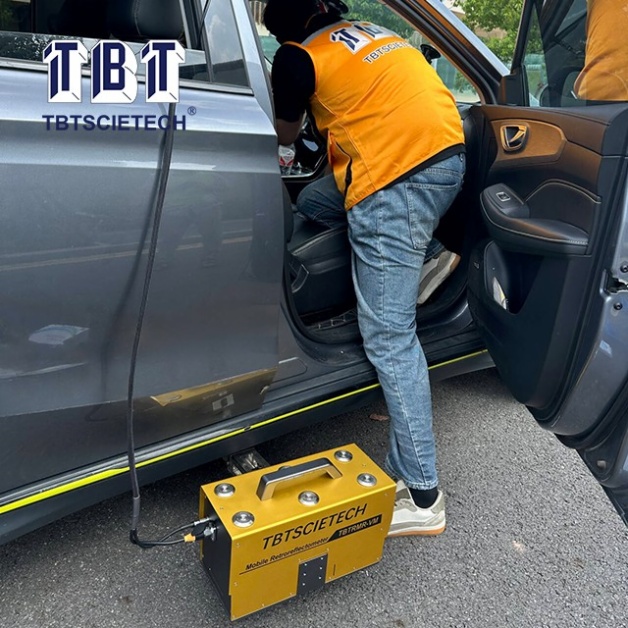

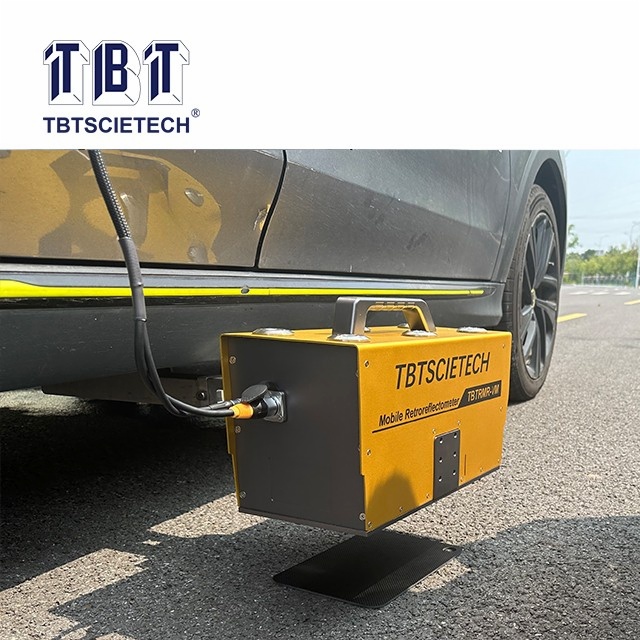

The system is mainly composed of host, computer processing system and DMI (distance measuring wheel).

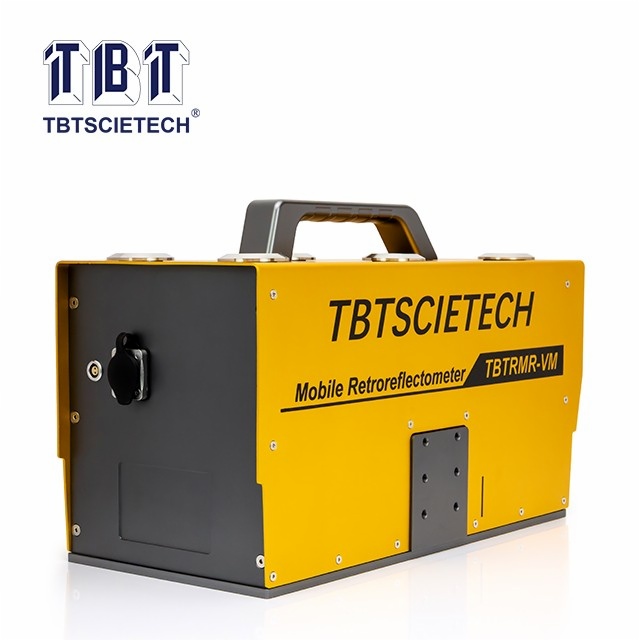

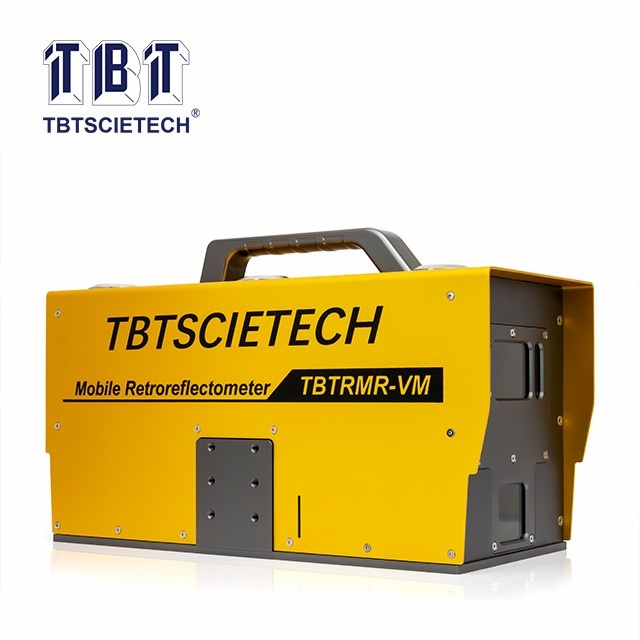

The host is consist of optical measurement system, control system, imaging driver assistance system, height / tilt compensation system and Beidou positioning antenna.
ASTM E1710(RL)
1. Compact and light in weight, quick for installation and removal;
2. Automatic angles calibration, automatic detect marking width;
3. High-precision positioning of Beidou system, real-time map data updating;
4. Providing panoramic images of road marking conditions, user can draw marking maintenance maps and marking asset management map basing on the inspected data;
5. Can work 24/7 except for severe weather such as ice, snow and stagnant water;
6. Come with high-precision pulsed-laser ranging device (12-bit gray-scale line scanning camera);

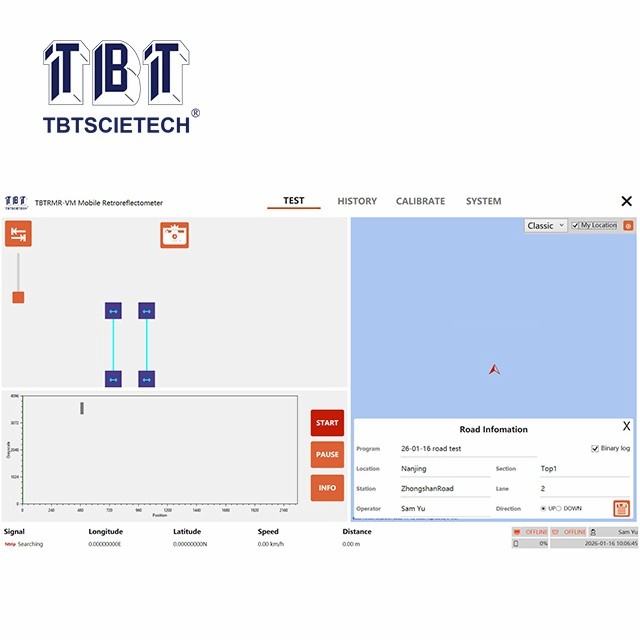

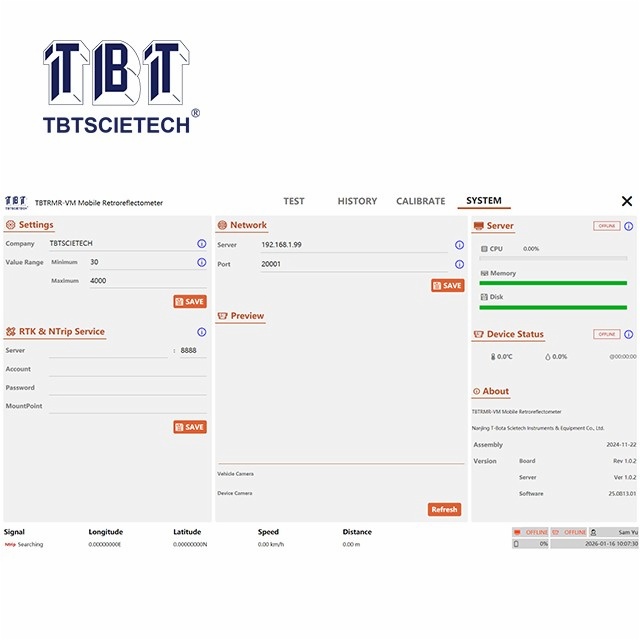

7. Data collected by laptop;
8. Large-capacity data storage supports expansion and data exportation;
9. Super-capacity rechargeable lithium battery supports continuous work for 300KM test. The device also can be outlet to the vehicle power system;
10. Drive in the middle of lane and simultaneously measure double lines with individual RL values each.

Simulated observation distance

30m

Measurement distance

6m

Measurement width

1200mm

Measurement range length

500mm

Light source

Infrared laser

Measurement rate

300 pictures/s of a line

Measuring interval

<100mm

Entrance & illumination angle

ASTM E1710: 88.76°

EN 1436: 1.24°

Observation angle

ASTM E1710: 1.05°

EN 1436: 2.29°

RL measuring range

0~2000 mcd•m-2•lx-1

Data repeatability

<5%

Indication error

<10%

Light source life

>10000 hours

Front camera

Yes

Positioning system

BDS / GPS

Host unit size

570 x 164 x 209(mm)

Weight

<10Kg

Operating temperature

-20~55°C

Operating humidity

Non-condensing

Distance measurement error

1‰

Support vehicle speed

0-120km/h

Data export format

Database

Power supply

Built-in lithium battery

System

Win 10
