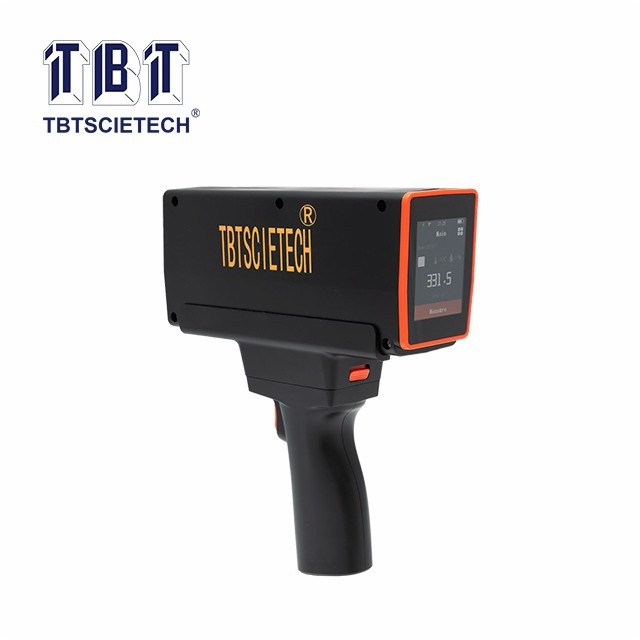

Single Angle Retroreflectometer for Traffic Signs TBTTSR-1J

  • Single Angle Retroreflectometer for Traffic Signs
  • Single Angle Retroreflectometer for Traffic Signs
  • Single Angle Retroreflectometer for Traffic Signs
  • Single Angle Retroreflectometer for Traffic Signs
  • Single Angle Retroreflectometer for Traffic Signs
Item Code:TBTTSR-1J Features:TBTTSR-1J adopts single observation angle and illumination angle for measuring RA(nighttime retroreflection) on traffic sign, high visibility clothing, conspicuity tape and license plate.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTTSR-1J adopts single observation angle and illumination angle for measuring RA(nighttime retroreflection) on traffic sign, high visibility clothing, conspicuity tape and license plate.
For demand of multi-angle version, you can select TBTTSR-1M.

ASTM E1709, ASTM E1809, ASTM E2540

1.Equip with imported sensor to ensure accuracy of measurement;

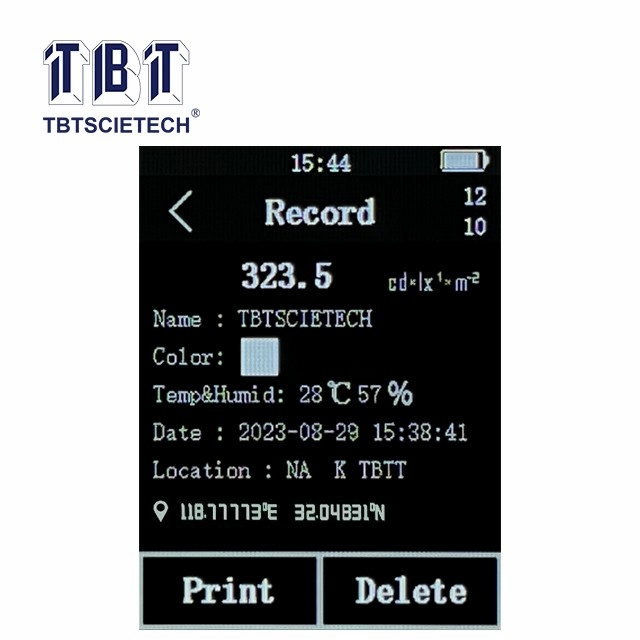

2.Colour touch screen real-time display temperature and humidity;
3.Ultrafast retroreflection measurement;
4.USB port for test data exporting to computer;

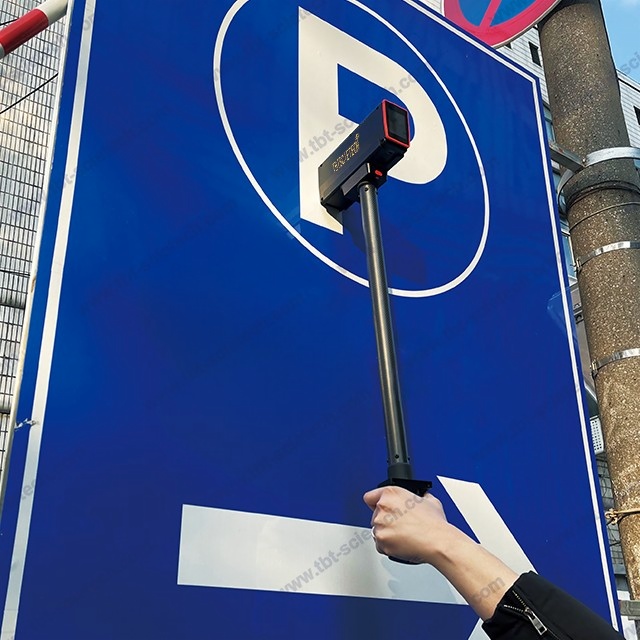

5.Support connect with extension rod, Bluetooth printer and GPS;
6.Multi-languages are available.

Measurement items

Retroreflective coefficient (cd•lx-1•m-2)

Measuring range

0~4000(cd•lx-1•m-2)

Observation angle

Standard angle: 0.2° (Any one from 0.2°, 0.33°, 0.5°, 1°)

Illumination angle

Standard angle: -4° (Any one from -4°, 5°, 10°, 20°, 30°, 40°, 45°)

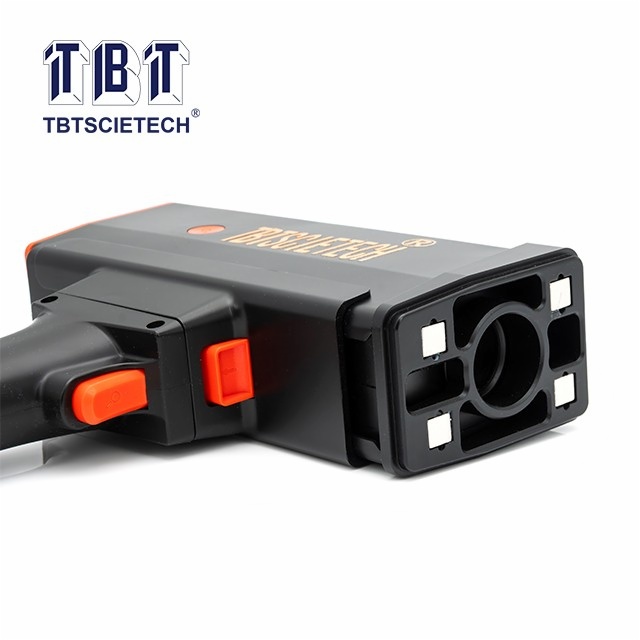

Measuring area

φ25mm

Light source color temp.

2856±50k(standard A light source)

Measuring time

≈2s

Data storage

4GB

Screen

3.5inch colorful touch screen

Battery working time

>30h

Batter capacity

12V/5.2Ah

Ambient temperature & humidity

-15℃~+60℃, <98%, no frost

Size

Around 200x75x55mm

Net weight

Around 0.45KG
