Retroreflectometer for Road Marking TBTRMR-2J

  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking
  • Retroreflectometer for Road Marking

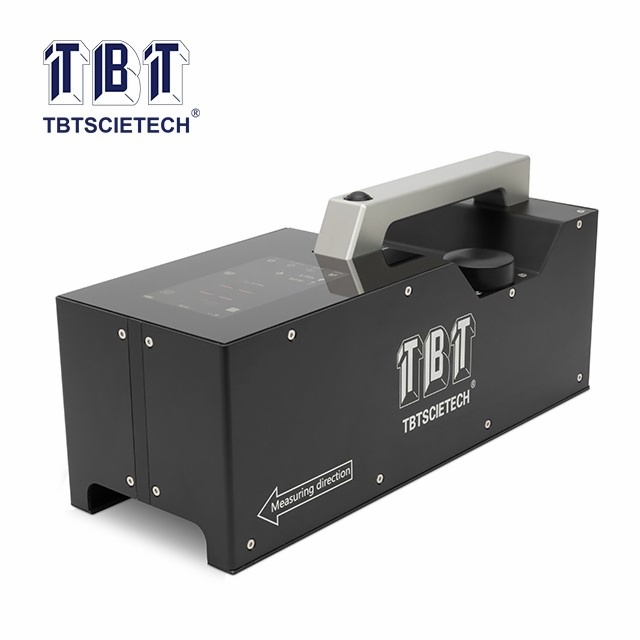

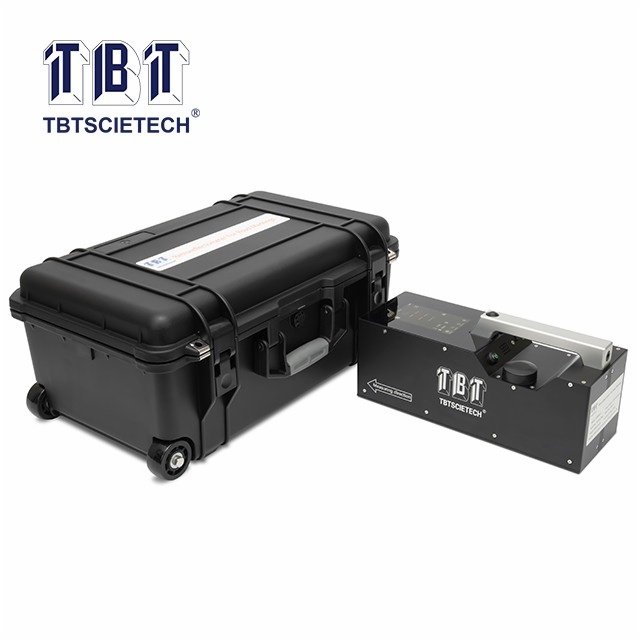

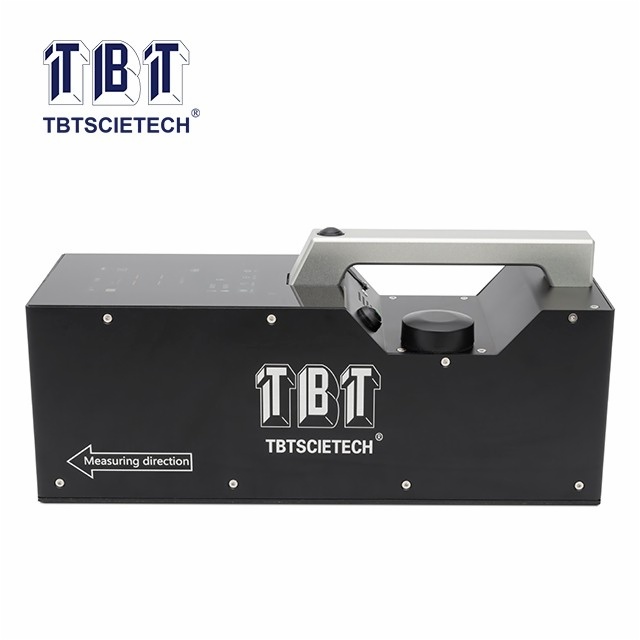

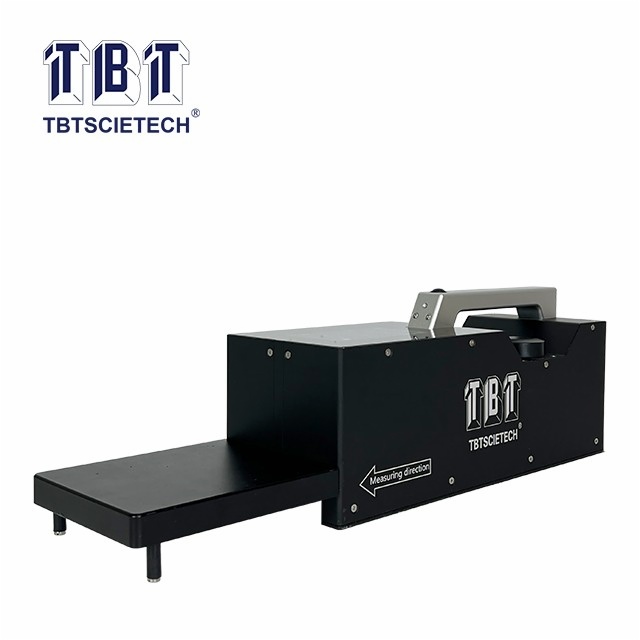

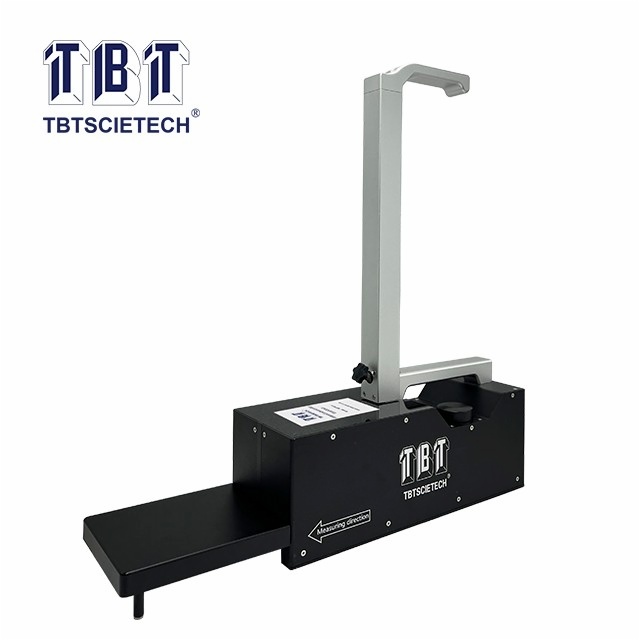

Item Code:TBTRMR-2J Features:TBTRMR-2J is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTRMR-2J is a portable on-site instrument which simulate the brightness of road and airport marking that can be seen by the driver under the illumination of motor vehicles, and determine the retroreflection characteristic.
It supports simultaneously measure index of night visibility(RL), RL under standard conditions of continuous wetting and conditions of rain using a rain simulator, temperature and humidity efficiently.

ASTM E1710(RL), ASTM E2177(RL wet), ASTM E2832(RL continuous wetting), EN 1436

1. Open-optical-path design for measuring RL under dry, wet and continuous rainfall conditions;

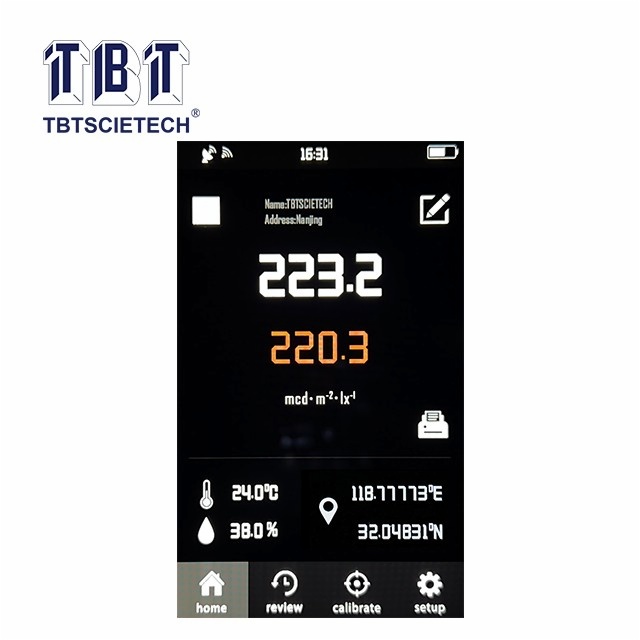

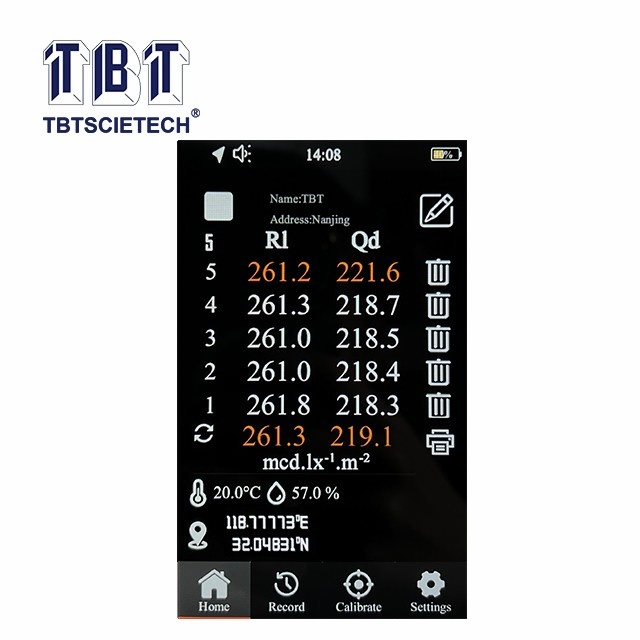

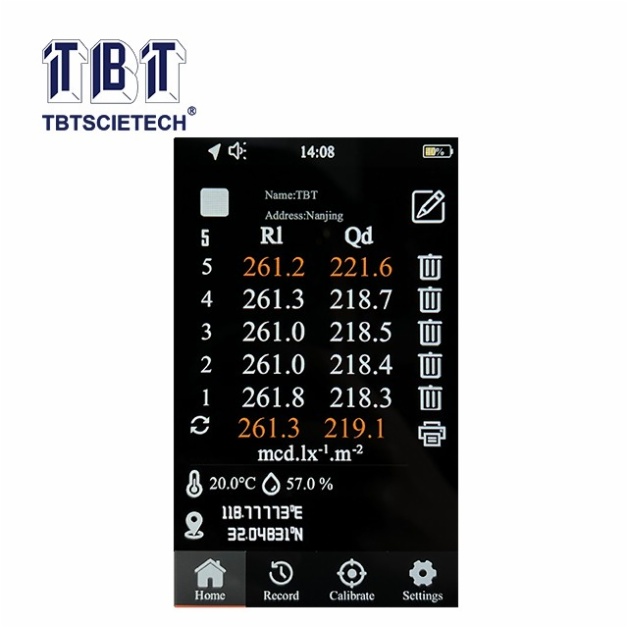

2.Touch screen real-time display temperature and humidity;
3.Ultrafast retroreflectometer measurement;
4.Real-time broadcasting of test data;
5.USB port for test data exporting to computer;
6.Mini Bluetooth printer;
7.GPS for longitude and latitude for each test data;
8.Multi-language is available.

Measurement range

RL(mcd•m-2•lx-1): 0~4000

Qd(mcd•m-2•lx-1): 0~400 (if Qd test module is ordered)

Equivalent observations distance

30m

Illumination angle RL

ASTM E1710: 88.76°

EN 1436: 1.24°

Observation angle RL

ASTM E1710: 1.05°

EN 1436: 2.29°

Light source color temperature

2856±50K

Error of repeatable measurement

≤2%

Continuous working time of battery

>30h

Data storage space

More than 100,000pcs records

Built-in battery capacity

12V / 5.2Ah

Charger

DC 15V

Working temperature & humidity

-15℃~+60℃; <98%RH, no frost

Size

Approx. 360x135x125mm

Weight

Approx. 4kg
