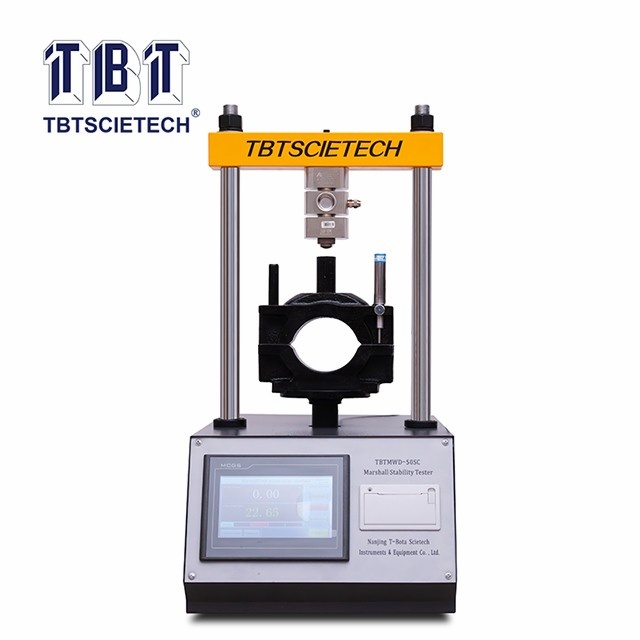

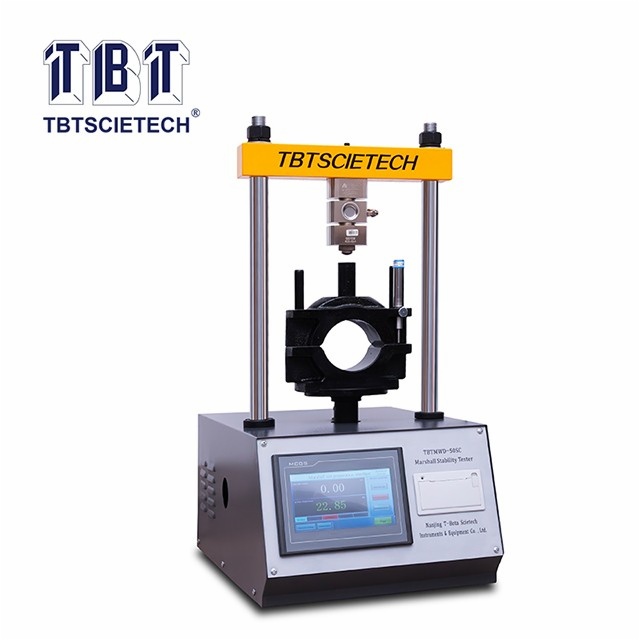

    Marshall Stability Tester with Touch Screen Display TBTMWD-50SC

    • Marshall Stability Tester with Touch Screen Display
    • Marshall Stability Tester with Touch Screen Display
    • Marshall Stability Tester with Touch Screen Display
    Marshall Stability Tester with Touch Screen Display
    Marshall Stability Tester with Touch Screen Display
    Marshall Stability Tester with Touch Screen Display
    Item Code:TBTMWD-50SC Features:TBTMWD-50SC is used to determine the stability and flow value of asphalt mixture, which is compressed under certain temperature and speed.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTMWD-50SC is used to determine the stability and flow value of asphalt mixture, which is compressed under certain temperature and speed.

    ASTM D1559

    1. Rigid frame for high test force;

    2. Touch screen for easy control;

    3. Display load-displacement curve in real time;

    4. Build in printer for printing test report;

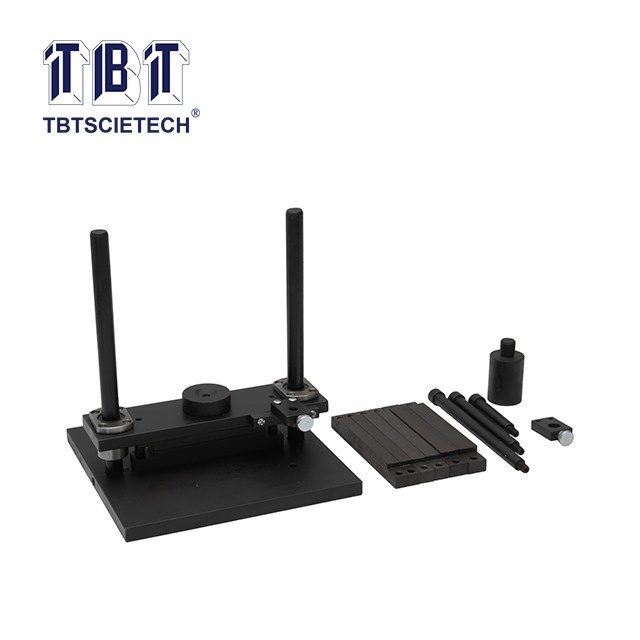

    5. Optional fixture for splitting test.

    Max. Capacity

    50KN

    Loading speed

    50±5mm/min

    Load cell capacity

    50kN S-type

    Controller

    Touch screen with built-in printer

    Specimen size

    Diameter 101.6mm / 152.4mm

    Power supply

    220VAC 50/60Hz, 600W
