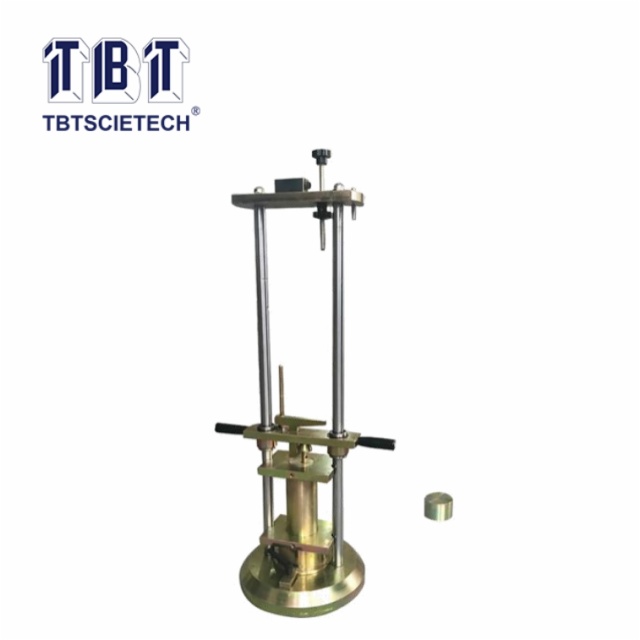

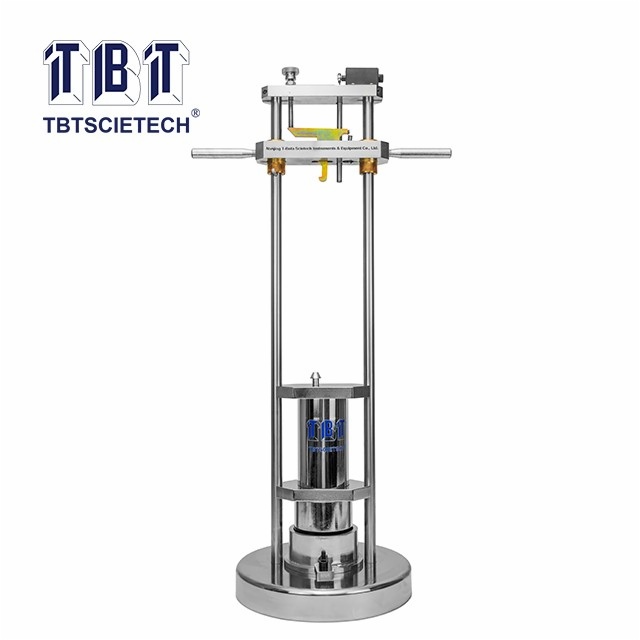

Aggregate Impact Tester TBTV-1

Item Code:TBTV-1 Features:
  • Description
  • Main Specifications
  • Accessories

The apparatus has been designed in a particularly heavy duty form, with specially hardened steel surfaces for minimum wear.

The assembly is heavily plated to ensure corrosion resistance and forms a rigid frame around the quick-release trigger mechanism which ensures an effective free fall of the hammer when released.

A built-in counter automaically indicates the numebr of belows delivered.



Impact hammer weight

13.75kg±0.25kg

Height of the falling hammer

380±5mm

Impact cup

102×50mm

Test sieve

15.0mm  10.0mm   2.50mm

circular section metal straight stick

10×230mm, one part is semicircle

Gauge metal cylinder

(75±1)×(50±1)mm
