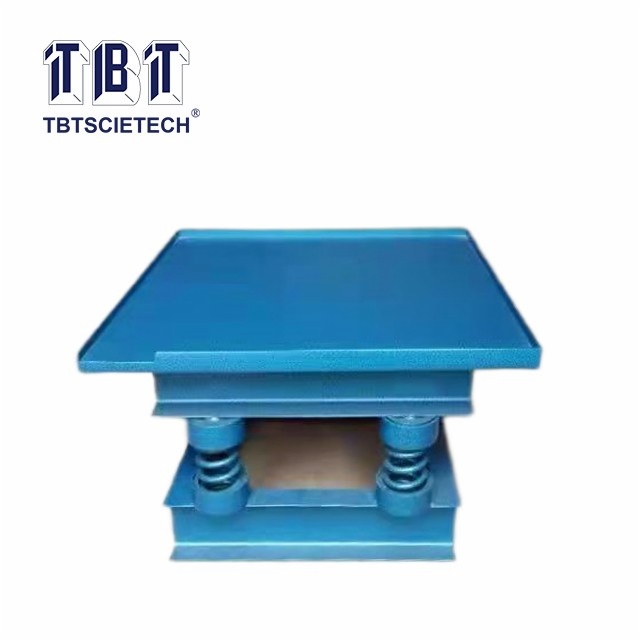

    Vibration Table TBTZT-500

    Vibration Table
    Item Code:TBTZT-500 Features:TBTZT-500 vibration table is mainly composed of a joint surface, a chassis, a vibrator, a spring and other components.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBTZT-500 vibration table is mainly composed of a joint surface, a chassis, a vibrator, a spring and other components.
    The joint surface and the chassis are welded with steel plates and section steel.
    The hanger coupling is installed at the center position of the mixing surface (reverse surface), and plays a role in
    a stable and vertical direction during the vibrating process.



    Table size

    500×500mm

    Max capacity

    75Kg

    Amplitude (without load)

    0.3~0.6 mm

    Vibrating Frequency

    2860r/min

    Power

    370W
