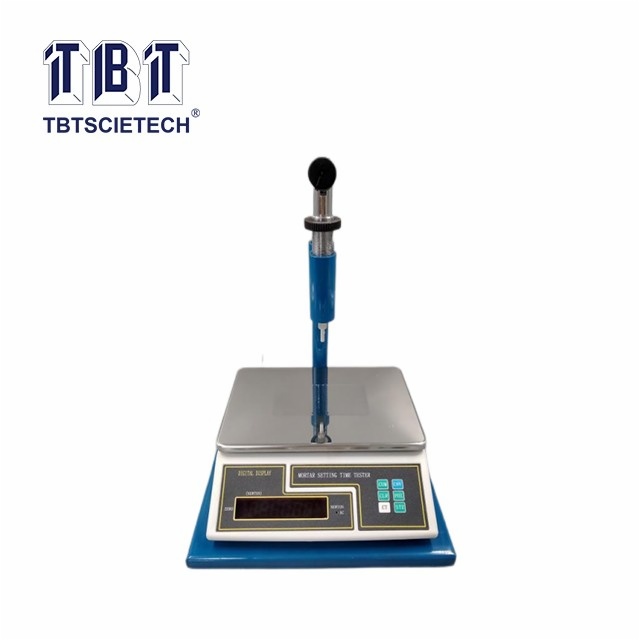

Mortar Setting Time Tester TBTMST-100

Item Code:TBTMST-100 Features:TBTMST-1000 is suitable for setting the setting speed and setting time of wall mortar and wall mortar in terms of penetration resistance. The mortar setting time tester is one of the special equipments for various construction research institutes and laboratories of colleges and universities.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTMST-1000 is suitable for setting the setting speed and setting time of wall mortar and wall mortar in terms of penetration resistance. The mortar setting time tester is one of the special equipments for various construction research institutes and laboratories of colleges and universities.

Measurement range

0~100N

Accuracy

1%

Resolution

0.5N

Max. stroke

50mm

Needle cross area

30mm2

Mould inner diameter and height

140×75mm
