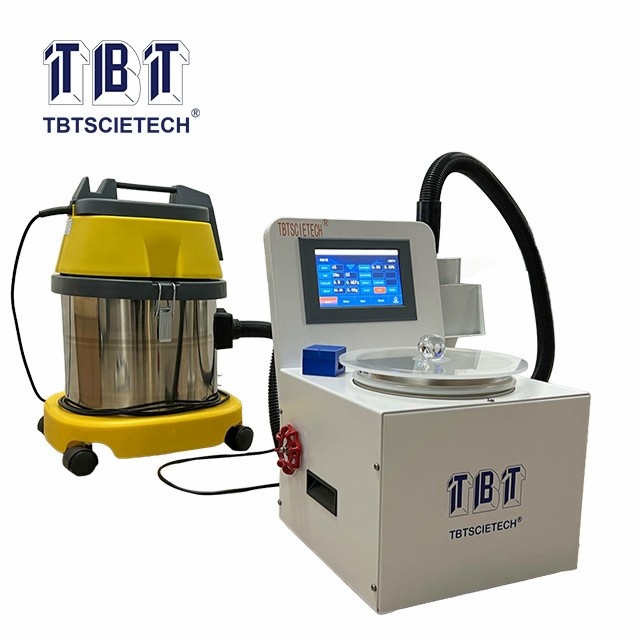

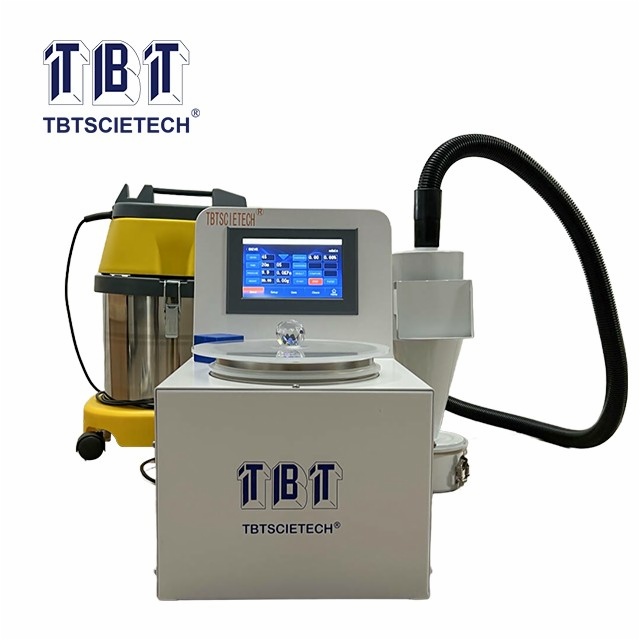

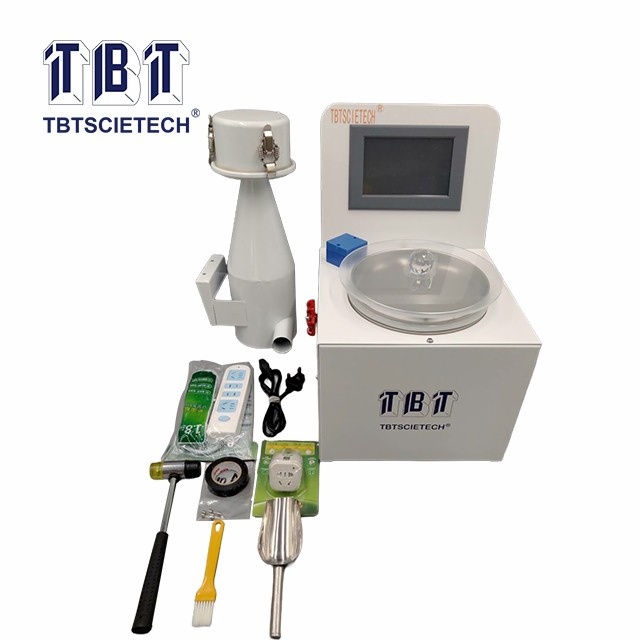

Air Jet Sieve System TBTAIR-200

  • Air Jet Sieve System
  • Air Jet Sieve System
  • Air Jet Sieve System
Item Code:TBTAIR-200 Features:TBTAIR-200 adopts a high-end electronic vortex generator imported from the USA. With the combination of a negative pressure generator, an air jet sieve produces fines.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTAIR-200 adopts a high-end electronic vortex generator imported from the USA. With the combination of a negative pressure generator, an air jet sieve produces fines.
The dense, sensitive and strong negative pressure air vortex, the vortex drives the powder through the air jet sieve nozzle and rises until it collides with the sieve cover.
The powder removed from the agglomerated particles is re-absorbed by the vortex to the standard test sieve in the order of size. The smaller particles pass through the screen and are stored in the sample collector (optional) or negative pressure generator (vacuum cleaner), the larger particles are left on the standard test sieve. The whole sieved process, the electronic vortex generator always controls all the powder particles in the working area, strictly according to the order of size to carry out the whole body.
The three-dimensional movement perfectly realizes the perfect sieving theory: first classification and then sieving. Replace the standard sieve with different meshes and sieve in sequence
Finally, the results of the particle size distribution of the powder particles are obtained.
1.The built-in American high-end vortex generator can throw materials in three-dimensional and all-round way, realize the pre-classification of particles, and pass through the sieving one by one, which is fully optimized screening efficiency;
2.Effectively solve the inability to perform manual or mechanical screening or direct screening due to the characteristics of particles easy to float, easy to be damp, easy to agglomerate, easy to static electricity, easy to block the screen, etc.;
3.Connect to the problem of unsatisfactory sieving repeatability, and ensure that the repeatability and reproducibility of sieving particle size reach the analysis level;
4.The screen time is set on the touch screen, and the test can be automatically stopped;
5.The touch screen displays real-time pressure, which can be adjusted at any time.

Update function

Can be upgraded to intelligent instruments at any time

Operation

One-key access to the operation system

Setting method

Touch to set the sieving time on the sieving interface to start sieving

Stop method

The screening process can be touched to stop the test;

The device automatically stops working when reaches the set time

Airflow pressure

It can be displayed, monitored & arbitrarily adjusted in real time

Motor type

Precision stepping motor

Measuring range

20~5,000um

Accuracy & repeatability error

<1%

Rotation speed of screen nozzle

Fixed 18rpm

Range of negative pressure sensor

0~10kPa

Timing range

0~99minutes 59seconds

Size & weight

35x35x58cm/11.8kg

Power supply

220V, 50Hz
