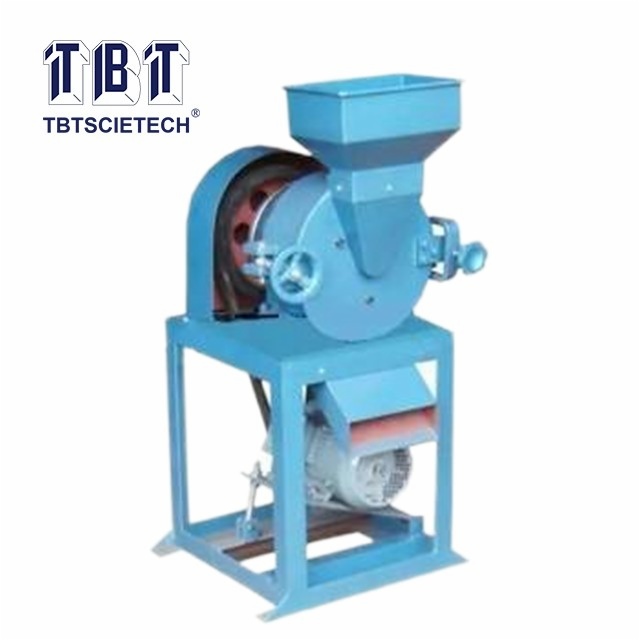

    Vertical Type Disc Mill TBT-D175

    Vertical Type Disc Mill
    Item Code:TBT-D175 Features:TBT-D175 is used for grinding or crushing materials. Vertical disc mills are known for their energy efficiency and compact design, often finding use in industries like cement production and fine grinding applications.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-D175 is used for grinding or crushing materials. Vertical disc mills are known for their energy efficiency and compact design, often finding use in industries like cement production and fine grinding applications.
    They are characterized by a rotating disc and rollers (in some designs) where material is ground between the disc and the rollers or the disc and a stationary surface.

    Disc diameter

    φ175mm

    Feed particle size

    ≤6mm

    Discharge granularity

    0.1mm

    Crushing ability

    25kg/hour

    Motor

    1.1KW

    Outside dimension

    750x550x400mm

    Weight

    Around 100kg
