Standard Vicat Apparatus TBTVC-1

  • Standard Vicat Apparatus
  • Standard Vicat Apparatus

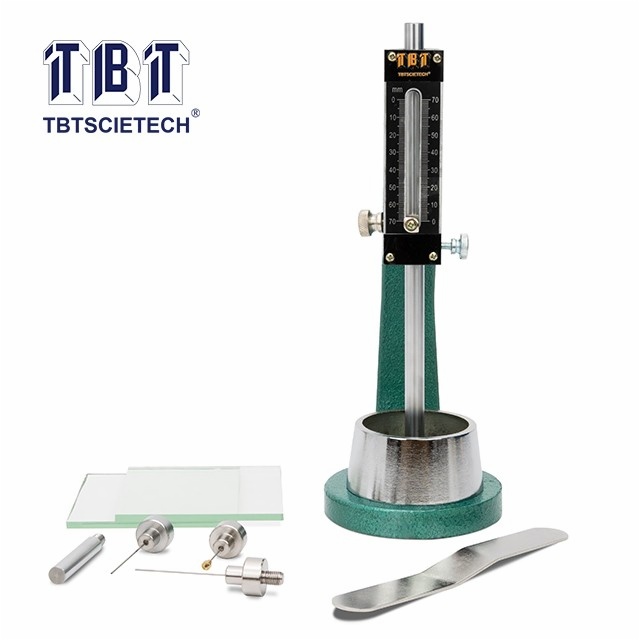

Item Code:TBTVC-1 Features:TBTVC-1 is used to determine the consistency & setting time, the Vicat frame consists of a metal stand with a sliding rod, an adjustable indicator moves over a graduated scale, the needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

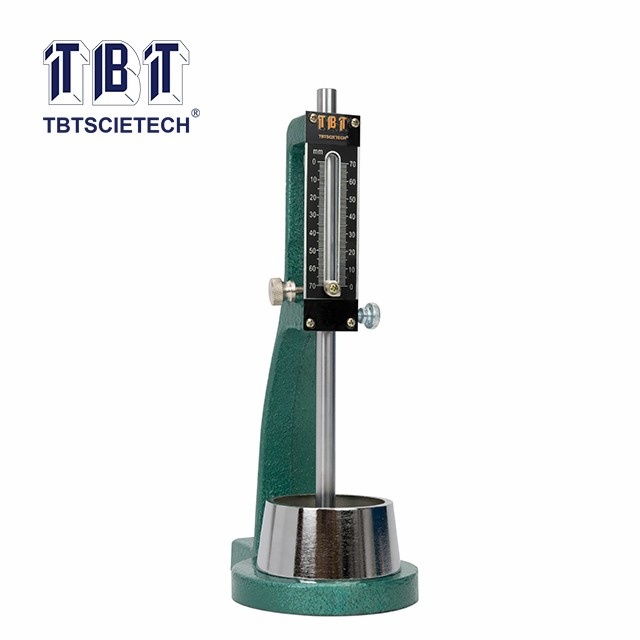

TBTVC-1 is used to determine the consistency & setting time, the Vicat frame consists of a metal stand with a sliding rod, an adjustable indicator moves over a graduated scale, the needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g. The test is performing different penetrations in the specimen during the period of time that goes from the forming inside the special mold to the hardening of the mixture.



ASTM C187, ISO 9597

1.Rigid frame for long term use;
2.Provide full kit for testing.

Total weight of the sliding unit

300g

Max. stroke of the sliding unit

70mm

Diameter of test rod

10mm

Diameter of test needle

1.13mm

Overall size(L*W*H)

170*110*300mm

Net weight

3.8kg
