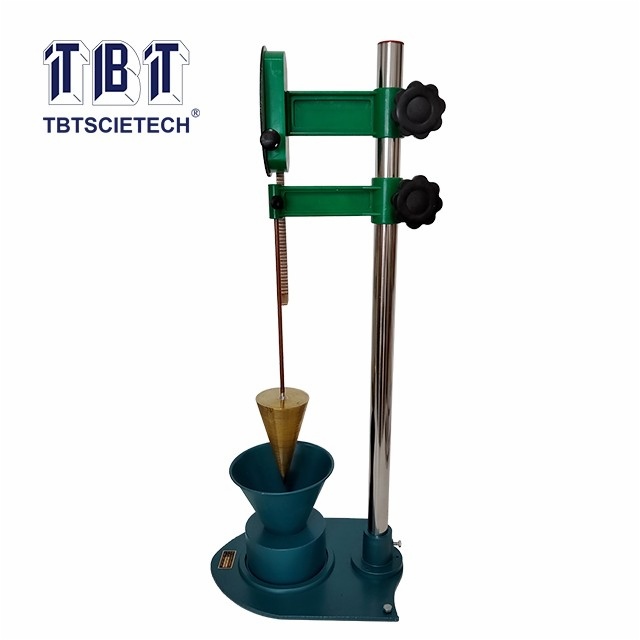

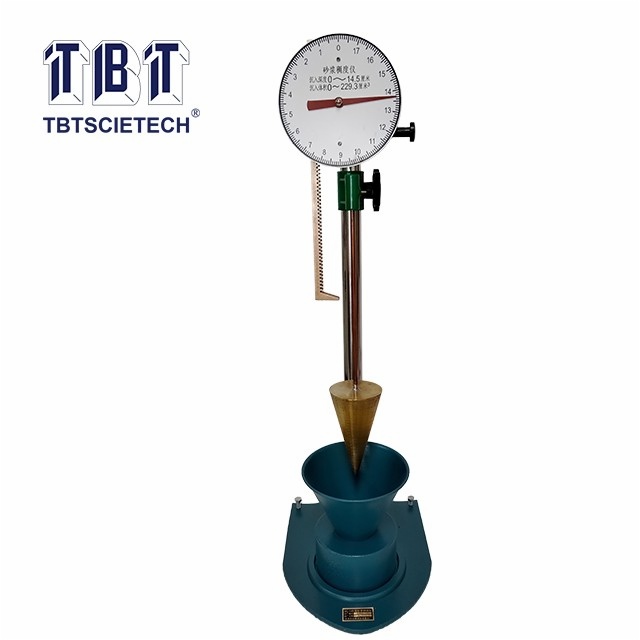

Cement Paste Consistometer TBTSC-145

  • Cement Paste Consistometer
  • Cement Paste Consistometer
Item Code:TBTSC-145 Features:TBTSC-145 is measure the fluidity of cement (sands) slurry. It fit use for measure the outflow of cement (sands) slurry time less than 14~18 seconds.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTSC-145 is measure the fluidity of cement (sands) slurry. It fit use for measure the outflow of cement (sands) slurry time less than 14~18 seconds.
Cement main use the silicate and ordinary cement. When user use slag cement please strict to check so that prevent its characteristic don’t steady cement grade can’t less than No. 425.

It adopts rubber stop instead of value improve the test precision.

Accept container

Min. capacity is 2000ml

Ring frame or other device

It’s one kind device which can keep the top of container flow prick apeak and steady displace

Level rule

Wood-worker use level rule or similar level rule

Stopwatch

Min. show rubber stopper less than 0.1second

Measuring range

Sinking depth: 0~14.5 cm

Sinking volume: 0~229.3 cm3

The min. scale value (submersion degree)

1 mm



Cone geometric parameters

Cone angle: 30°; Height: 145 mm;

Diameter of cone base: 75 mm

Combined weight of cone and scale

300±2g

Dimensions

350×300×800 mm
