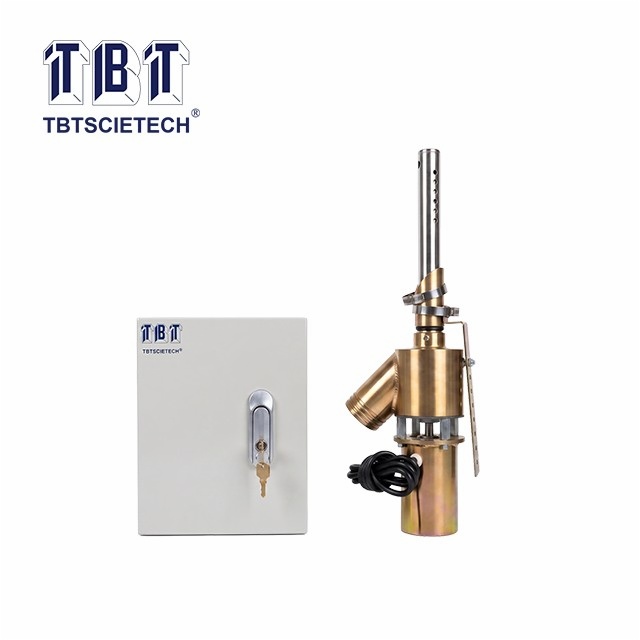

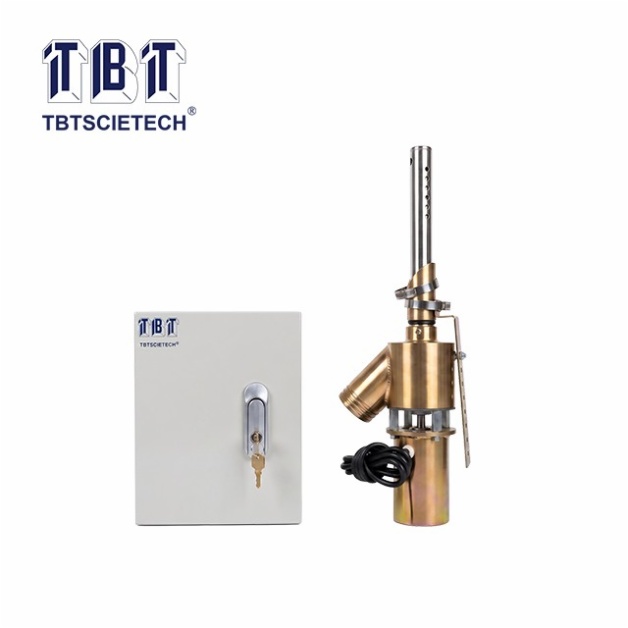

Automatic Cement Sampler TBTACS-30F

Item Code:TBTACS-30F Features:TBTACS-30F is developed with linear motor technology combined with modern electronic control technology. Adopting a structure without any rotating parts, the feed rod performs direct reciprocating sampling driven by the linear motor.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTACS-30F is developed with linear motor technology combined with modern electronic control technology.
Adopting a structure without any rotating parts, the feed rod performs direct reciprocating sampling driven by the linear motor. It is widely used for uniform automatic sampling in production lines of cement, coal, electric power, chemical, food and other industries.
1.Driven by a linear motor with no rotating components, ensuring a simple and compact structure;
2.Direct reciprocating sampling via the feed rod allows for easy installation and operation;
3.Fully enclosed design effectively prevents dust emission, ensuring a clean and environmentally operation;
4.Equipped with an anti-jamming mechanism, eliminating the risk of motor burnout during continuous running;
5.Sampling quantities are infinitely adjustable (stepless) to flexibly meet diverse production requirements;
6.Delivers stable performance with a low failure rate and minimal maintenance costs.

Sampling material

Powder

Installation angle

45°

Feed pipe length

230mm or customized

Sampling capacity

0~5~20kg adjustable

Working pressure

Normal pressure / slight negative pressure

Optimal installation position

Discharge chute or both ends of screw conveyor

Sampler size

400x90x450mm

Controller size

134x93x38mm

Power supply

220V/380V, 50Hz
