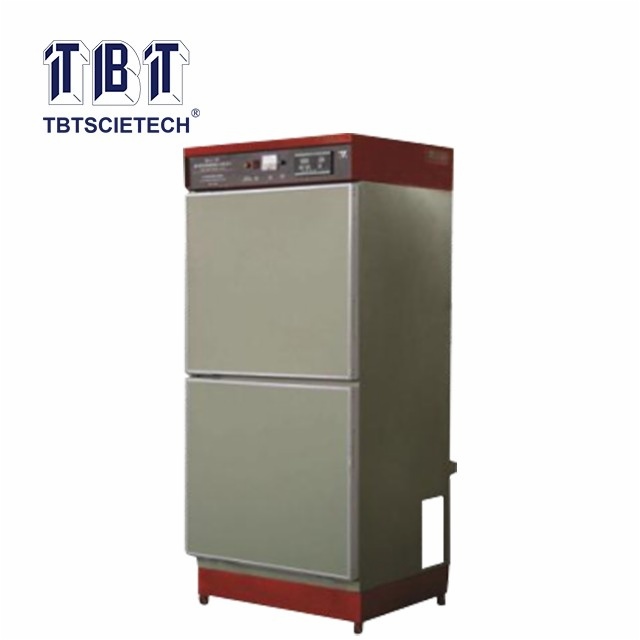

Constant Temperature & Humidity Curing Cabinet HBY-40A

Item Code:HBY-40A Features:HBY-40A curing cabinet is designed for curing concrete and cement specimens for strength test in the laboratories of cement plants, concrete mix centers, colleges and universities concerned.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

HBY-40A curing cabinet is designed for curing concrete and cement specimens for strength test in the laboratories of cement plants, concrete mix centers, colleges and universities concerned.



ASTM C109, ASTM C511

1.It adopts R143a environmentally friendly refrigerant to meet European standards.
2.The curing box is made of full stainless steel material.

Effective volume

0.4m³/400liter

Temperature control

20℃(adjustable)

Curing room temperature difference

± 1 ℃

Temperature & humidity control mode

Automatic

Humidity

≥95%

Cooling power

152W

Heater power

400W

Power supply voltage

220V, 50Hz

Internal size

65x58x134cm

External dimension

80x78x179cm

Net weight

Around 170kg

Shelf

1piece small shelf & 5pieces big shelves
