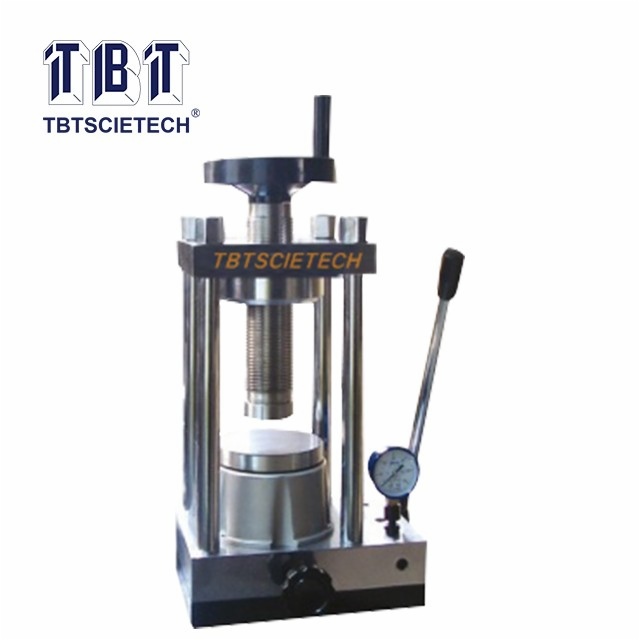

    Manual Pellet Press MPP-24T/30T

    Manual Pellet Press
    Item Code:MPP-24T/30T Features:MPP-24T/30T is a manually operated hydraulic pellet press with particularly simple and safe operation for the preparation of solid samples for X-ray fluorescence analysis or infrared spectroscopy.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    MPP-24T/30T is a manually operated hydraulic pellet press with particularly simple and safe operation for the preparation of solid samples for X-ray fluorescence analysis or infrared spectroscopy.

    1.Compact bench-top design;
    2.High quality material for long term reliability;
    3.Rigid frame brings high stability;
    4.Easy and safe operation;
    5.Piston pressure can be read from the manometer scale.

    Maximum pressure

    24T (0~40Mpa)

    30T (0~35Mpa)

    Piston diameter

    Φ87mm

    Φ105mm

    Maximum piston stroke

    20mm

    Working space

    94x94x140mm

    140x140x150mm

    Pressure stability

    ≤1MPa/5min

    Size

    280×260×500mm

    325×230×550mm

    Weight

    40kg

    50kg
