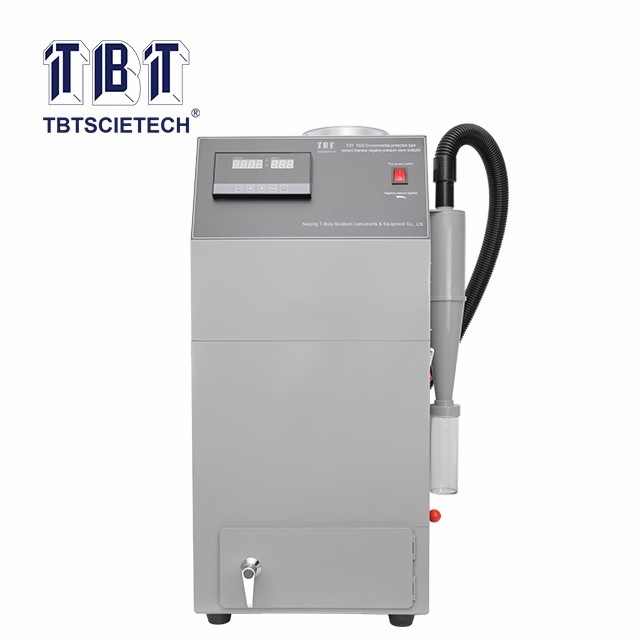

    Cement Negative Pressure Sieve Analysis Device TBTFSY-150D

    Cement Negative Pressure Sieve Analysis Device
    Item Code:TBTFSY-150D Features:TBTFSY-150D can determine the fineness of Portland cement, ordinary cement, pozzolanic cement, flyash cement, etc.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTFSY-150D can determine the fineness of Portland cement, ordinary cement, pozzolanic cement, flyash cement, etc. materials. It consists of screen pedestal, micro motor, vacuum cleaner, cyclone, and electrical control components.

    1.Simple in structure, easy to operate;
    2.High accuracy for blast nozzle speed control;
    3.High efficiency for test.

    Negative pressure

    -4000~-6000Pa

    Blast nozzle speed

    30r/min±2r

    Sieving analysis time

    120s

    Sieving analysis fineness testing

    0.08mm or 0.045mm

    Sieve time automatic controlling adjustable range

    0~6min

    Capacity

    1100W

    Input material

    10~25g

    Power supply

    220VAC, 50Hz

    Net weight

    30kg
