Cement Mortar Rheometer Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTLBY-III is a multi-functional rheometer for the determination of rheological properties of fine construction materials with the maximum particle size of about 5 mm, such as cement slurry, mortar, fine concrete, etc.

It can get the data as below:

● Rheological curves and rheological parameters of materials at a certain temperature

● The relationship between curing behavior and time at a certain stirring rate

● Influence of mixing speed on workability of concrete admixtures and mineral admixtures

ASTM C1749, ASTM C1874

1.PC software control for easy operation, data acquisition and analysis;

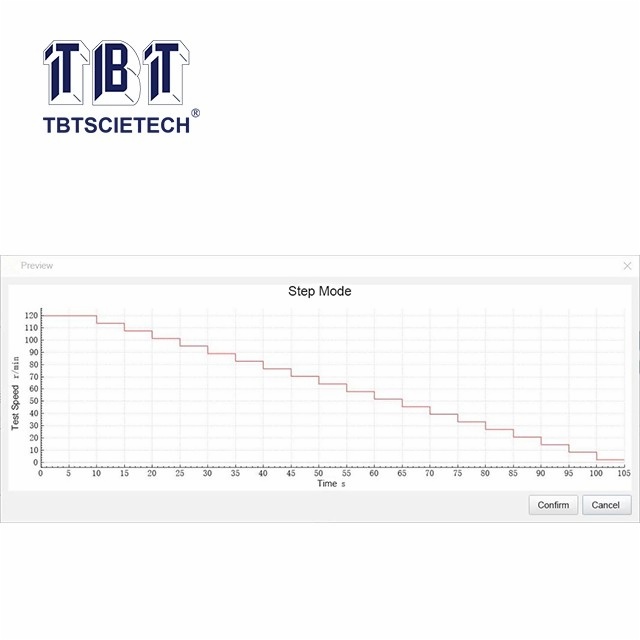

2.Pre-define test steps and run them automatically, test steps can be standardized or customized;

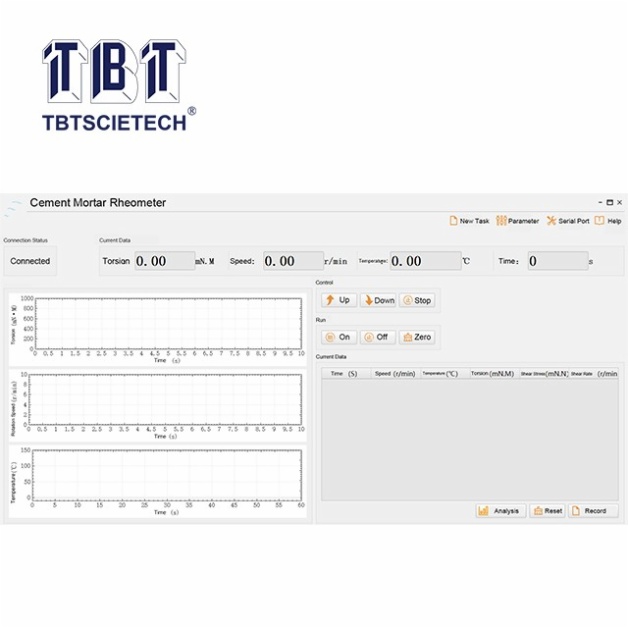

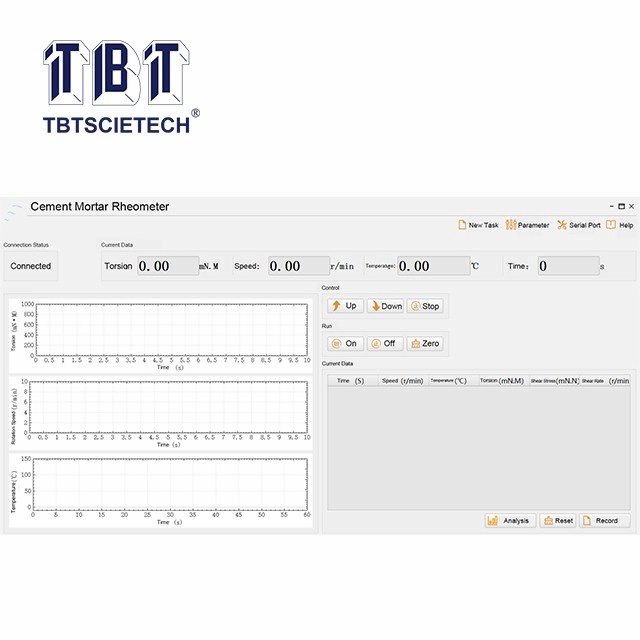

3.It real time displays torque, speed, time and temperature during the test process, and generates rheological curves and stores test results;

4.Can measure non-uniform particles up to dia. 5mm which can be effectively separated by special probe;

5.Rigid structure for industrial environment use.

Maximum particle size	5mm
Motor	High precision servo motor
Speed range	0.01~400rpm
Angle measurement accuracy	Better than ±0.05°
Torque range	-500 to +500N·mm
Torque measurement resolution	Not less than 0.01N·mm
Sampling rate	0.005~60 seconds

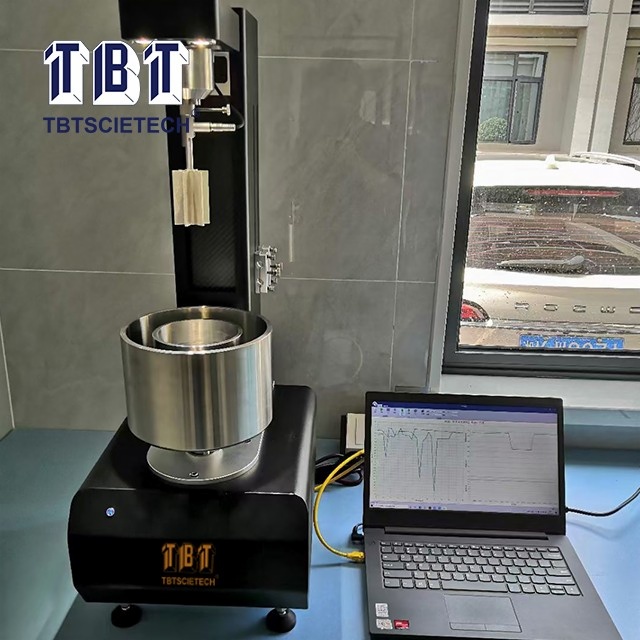

Probe	Two standard probes for mortar and cement slurry, can avoid segregation stratification and settlement, thus could ensure the measurement accuracy

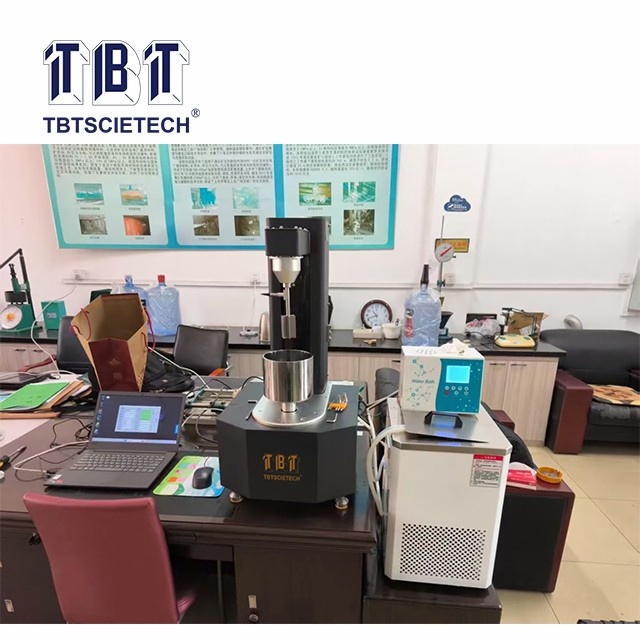

Sample volume	Diameter 100mm, height 110mm, can be connected to the external water bath system control temperature (water Bath is optional)
Interface	A TCP/ IP-based (100 Mbit, RJ45) Ethernet interface, which can be connected to the computer
System protection maximum torque	Peak torque 1.5N·m, device has torque self-protection module
Test type	Static stress growth test and dynamic rheological curve test can be carried out, depending on the rheological properties to be measured
Main control computer	It adopts dedicated software to control rheometer test operation, data collection, processing and storage
Software	Standardized or customized test speed setting can be carried out according to requirements, and automatic operation of predefined test programs can be predefined; the program automatically collects test data, displays torque, speed, time and temperature in the measurement process in real time, draws rheological curve and stores test results; export test data files in Excel format
Size	350x284x710mm
Weight	30kg
Power supply	220V, 50Hz

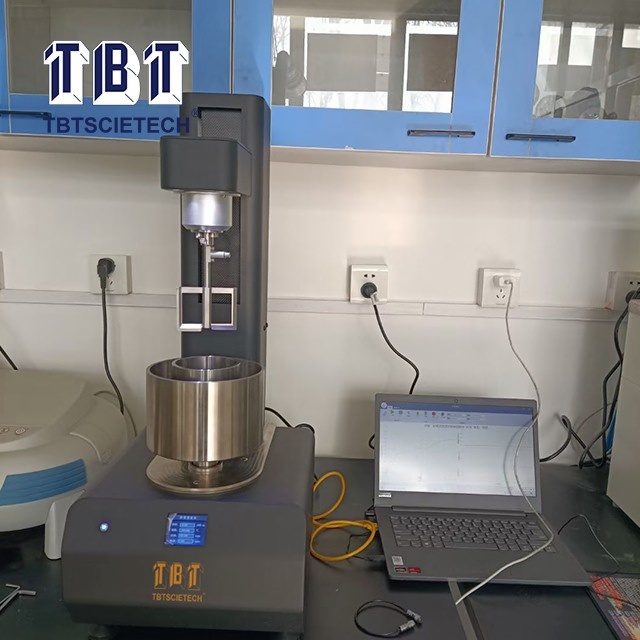

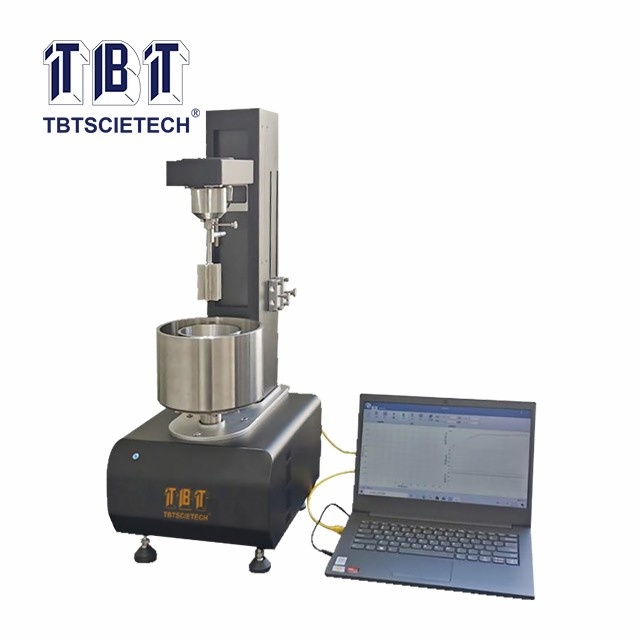

Cement Mortar Rheometer TBTLBY-III
