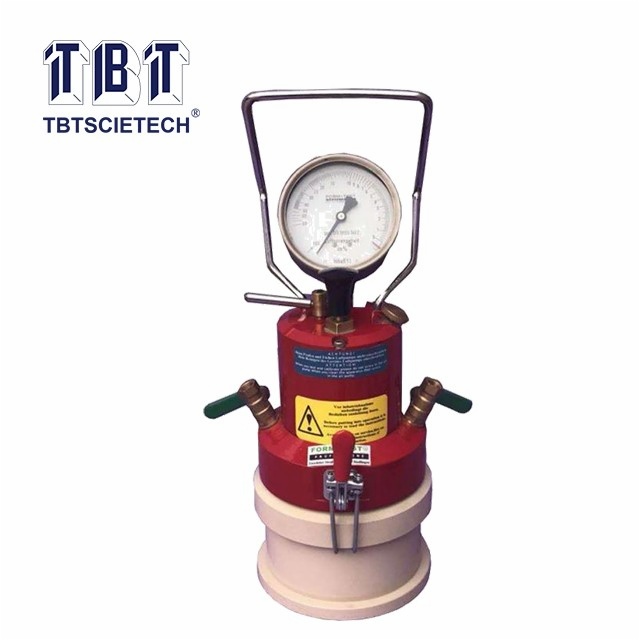

    Cement Mortar Air Content Meter TBT-B2030

    Cement Mortar Air Content Meter
    Item Code:TBT-B2030 Features:TBT-B2030 is used for the determination of the total air content in cement paste, mortar and masonry cement. These meters have a pressure chamber, in which a defined pressure is generated.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-B2030 is used for the determination of the total air content in cement paste, mortar and masonry cement. These meters have a pressure chamber, in which a defined pressure is generated. By opening the overflow valve, the pressure in the chamber is equalized within the sample container, which is filled with mortar. The pressure drop is a measurement of the air content present in the mortar.

    1.Direct reading, high precision;
    2.Advantage technology: adopts German technology;
    3.Applicable mortar range: ordinary mortar, CA mortar;

    Volume

    1L

    Air content range

     0-100%

    Accuracy

    0-5% is 0.1%,

    6-20% is 0.15%,

    21-100% is 0.2%

    Pressure gauge

    Dustproof, waterproof, explosion-proof

    Main unit material

    Magnesium aluminum silicon alloy

    Buckle

    Push type

    Weight

    6kg
