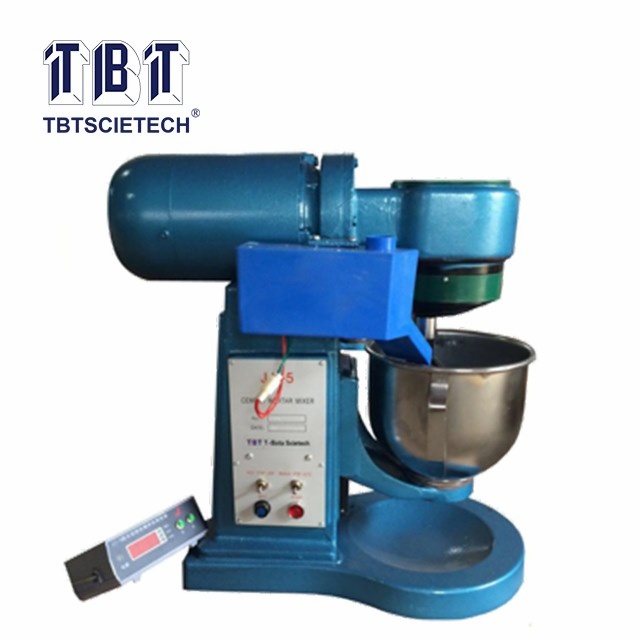

    Cement Mortar Mixer TBTJJ-5

    Cement Mortar Mixer
    Item Code:TBTJJ-5 Features:TBTJJ-5 cement mortar mixer is used to mix cement, water and sand to prepare cement paste or mortar for making specimen for the normal consistency and setting time tests.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTJJ-5 cement mortar mixer is used to mix cement, water and sand to prepare cement paste or mortar for making specimen for the normal consistency and setting time tests.



    EN 196-1

    Width of mixing blade

    135mm

    Mixing bowl capacity

    5L

    Speed of mixing blade



    Rotation

    Revolution

    Low speed

    140 ± 5r/min

    62 ±5r/min

    High speed

    285 ±10r/min

    125 ±10r/min

    Power supply

    220VAC, 50/60Hz, 370W
