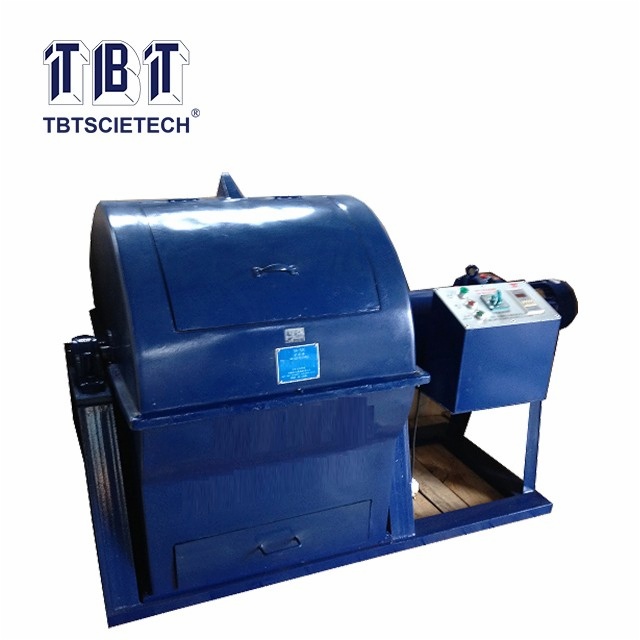

Cement Test Mill TBTSM-500

Item Code:TBTSM-500 Features:TBTSM-500 Cement Test Mill is used to grind cement clinker and other material in the laboratory.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTSM-500 Cement Test Mill is used to grind cement clinker and other material in the laboratory.

Inside dia. of barrel and length

φ500×500mm

Grinding mediums

100kg

Material size

<7mm

Loading capacity

≤5kg

Barrel speed

≈48r/min

Grinding time

≈30min

Net weight

≈300kg
