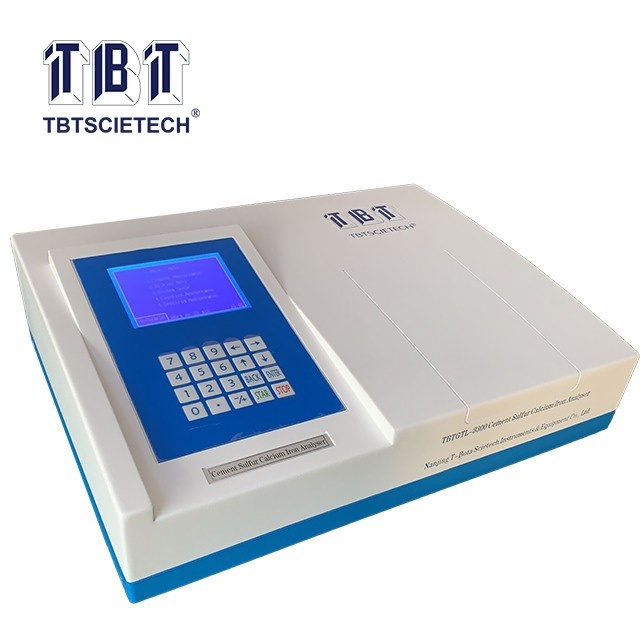

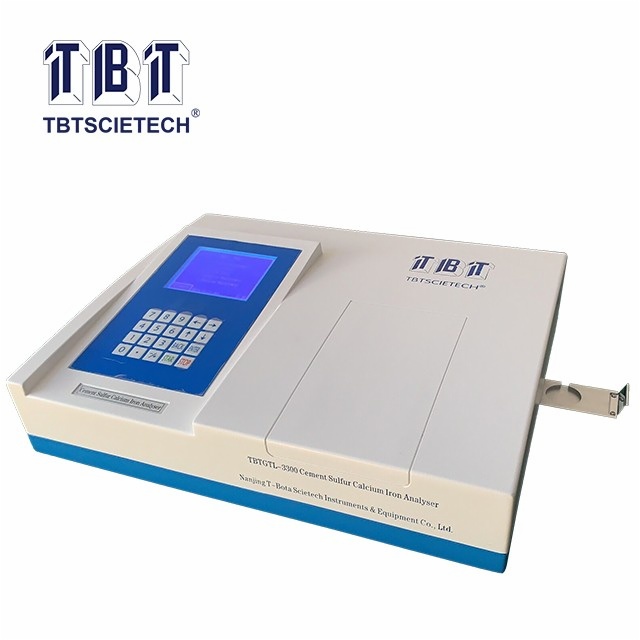

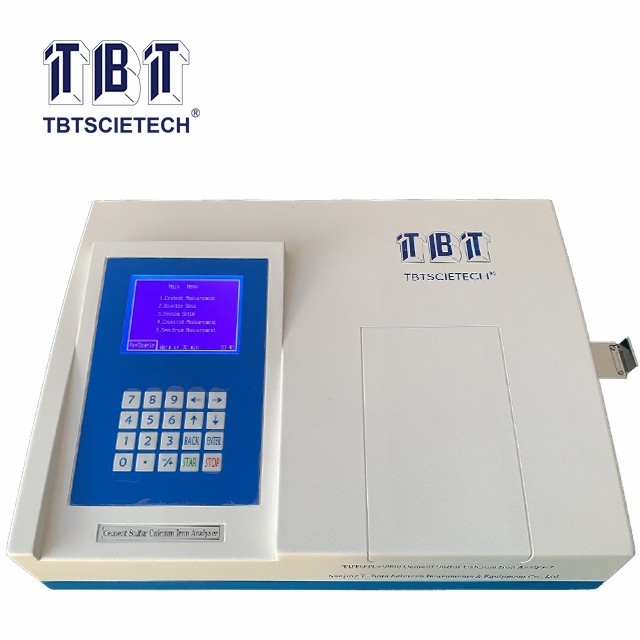

Sulfur Calcium Iron Analyser TBTGTL-3300

  • Sulfur Calcium Iron Analyser
  • Sulfur Calcium Iron Analyser
  • Sulfur Calcium Iron Analyser
Item Code:TBTGTL-3300 Features:TBTGTL-3300 Sulfur Calcium Iron Analyser is a new type of microcomputer table instrument which adopts pure physical analysis method. Used in cement factory, it can quickly measure the percentage content of SO3, CaO, Fe2O3 in raw material, clinker, cement, gypsum and so on in 30 seconds.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTGTL-3300 Sulfur Calcium Iron Analyser is a new type of microcomputer table instrument which adopts pure physical analysis method. Used in cement factory, it can quickly measure the percentage content of SO3, CaO, Fe2O3 in raw material, clinker, cement, gypsum and so on in 30 seconds. Because of its fast analysis speed, it can monitor the change of the three components in the production process in real time, easy to adjust the ratio of raw materials in time, and lay a solid foundation for the production of qualified clinker and cement. In particular, the percentage of CaO in the finished cement is determined to be a qualified cement manufacturer. It can create considerable economic benefits for cement enterprises by neither using much nor using much clinker.
By determining the percentage content of SO3 and CaO in the finished cement, the cement manufacturer can predict the strength of cement and the setting time of concrete mixed with this kind of cement.
1.Large LCD display, English menu prompt operation, intelligent error alarm prompt, easy to use;
2.Analysis accuracy: Standard deviation SO3≤0.04%, CaO≤0.10%, Fe2O3≤0.05%;
3.The analysis speed is fast, and the percentage content of SO3, CaO and Fe2O3 is given in 30 seconds;
4.No chemical reagents, no waste discharge, no radioactive source, low power consumption.

Analysis range

SO3, CaO, Fe2O3:0.01%~100% can be adjusted

Width of analysis range

SO3 (CaO, Fe2O3)% max~SO3 (CaO, Fe2O3)% min <15 CaOmin,

selected by the method of defining working curve

Permissible error

SO3: +0.11%, CaO: +0.18%, Fe2O3: +0.10%

System analysis time

30 x N seconds (n is a natural number), the recommended value is 60 seconds.

Analysis accuracy

SO3 < 0.04, CaO < 0.10 Fe2O3 < 0.05

Temperature stability

Absolute drift: Delta SO3= 0.10 Delta CaO= 0.10 Delta Fe2O3%= 0.10% in the range of 5~40℃

Conditions of use

Ambient temperature: 5~40℃;

Relative humidity: <85% at 30℃

Power supply

220V, 50Hz

Power consumption

Less than or equal to 50W

Corollary equipment

One piece tablet press
