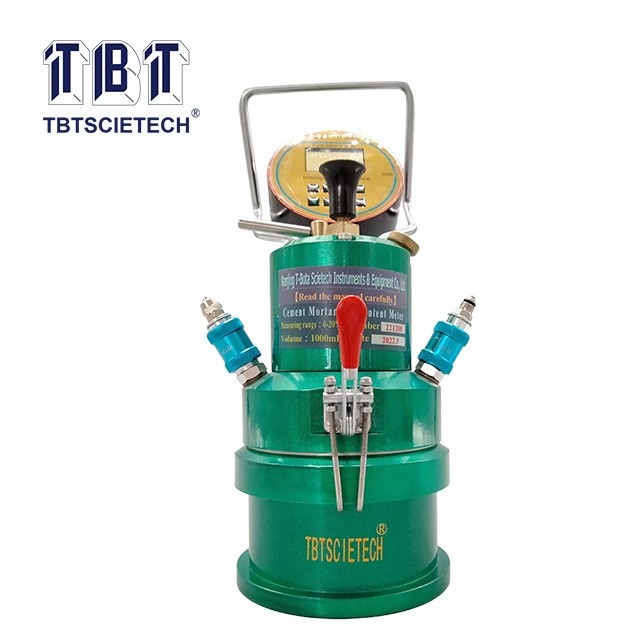

Cement Mortar Air Content Meter(Digital Display) TBTCA-1L

Item Code:TBTCA-1L Features:TBTCA-1L is used for the determination of the total air content in cement paste, mortar and masonry cement.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTCA-1L is used for the determination of the total air content in cement paste, mortar and masonry cement.

1.Direct reading via digital display with high precision;
2.Advantage technology: built-in pump, hand sliding valve operating, dual lines pressure gauge.

Volume

 1L

Air content range

 0-10%

Accuracy

for 0-10% accuracy 0.005% (actual error 0.01%)

Pressure gauge range

0.1Mpa (Overpressure operation prohibited)

Pressure gauge accuracy

 0.0005Mpa

Pressure gauge material

high density aluminum alloy

Pressure gauge features

dust-proof, explosion-proof

Buckle

push type

Weight

about 6KG
