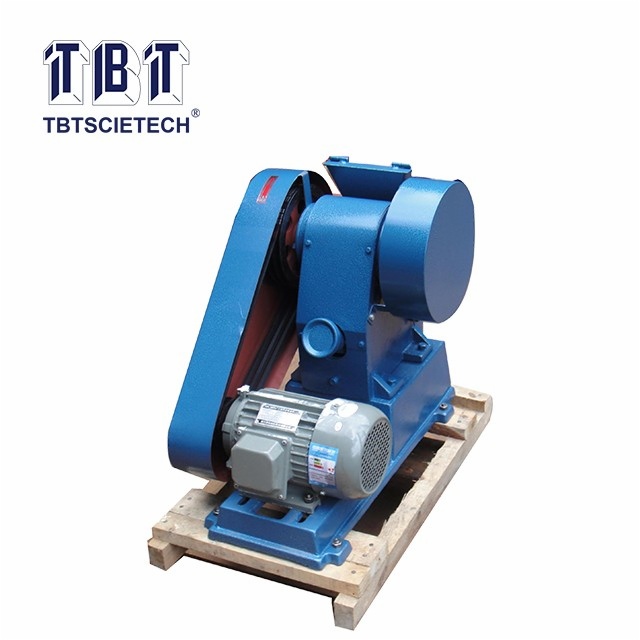

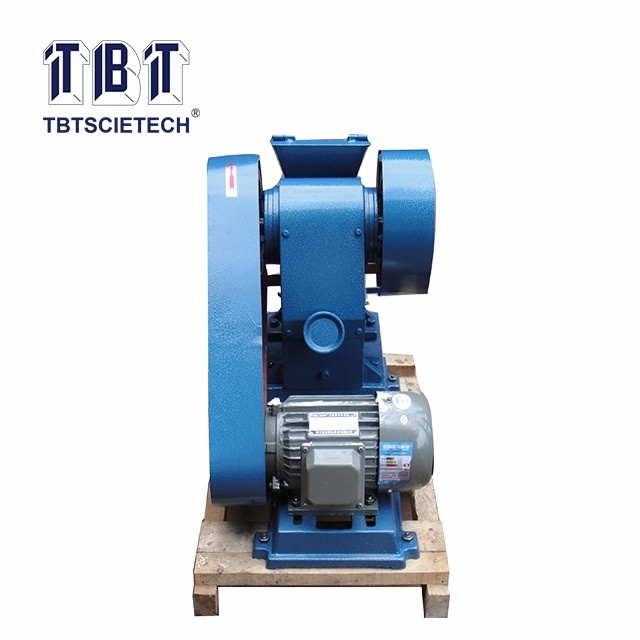

Laboratory Jaw Crusher TBTPE60x100

  • Laboratory Jaw Crusher
  • Laboratory Jaw Crusher
Item Code:TBTPE60x100 Features:TBTPE60x100 jaw crusher is mainly used for the medium and fine crushing of hard ores and rocks in metallurgy industry, mine industry, chemical industry, cement industry, construction industry, refractory materials industry and ceramic industry and other sectors.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTPE60x100 jaw crusher is mainly used for the medium and fine crushing of hard ores and rocks in metallurgy industry, mine industry, chemical industry, cement industry, construction industry, refractory materials industry and ceramic industry and other sectors.
Used to crush aggregates, core samples and similar materials when a reduction in sample size is necessary.
Various jaw opening of 60x100 / 100x150 / 125x150 / 150x250 / 200x300 / 250x400 / 400x600 / 500x750 mm can be selected.



1.The jaw plates are cast with high manganese steel that has perfect abrasion resistance;
2.The movement of the jaws can be adjusted according to different requirements;
3.The crushed sample can be further reduced using the hammer-mill for laboratory.

Model

TBTPE60*100

Feeding opening

60x100mm

Max Feeding Size

45mm

Output material Size

5~15 mm

Spindle Speed

660RPM

Production Rate

100~400Kg/h

Approx. Weight

100kg
