    Cement Autoclave TBTYZF-2

    • Cement Autoclave
    • Cement Autoclave
    • Cement Autoclave
    • Cement Autoclave
    Cement Autoclave
    Cement Autoclave
    Cement Autoclave
    Cement Autoclave
    Item Code:TBTYZF-2 Features:TBTYZF-2 autoclave is used for determining cement soundness of MgO & CaO to evaluate the stability of cement.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

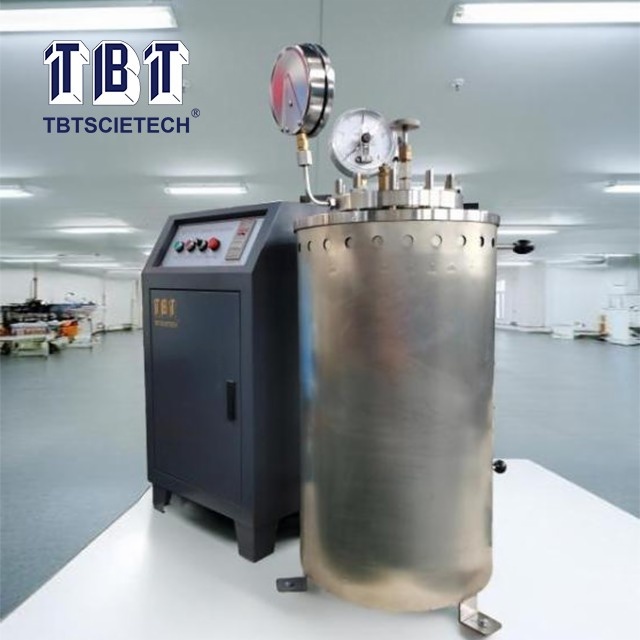

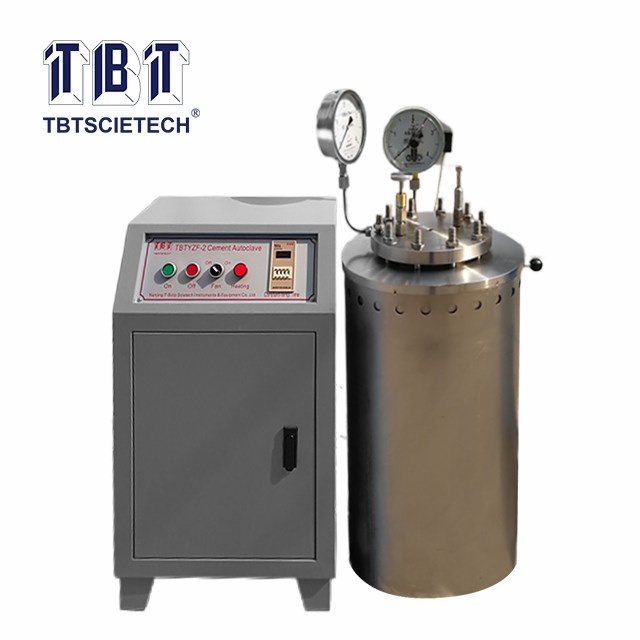

    TBTYZF-2 autoclave is used for determining cement soundness of MgO & CaO to evaluate the stability of cement.
    It Consists of a pressure gauge, pressure regulator, time setter, control switches safety valve and specimen rack.

    ASTM C151, AASHTO T107

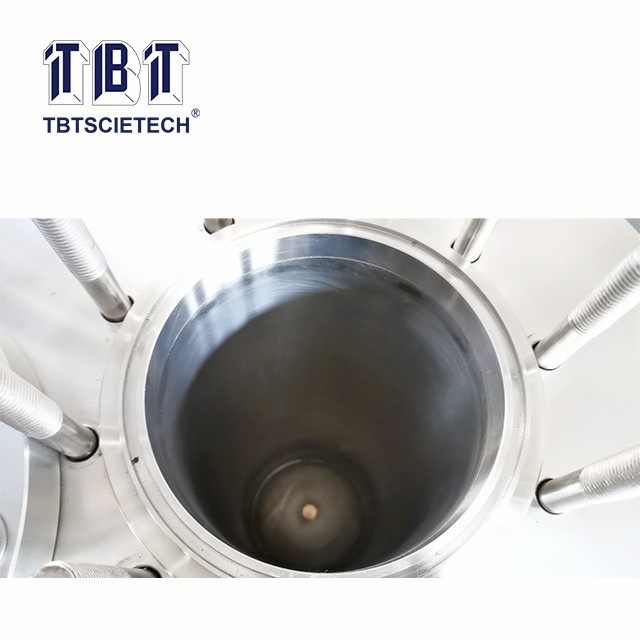

    1.The vessel material adopts high quality stainless steel resistant to high temperature, high pressure and water vapor;

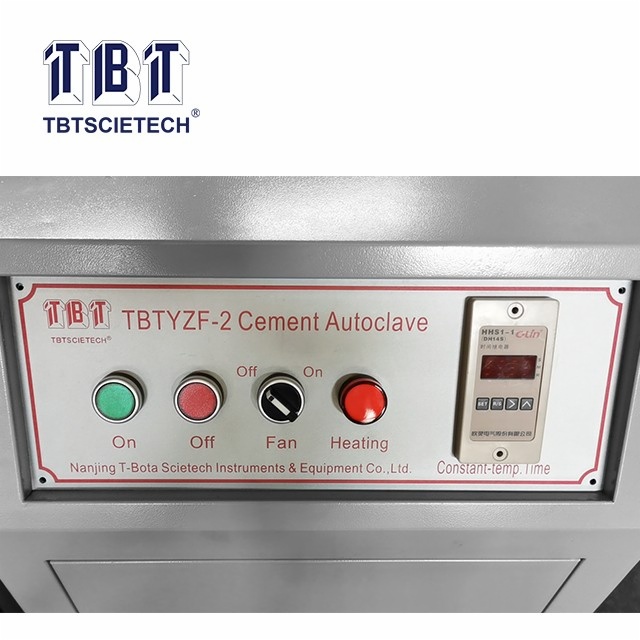

    2.Easy operation control panel.

    Vessel volume

    8L

    Vessel inside diameter

    Φ149mm

    Max working pressure

    2Mpa (adjustable)

    Standard pressure loading time (0 ~ 2±0.05Mpa; room temp.~215.7±1.3 ℃)

    45~75min

    Automatic controlled Pressure range for set

    ≯±0.05Mpa

    Holding time setting

    3h

    Safe temperature setting

    220℃

    Power supply

    220V, 50Hz, 1800W
