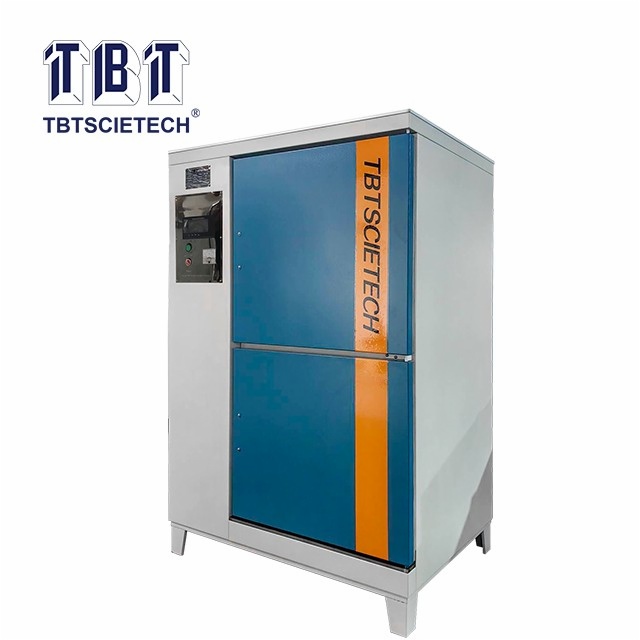

    Constant Temperature and Humidity Curing Cabinet HBY-40B

    Constant Temperature and Humidity Curing Cabinet
    Item Code:HBY-40B Features:HBY-40B curing cabinet is designed for curing concrete and cement specimens for strength test in the laboratories of cement plants, concrete mix centers, colleges and universities concerned.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    HBY-40B curing cabinet is designed for curing concrete and cement specimens for strength test in the laboratories of cement plants, concrete mix centers, colleges and universities concerned.

    ASTM C109, ASTM C511

    1.Rigid frame and stainless steel working chamber;
    2.Large LCD screen.

    Effective volume

    0.39m³/390liter; 59x57x118cm

    40x40x160mm, 108pcs

    100x100x100mm, 72pcs

    150x150x150mm, 54pcs

    Set temperature & accuracy

    20℃±1℃

    Temperature & humidity control mode

    Automatic

    Humidity

    ≥95%

    Refrigeration & heating power

    138W & 800W

    Power supply voltage

    220V, 50Hz

    Dimension(LxWxH)

    100x70x153cm

    Net weight

    Around 140kg

    Shelf

    6 pieces big shelves
