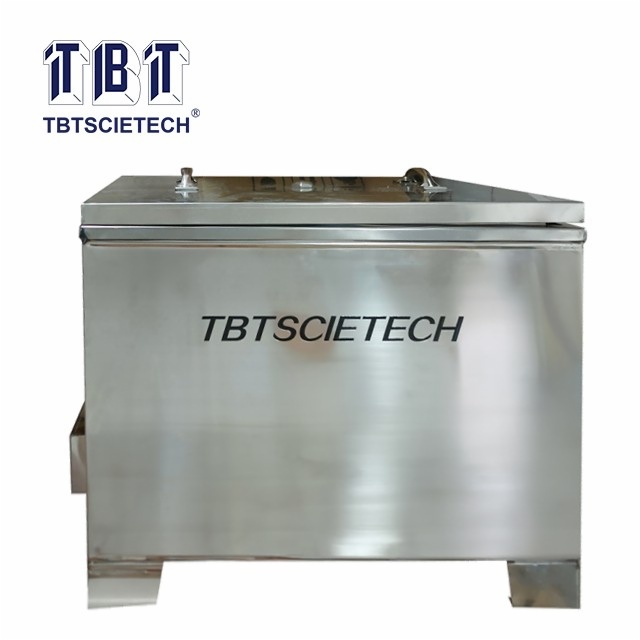

Steam Tank for Cement TBTFZ-31A

Item Code:TBTFZ-31A Features:TBTFZ-31A consists of lid, outer and inner tanks, grid, insulation course, heaters, tube union, water tap, watertight seal, guard and electric control box.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTFZ-31A consists of lid, outer and inner tanks, grid, insulation course, heaters, tube union, water tap, watertight seal, guard and electric control box. It is one of the equipment for testing soundness(expansion) of cement using both Le Chatelier soundness and pat test method. It can control and maintain water temperature automatically through 2 groups of heater. It is one of the necessary device in the labs of cement plants and research units concerned.

Max temperature

100℃

Nominal volume

31L

Time for water temperature rise (20℃ to 100℃)

30±5 min.

Heating time

0-3.5 h

Heaters power

220VAC, 50Hz
