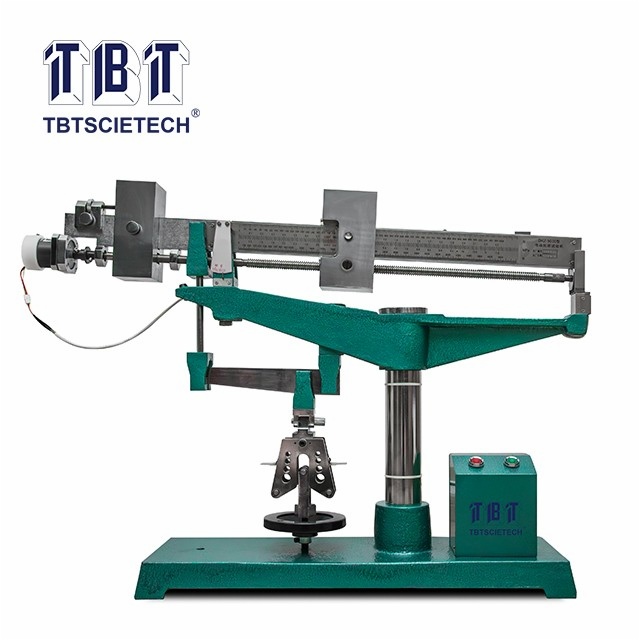

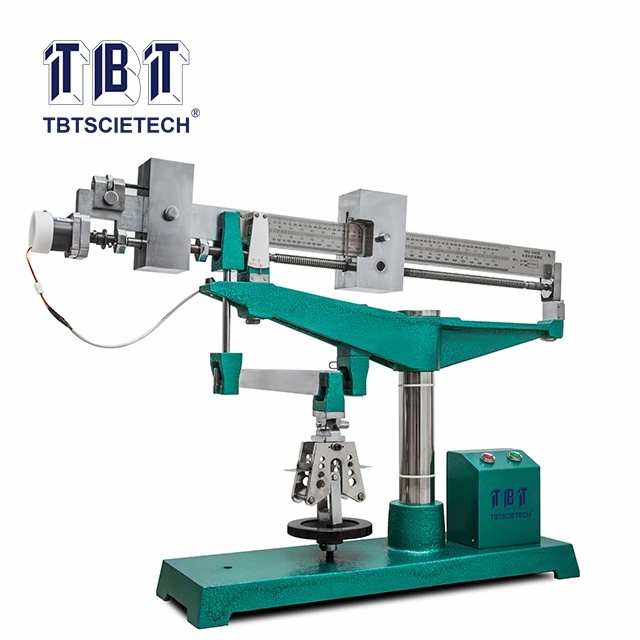

    Electrical Flexure Testing Device TBTDKZ-5000

    • Electrical Flexure Testing Device
    • Electrical Flexure Testing Device
    Electrical Flexure Testing Device
    Electrical Flexure Testing Device
    Item Code:TBTDKZ-5000 Features:DKZ-5000 is used for flexure strength test of cement specimen other nonmetallic material.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    DKZ-5000 is used for flexure strength test of cement specimen other nonmetallic material.

    Double lever output ratio

    (bottom beam distance ratio)

    50: 1 (Maximum)

    Maximum output

    Double lever 5000N

    Loading speed

    Double lever 50N / s

    Flexture fixture

    Loading roller and support roller diameter φ10mm

    Support roll distance 100mm

    Spacing of draw plate 46mm

    Relative error of displayed value

    <± 1%

    Sensitivity

    Adjust lever balance for double leverage, and load 1g at the lever level 500mm away from the fulcrum.

    Lever angle> 1/50

    Overall dimensions (L *W * H)

    1080*250*780mm

    Net weight

    Around 85kg
