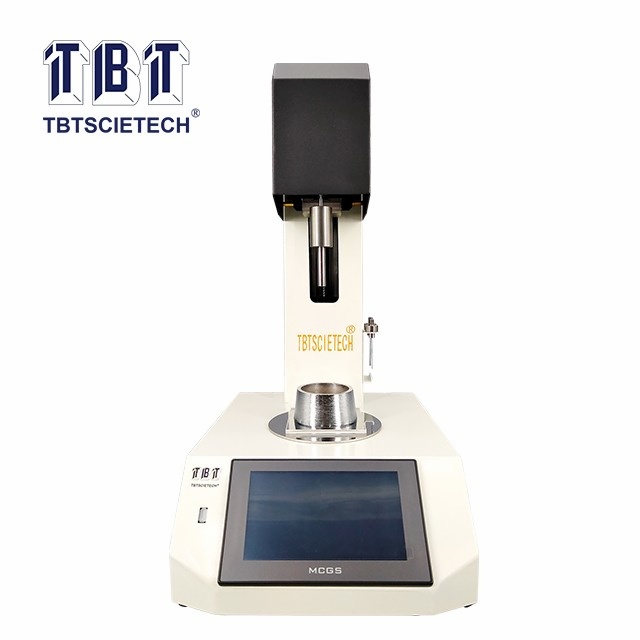

Semi-Automatic Vicat Apparatus TBTVC-A

  • Semi-Automatic Vicat Apparatus
  • Semi-Automatic Vicat Apparatus
Item Code:TBTVC-A Features:TBTVC-A is mainly used to test the standard consistency water requirement and setting time of cement paste.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTVC-A is mainly used to test the standard consistency water requirement and setting time of cement paste.
This instrument is mainly suitable for Portland cement, ordinary Portland cement, slag Portland cement, fly ash Portland cement, composite Portland cement and other varieties designated cement.
The cement standard consistency net slurry has a certain resistance to the sinking of the standard test rod.
By testing the penetration of cement paste with different water content, the amount of water needed to be added to the cement standard consistency paste is determined.

EN 196-3

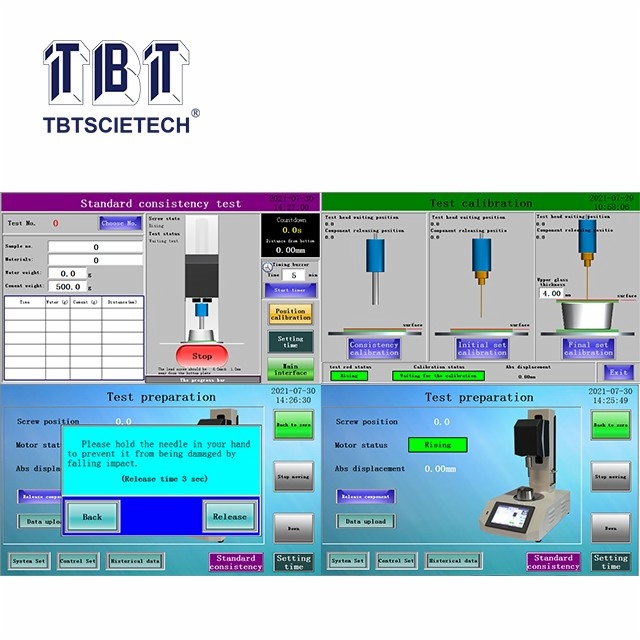

1.Automatic calibrating and data saving automatically;
2.One-key operating, automatic penetration;
3.Precise control;
4.USB port for transfer test data to PC, then can print.

Time control

Display resolution: 0.1s

control precision: ≤±0.1s

Displacement

Adopt high precision LVDT displacement sensor, without friction when needle dropping

Measuring range 0~50mm;

display resolution: 0.01mm;

Relative displacement accuracy: ≤±0.1mm

Data storage

200 groups

Data interface

USB

Power Supply

220VAC, 50Hz

Power

Max. 40W

Dimension

Around 400x310x575mm
